Klereo Kompact - pH target value

Klereo Kompact installation manual V 3
32
5.10.2 pH target value
The usual target pH is between 7.2 and 7.4. It must not be too far from the balanced pH
value. It may be necessary to correct the TAS (easier to modify) or the TH in the pool to get
closer to the balanced pH. To adjust the pH parameters, go to the menu:
Klereo
Water treatment
pH
Select the corresponding pH corrector, go then in the menu « target » to enter the pH target
value as well as the Min and Max limits.

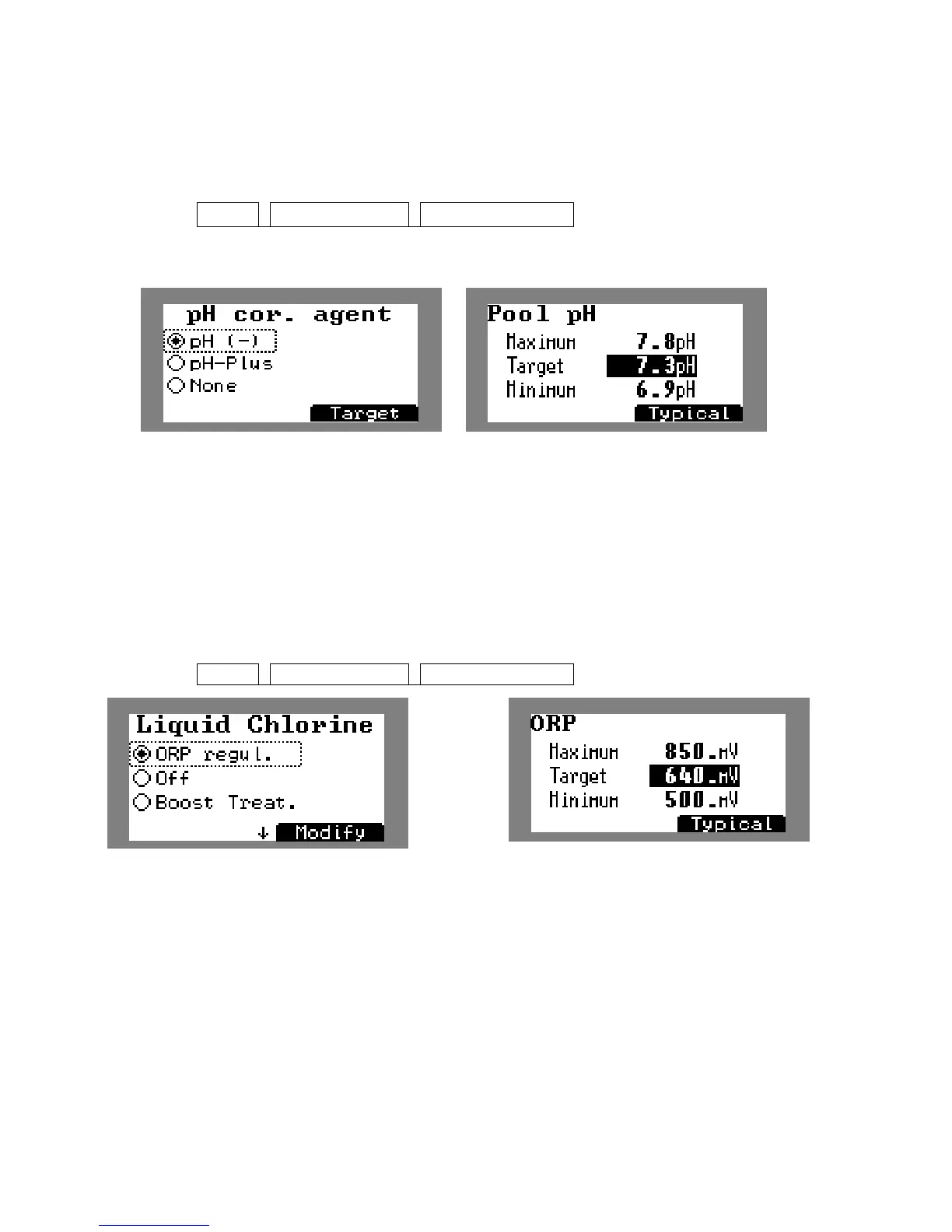

Figure 45. pH settings screens
5.10.3 Disinfectant target value
a. In case of liquid Chlorine and Bromine:
When doing the installation, the measured Chlorine concentration must be between 1 and
3mg/l and the Bromine one between 1 and 2 mg/L.
Klereo do not measure free Chlorine but the ORP value. To increase or decrease the
disinfectant concentration, modify the ORP target value accordingly.
To adjust the ORP parameters, go to the menu:
Klereo
Water treatment
Disinfectant
Press the screen selection key below « Modify » in order to access the settings of the target
value as well as Min and Max limits.
Figure 46. ORP settings screens
b. In case of Klereo Salt and active Oxygen:
Disinfection is regulated taking into consideration pool volume and water temperature.
This regulation mode is adapted to the majority of pools, but in some cases it is necessary to
modify the treatment level by reducing or increasing it.
We advise to measure the disinfectant concentration 2 or 3 days after completing installation
and to make necessary adjustments.
- Chlorine concentration (in case of Salt Chlorinator) must be between 1 and 3mg/l.
