Drilled tank plug
Plug fixed onto the cane
with 2 little screws
Cane screwed to the tank

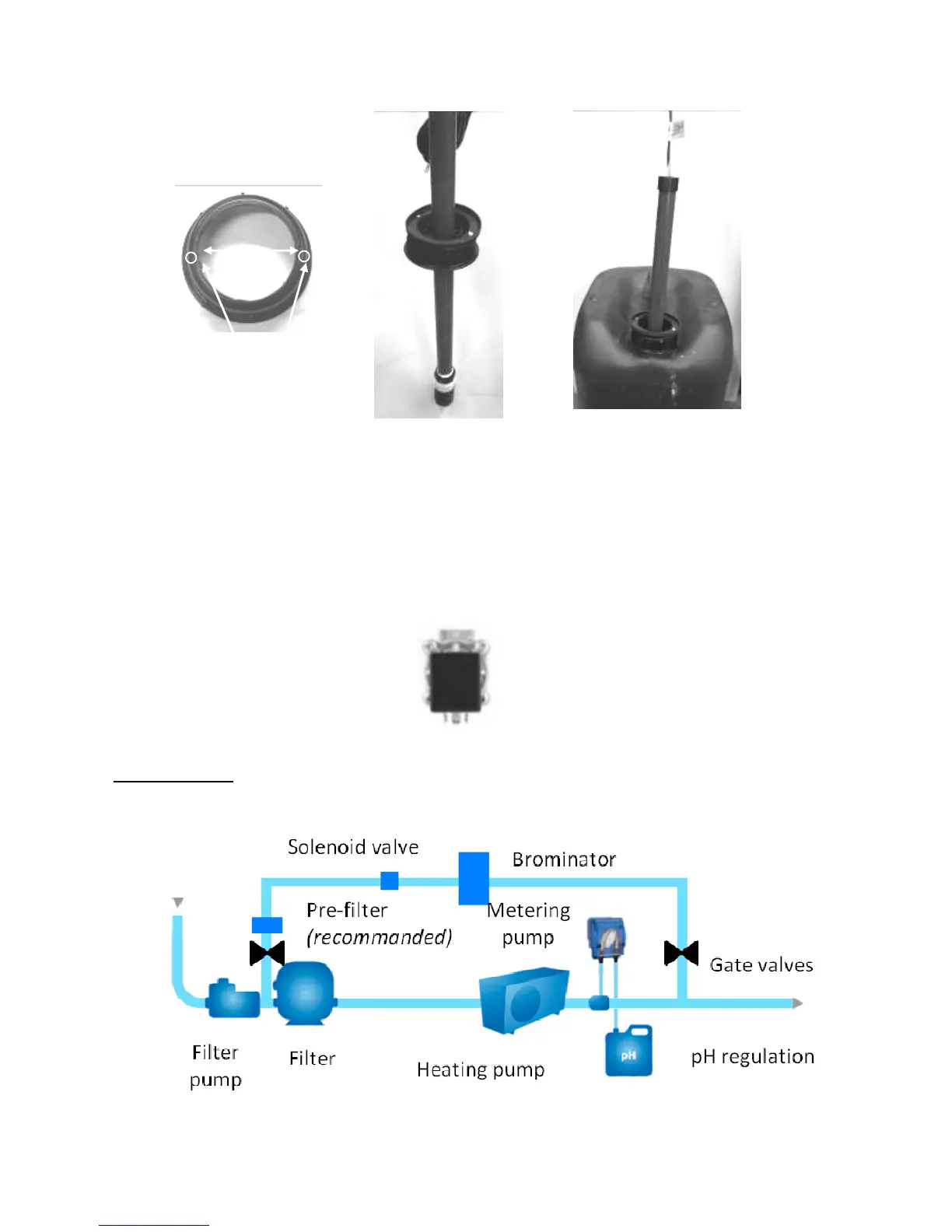

Figure 20. Mounting the drawing up cane
3.8 Installing the solenoid valve for Kompact with Bromine or Chlorine
tablets
The Kompact for Bromine regulates disinfection by opening a solenoid valve letting the water
going through a brominator filled with bromine or a chlorinator filled with Chlorine tablets.
There are 2 possibilities to install the Bromine regulation kit.
Figure 21. Solenoid valve.
First possibility:
In order to avoid the valve clogging, install a by-pass after the filter and before the backflow
as shown on the diagram below.
Figure 22. First possibility for installing the Bromine regulation kit
32mm
2 lithe holes to
insert fixing screws
Respect the direction
identified by the arrow on
the brass body
