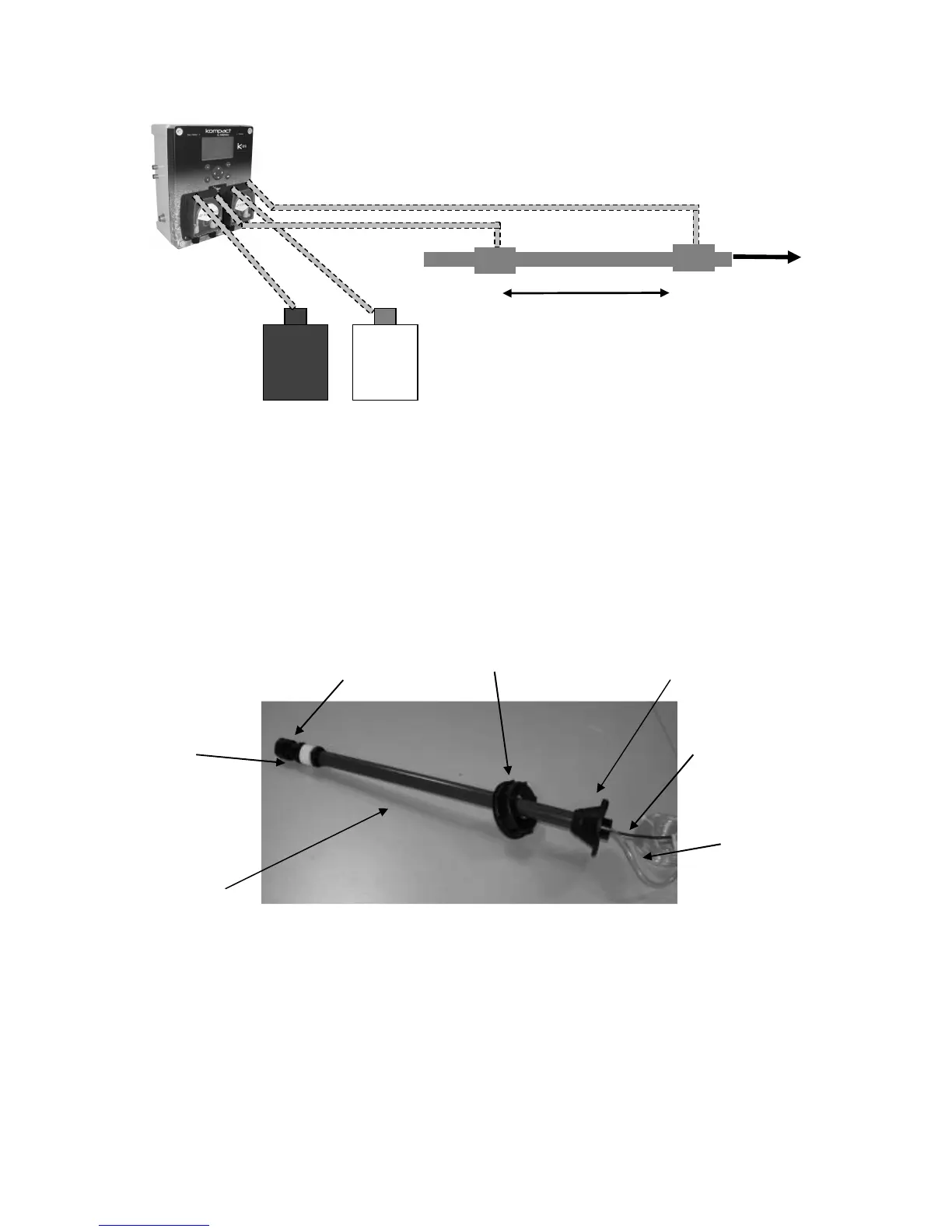

Figure 18. Mounting the metering pumps and empty tanks detectors
The holding collars used for injecting products must be placed at the end of the filtering circuit
before the backflow.
Maximum distances between Klereo control box unit and the tanks or the injection points are
2m maximum.
Minimum distance between 2 injection points is 40cm.
A drawing up cane with empty tank level detector is optional.
Figure 19. Drawing up cane with empty tank level detector
When installing the tank empty detectors, first drill a 32mm diameter hole into the plug of the
disinfectant tank. Slide the plug from the bottom of the cane, drill 2 holes onto the plug to
match the 2 holes onto the conical black collar and screw it onto the plug. Then screw the
plug onto the tank.
