Klereo Kompact installation manual V 3
21
4.6 Additional possible connections for the Aux B double relay output.
The auxiliary equipment must be connected either to the output K – KN or to the output M1
and M2.
The following diagram shows both types of wiring according to the auxiliary equipment
amperage.
The metering pump for the flocculant is optional (Ref. KLPR-PP15). To be connected directly
to the output K et KN.

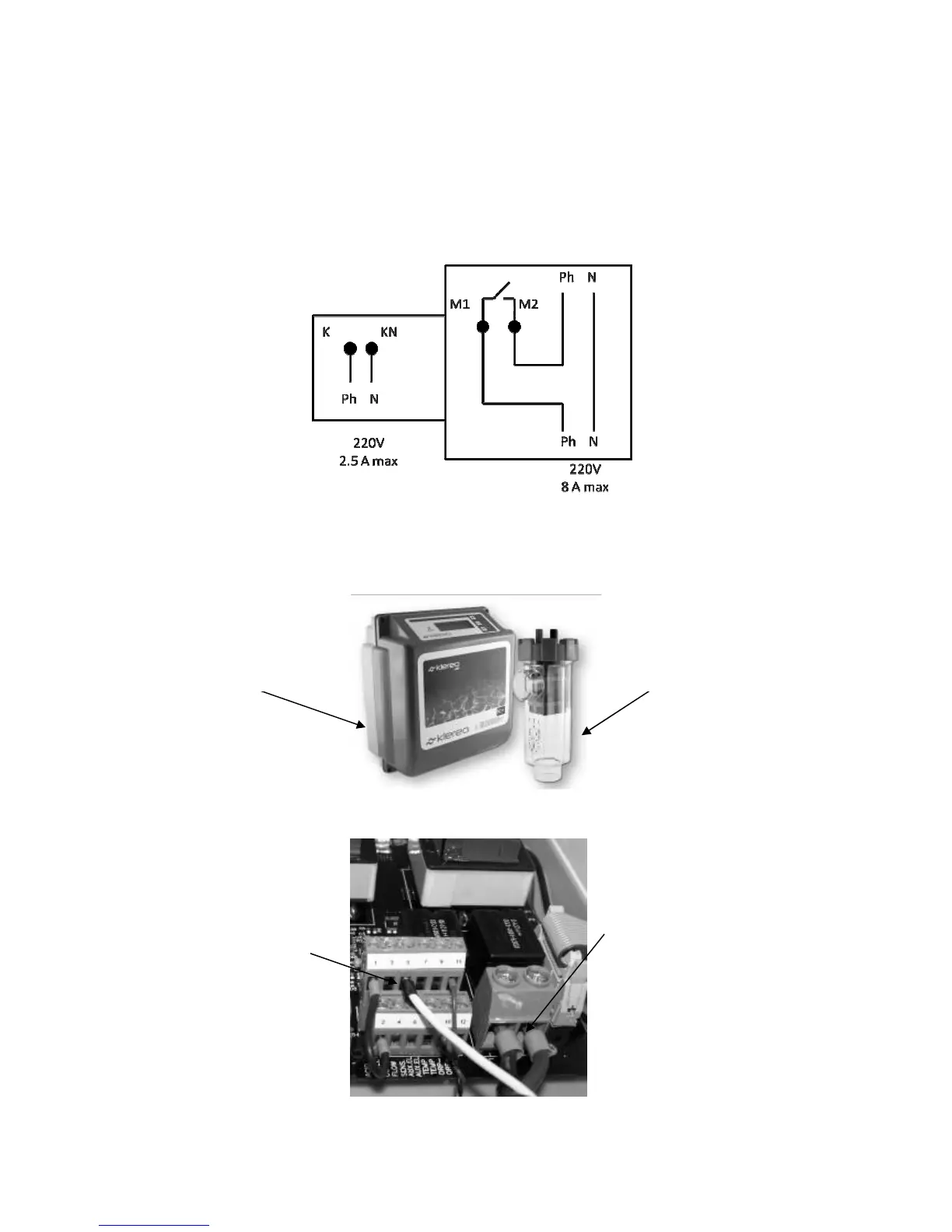

Figure 31. Connecting the double relay output
4.7 Connecting the Salt Chlorinator
4.7.1 Connecting the cell to Klereo Salt
Figure 32. Klereo salt kit contents
Figure 33. Connecting the cell power supply
Connect the gas
detector (white cable)
to N°5 terminal
Connect the cell
power supply red and
black cables. No
cabling order to
respect.
Klereo salt
control box
unit
Salt Chlorinator cell
