65
Loading onto a means of transport and unloading onto
aunit or into a warehouse should be carried out by crane
or forklift, in accordance with health and safety regulations.

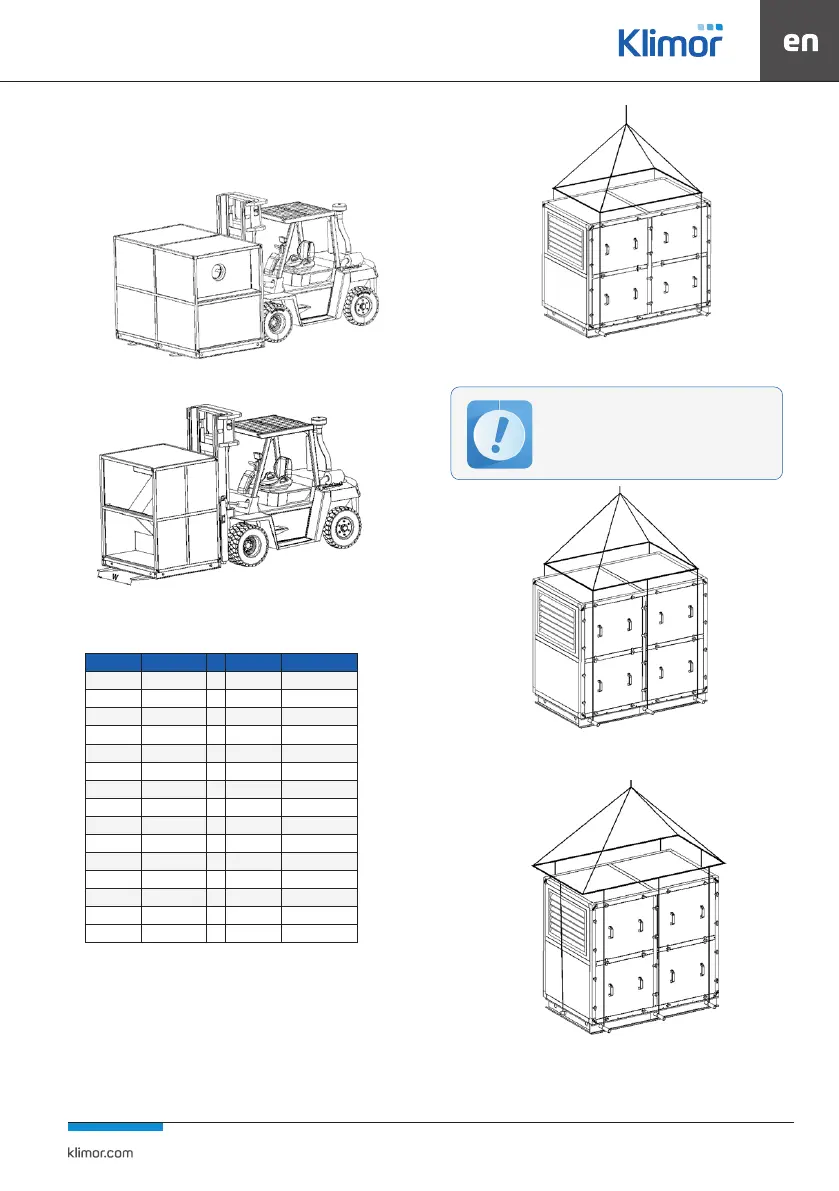

Fig. 4 Transport of the AHU by means of a forklift
Fig. 5 Transport of the AHU by means of a forklift with marked fork spacing
Table 5 Minimum fork spacing during forklift transport
Unit size Min. spacing Unit size Min. spacing
5100 900 5610 900
3200 900 0020 1300
5200 900 0120 1300
0300 900 5320 1300
0400 900 0720 1300
2500 900 0230 1300
3500 900 0530 1300
0600 900 0930 1300
0700 900 0040 1300
5800 900 0050 1300*
8800 900 0060
1300*
0010 900 0070 1300*
5010 900 0090 1300*
5310 900 0001 1300*
4410 900 0021 1300*
During transport (vertical and horizontal), the unit sets
should be secured against contact with the crane ropes by
placing spacers between them so that the housing is not
deformed.
Fig.6 Securing the control panel during vertical transport in case of a complete frame
Fig.7 Securing the control panel during vertical transport in case of a frame with
centre bar
Fig.8 Securing the unit during vertical transport in case of foundation corners at the ends
of the block
When transporting vertically, no parts of the
units that are screwed to each other may be
moved, only the monoblocs.
