66
EVO-S, EVO-H MODULAR AIR HANDLING UNITS
OPERATION AND MAINTENANCE MANUAL

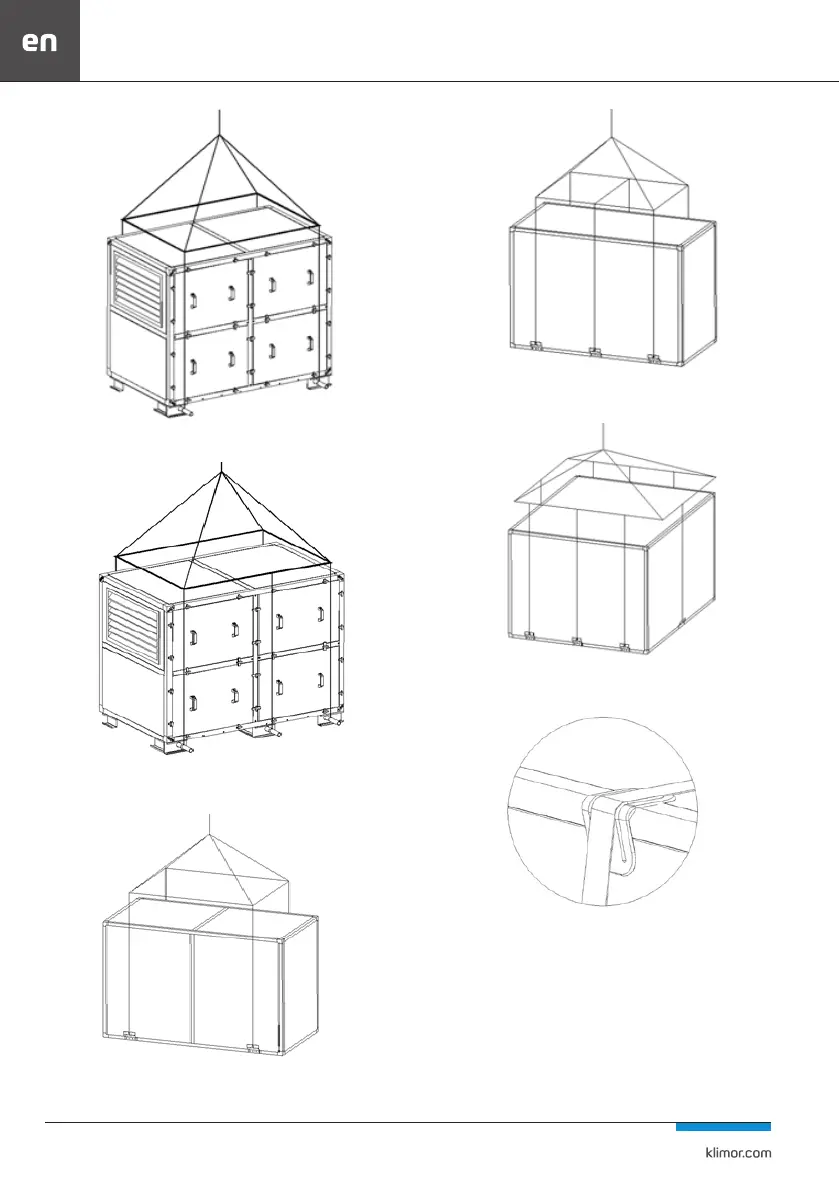

Fig. 9 Securing the unit during vertical transport in case of foundation corners at the
ends of the block
Fig. 10 Securing the control panel during vertical transport in case of foundation cor-
ners in the middle of the block
Fig. 11 Securing the units without a frame
Fig. 12 Securing the units without frame in case of additional mounting in the middle
of the block
Fig. 13 Securing the units without a frame in case of additional mounting in the mid-
dle of the block and along the unit width
Fig. 14 Securing the control unit with transport bracket
In the unit’s frame and in the foundation corners, Ø50 holes
are made to guide the traverse pipe DN40 or to attach it
with hooks and lift it on the belts. In the case of units of siz-
es 0050, 0060, 0070, 0090, 0001 and 0021, a xing point on
the unit width according to Fig. 8 must be used for lifting.
