EVO-S, EVO-H MODULAR AIR HANDLING UNITS
OPERATION AND MAINTENANCE MANUAL

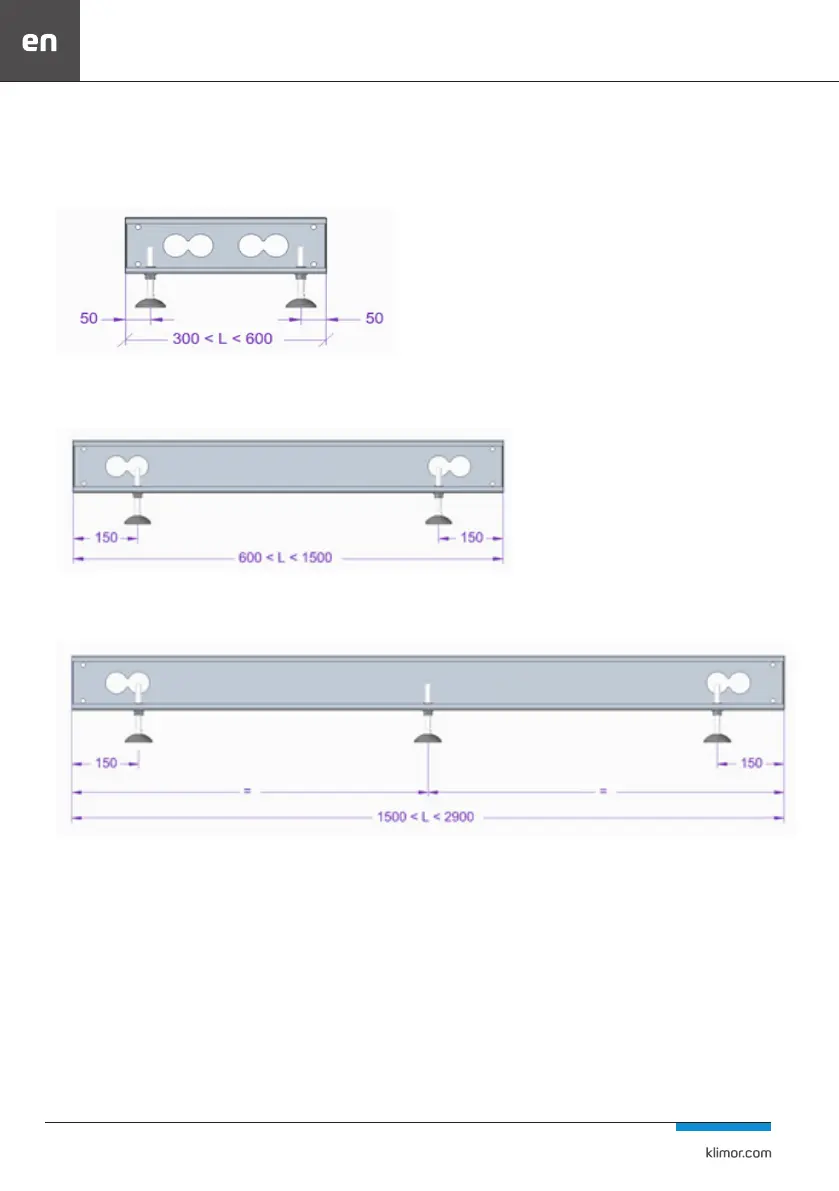

Depending on the length of the frame up to 2900 mm, one of three
cases can be considered:
a) short section
Four adjustment feet 50mm away from the edge of the section
Fig. 31
b) middle section
Four adjustment feet 150mm away from the edge of the section
Fig. 32
c) long section
Six adjustment feet
Fig. 33
For sections with a length of more than 2900 mm, the frame consists
of two longitudinal channels joined together and is a combination
of case b or c.
NOTE: The section must be equipped with adjustment feet directly
before the unit is mounted on the site. For the time of the transport,
the feet are supplied loose inside the casing of the section.
