71
e) for unit sizes 0001 and 0021 according to Fig. 29. 0001 dimensions A: 1400 mm, B:1900 mm. 0021 dimensions A:1700 mm,
B:1600 mm.

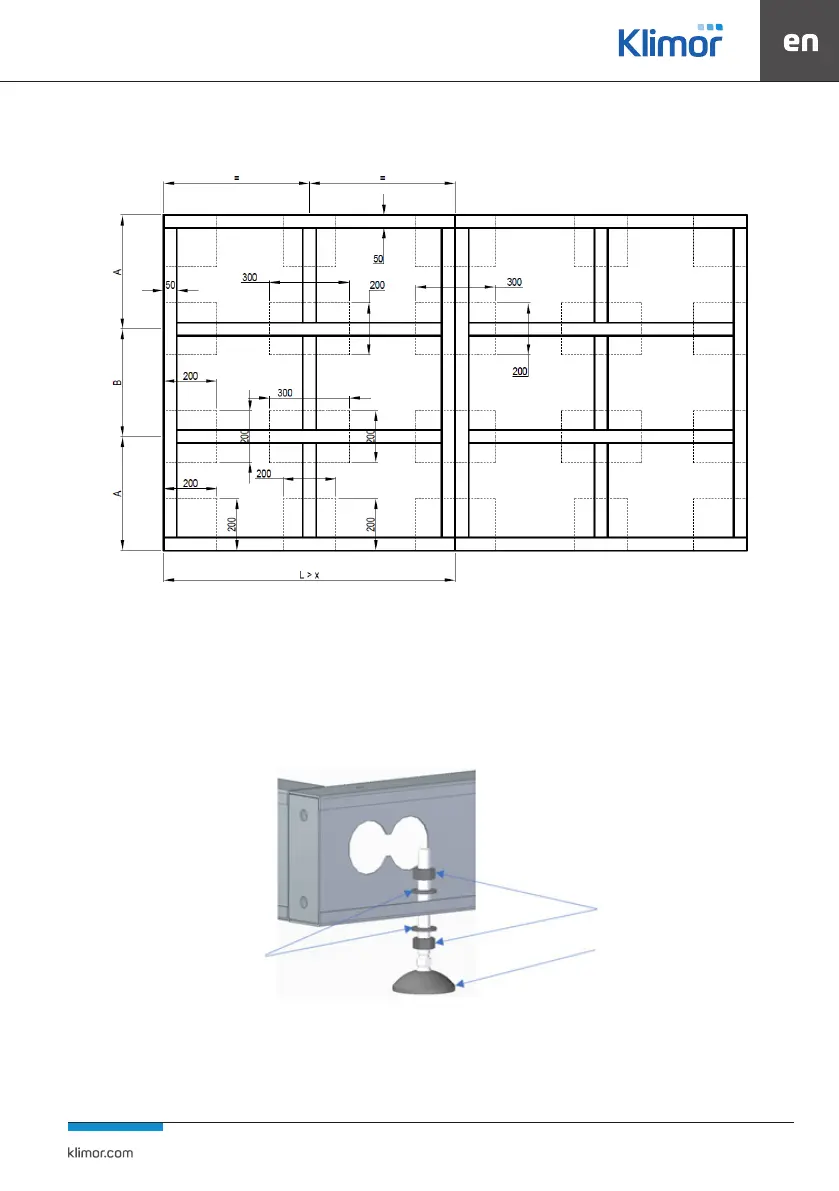

Fig. 29 Frame for AHU units sizes 0001 and 0021
3.4.2 Unit feet
For sections of EVO units that do not exceed a width of 2000 mm, i.e. from size 5100 to 5610, there is an optional possibility to use adjust-
ment feet.
Mounting of the feet should be done according to Fig. No. 30.
The threaded mandrel of the adjustment foot must be threaded through the 13mm diameter hole in the longitudinal channel of the frame,
providing it with at pads and M12 nuts on both sides.
Fig. 30 Assembly of the unit foot
nuts M12
adjustment foot
at pads M12
