70
EVO-S, EVO-H MODULAR AIR HANDLING UNITS
OPERATION AND MAINTENANCE MANUAL

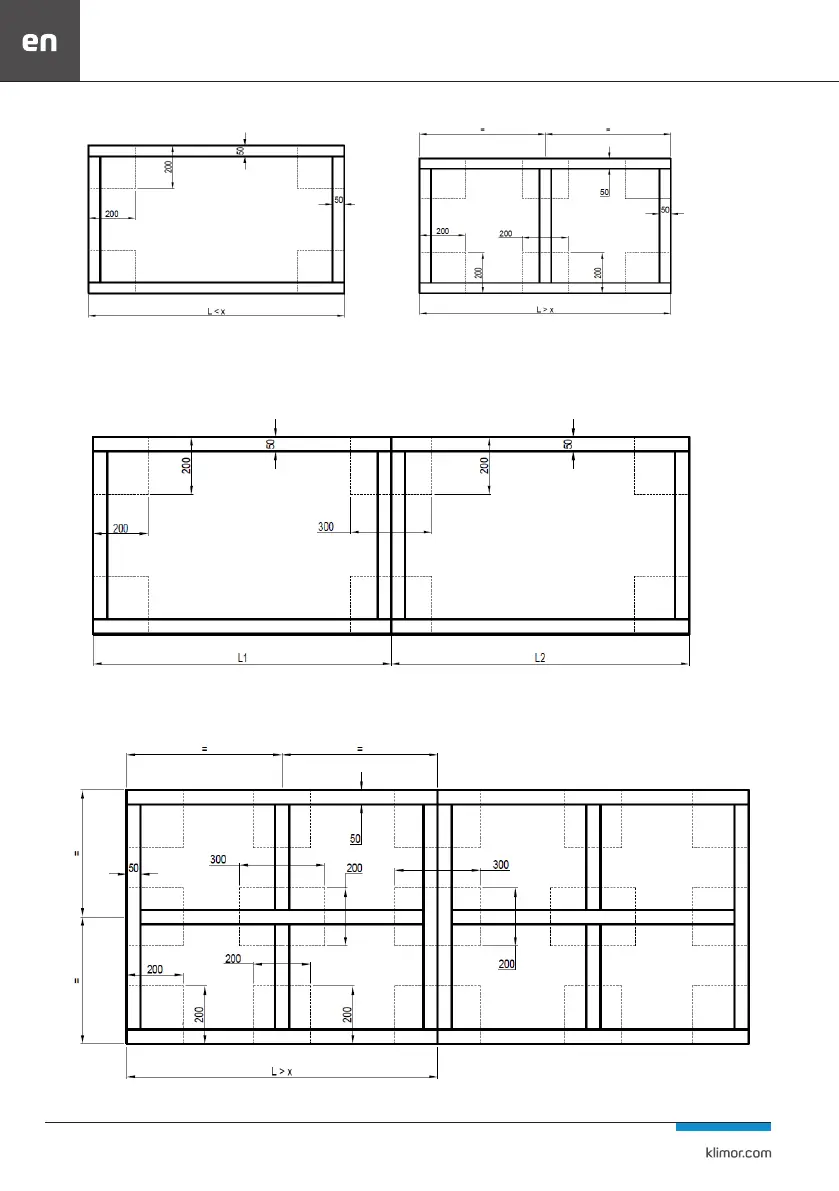

Fig. 25 AHU on a frame Fig. 26 The frame for AHU unit consisting of one monobloc with support
c) for monobloc AHUs and single blocks with a channel prole frame support 200x200mm is required at the external ends of the frame and
in the middle of its length (in place of the central crossbar). However, support surface 300x200 mm is required in places where monoblocs
or unit blocks are connected Fig. No. 27.
Pic. 27 Frame for AHU unit consisting of several monoblocs
d) or air-handling units size from 0230 to 0090 large additional support 300x200 mm should be located at the ends of the blocks in the
place of connecting external frame with the air-handling unit longitudinal element Fig. 28
Fig. 28 Frame for AHU unit sizes 0230 to 0090
