EVO-S, EVO-H MODULAR AIR HANDLING UNITS
OPERATION AND MAINTENANCE MANUAL
This is an additional protection to avoid accidental electrical contact with the housing.

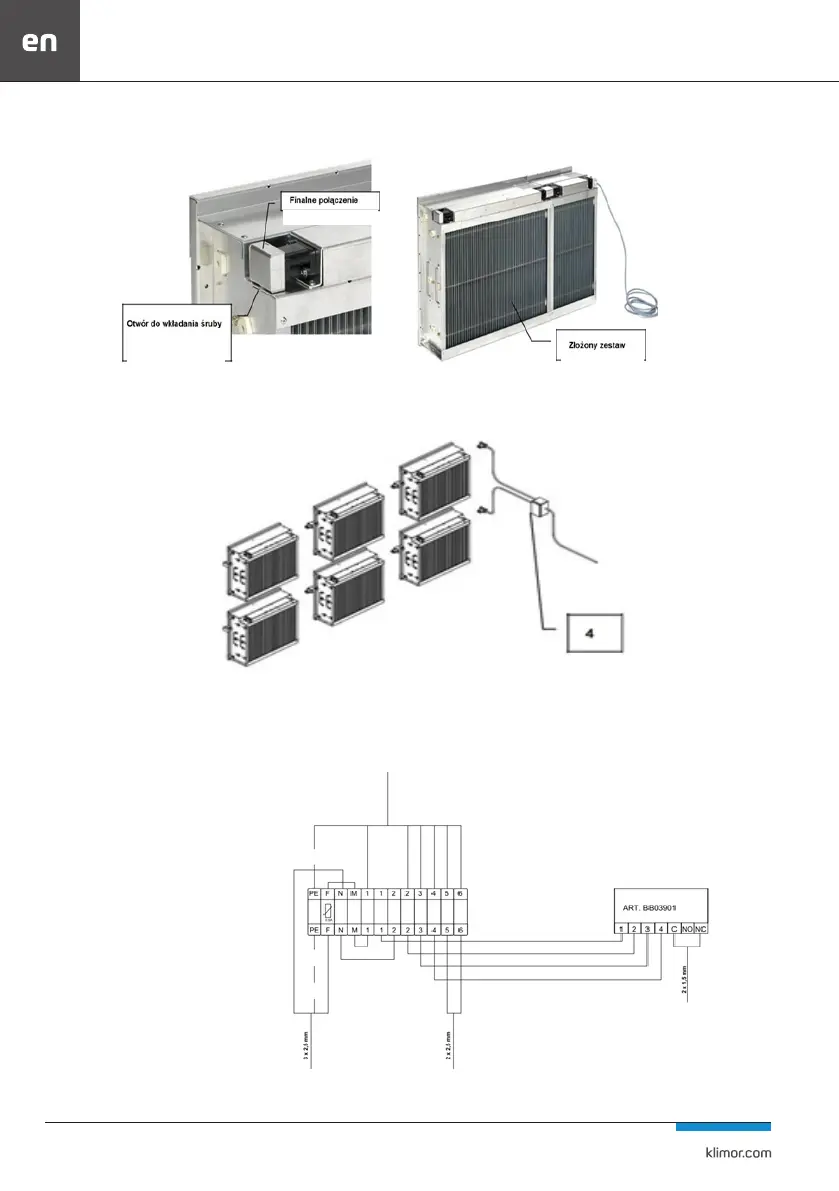

Fig. 54 Complete set
Fig. 55 Installing lters with two rows
When combining two rows of lters, use the junction box (4).
Power supply - 3x2.5mm cable
Start/Stop - 2x2.5mm cable
Alarm signal - 2x1.5mm cable
Fig. 56 Electrical connection of passive-active lter
Input for the end
coupling locking
screw
Final connection
Assembled set
Filter insert
supply
Power
connections
Power supply
Start/Stop
Alarm signal
