KMC Controls BAC-4000 series User Manual

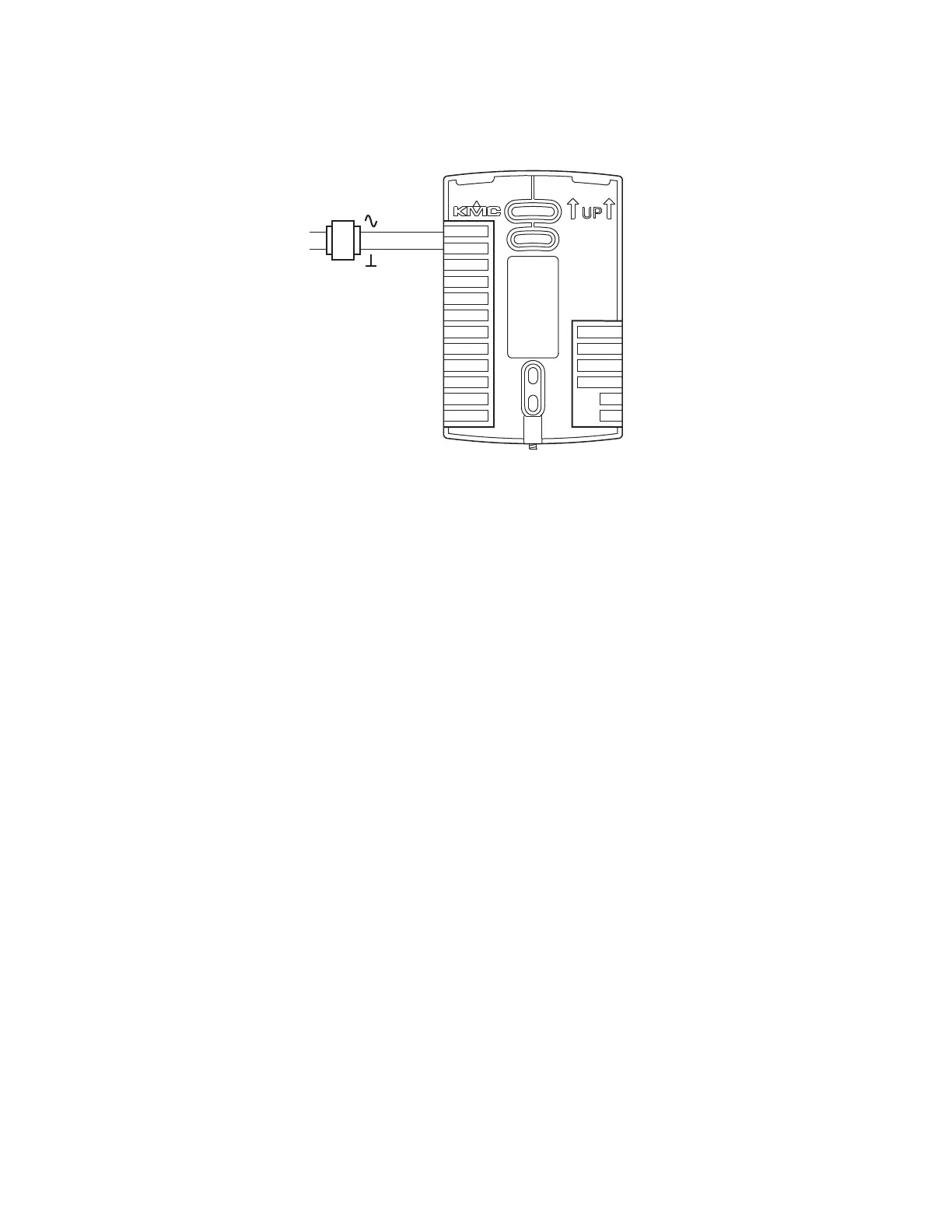

Illustration 2–13 Wiring for AppStat power
24 VAC
Class-2
Controls
transformer
MS/TP
+B
A
RS
WST
GND
DAT
COM
FAN-L
FAN-M
FAN-H
R
BO4
BO5
GND
AO6
AO8
AO7
24VAC
Maintenance
Remove dust as necessary from the holes in the top and bottom. Clean the
display with soft, damp cloth and mild soap.
Installation, Operation, and Application Guide for AppStat Section 2: Installing the AppStat
Revision G 29
