SECTION 2
INSTALLATION
Jan 2001
Page 2-6
05114574
2.2.3 Tools and Equipment
HP Tube Coning and Threading Procedures

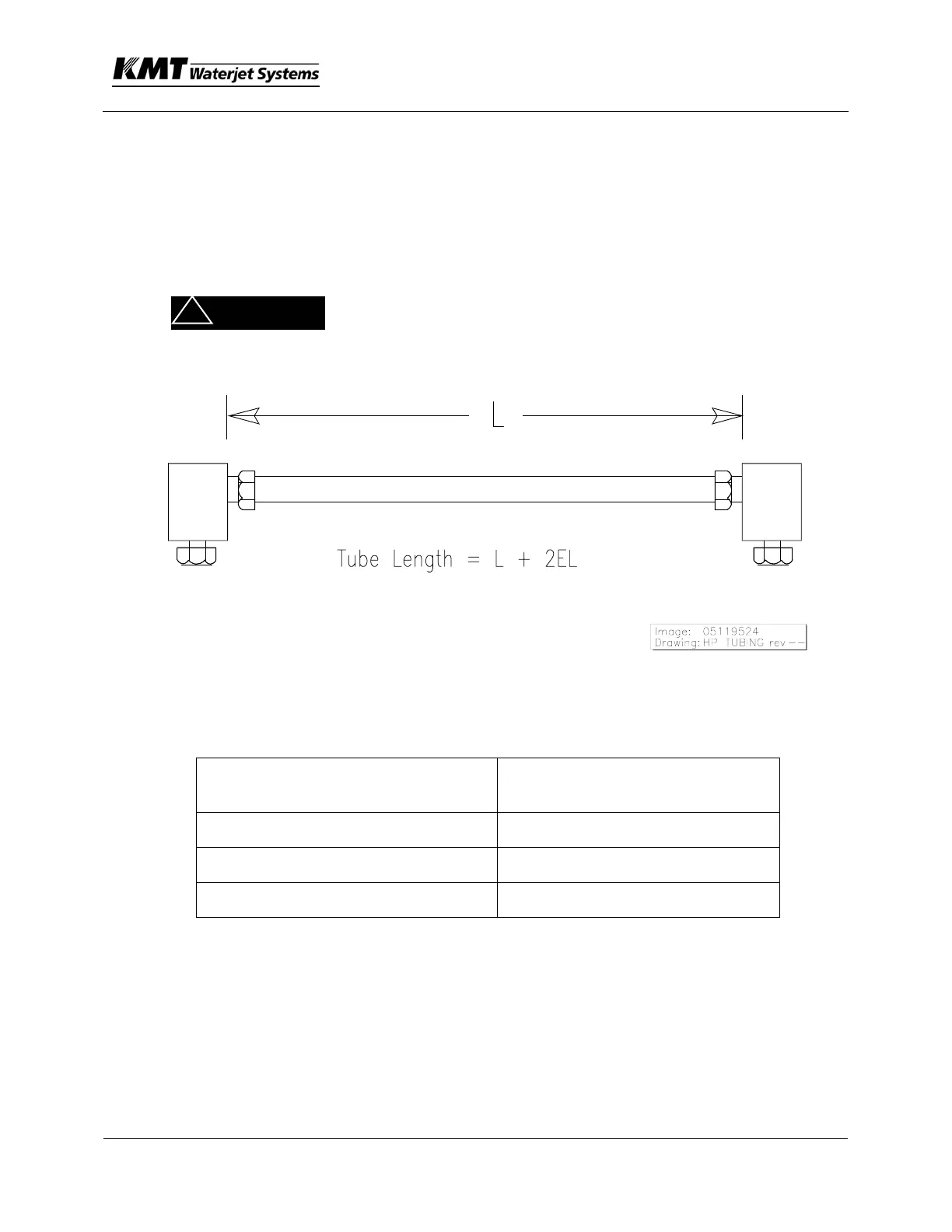

Determine Tube Length - Measure, the distance (L), between the fittings, then
add two times the tube engagement length in the following table. Cut tubing to
length and deburr.
High-pressure piping and fittings rated for 4,138 bar
(60,000 psi) must be used. Failure to do so may cause
component failure causing equipment damage, personal
injury, or death.
Tube Engagement Length
HP Tube Diameter
(inch)
Engagement Length
(EL) mm (inch)
1/4" 12.7 (0.50)
3/8" 17.5 (0.69)
9/16" 21.3 (0.84)
W
ARNING
!
