SECTION 9
HYDRAULIC SYSTEM
Dec 2002
Page 9-3
05114640
9.1.2 Components

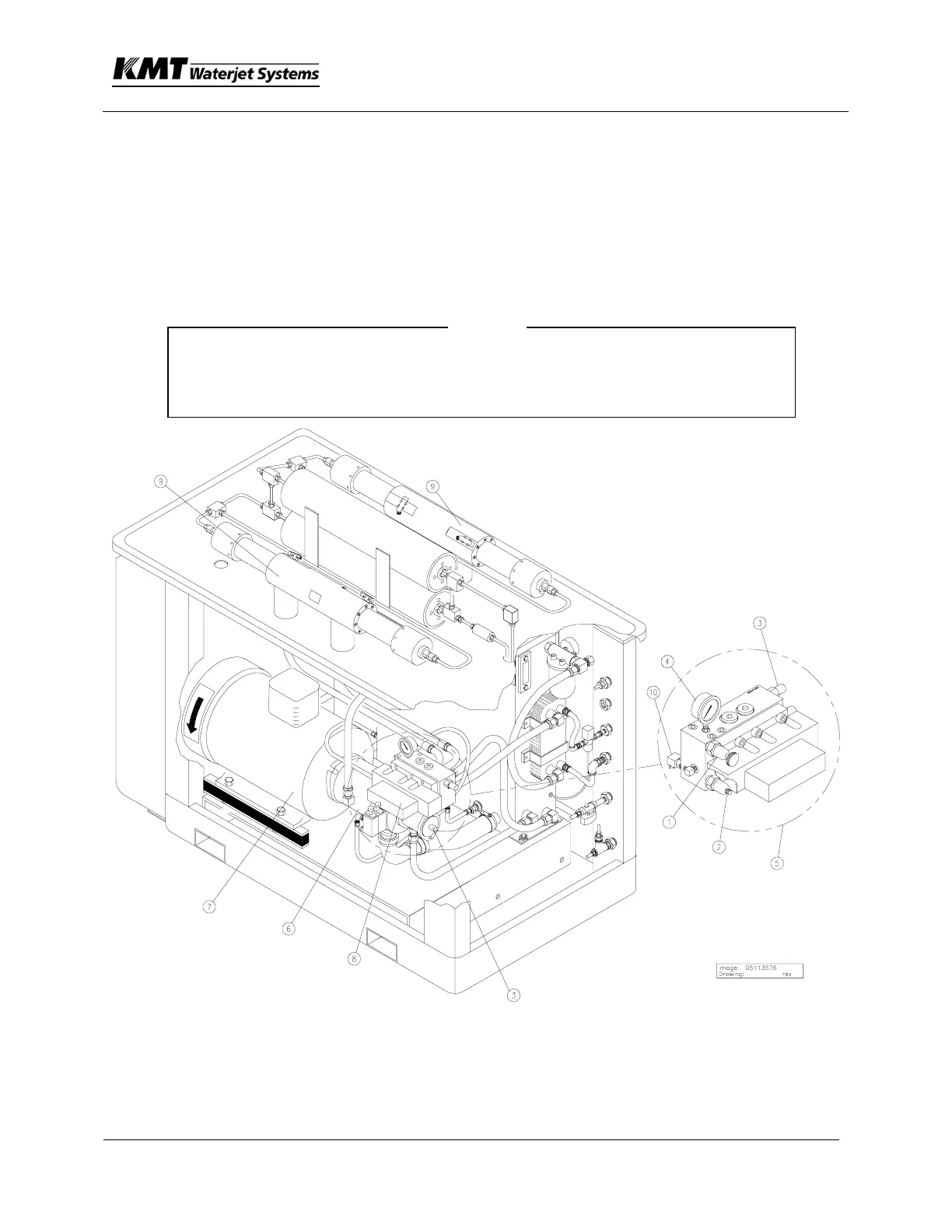

Following are the hydraulic system components:
(1) HI pressure control (2) LO pressure control (3) Fixed relief valve
(4) Gage (5) Manifold (6) Pump
(7) Motor (8) Directional Control Valve (9) Hydraulic Cylinder
(10) Hi-Lo Solenoid Valve
NOTE
The main pump is direct-mounted to the motor. The main pump
control includes hi and lo preset pressures. The operator is able to
switch between pressures at the operator’s console.
