SECTION 7
HIGH PRESSURE WATER
Jan 2001
Page 7-2
05114624
7.2 Intensifier Disassembly and Reassembly
Detailed instructions are provided on disassembly and reassembly of the
hydraulic intensifier, including HP seal maintenance. A discussion of detailed
inspection and repair for individual HP subassemblies is also provided. HP
attenuators are discussed but no disassembly procedures are included since
attenuators are not serviceable by the customer.

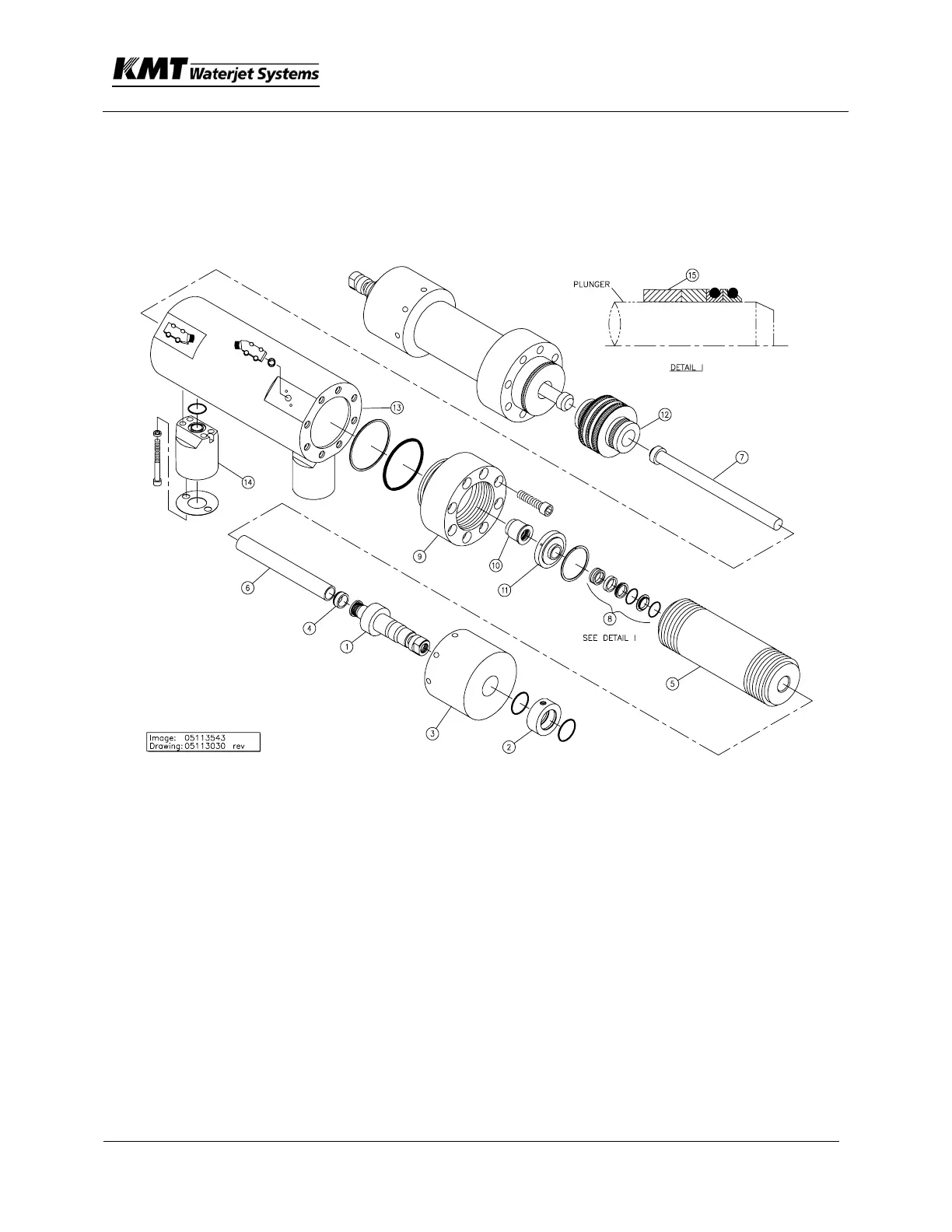

Item Description
(1) Sealing Head (2) Collar (3) Head Nut
(4) Head Seal (5) Cylinder Body (6) Cylinder Liner
(7) Plunger (8) Plunger Seal (9) Cylinder Head
(10) Hydraulic Cartridge Seal (11) Flange (12) Piston
(13) Cylinder (14) Stem (15) Follower
