SECTION 6
LOW PRESSURE WATER
Jan 2001
Page 6-5
05114616
6.3 Maintenance Overview
In order to maintain necessary fluid pressure for the pump and to keep the
water clean for proper operation it is necessary to replace the water filter
and/or adjust the boost pump. The guidelines for servicing these parts are
described below.

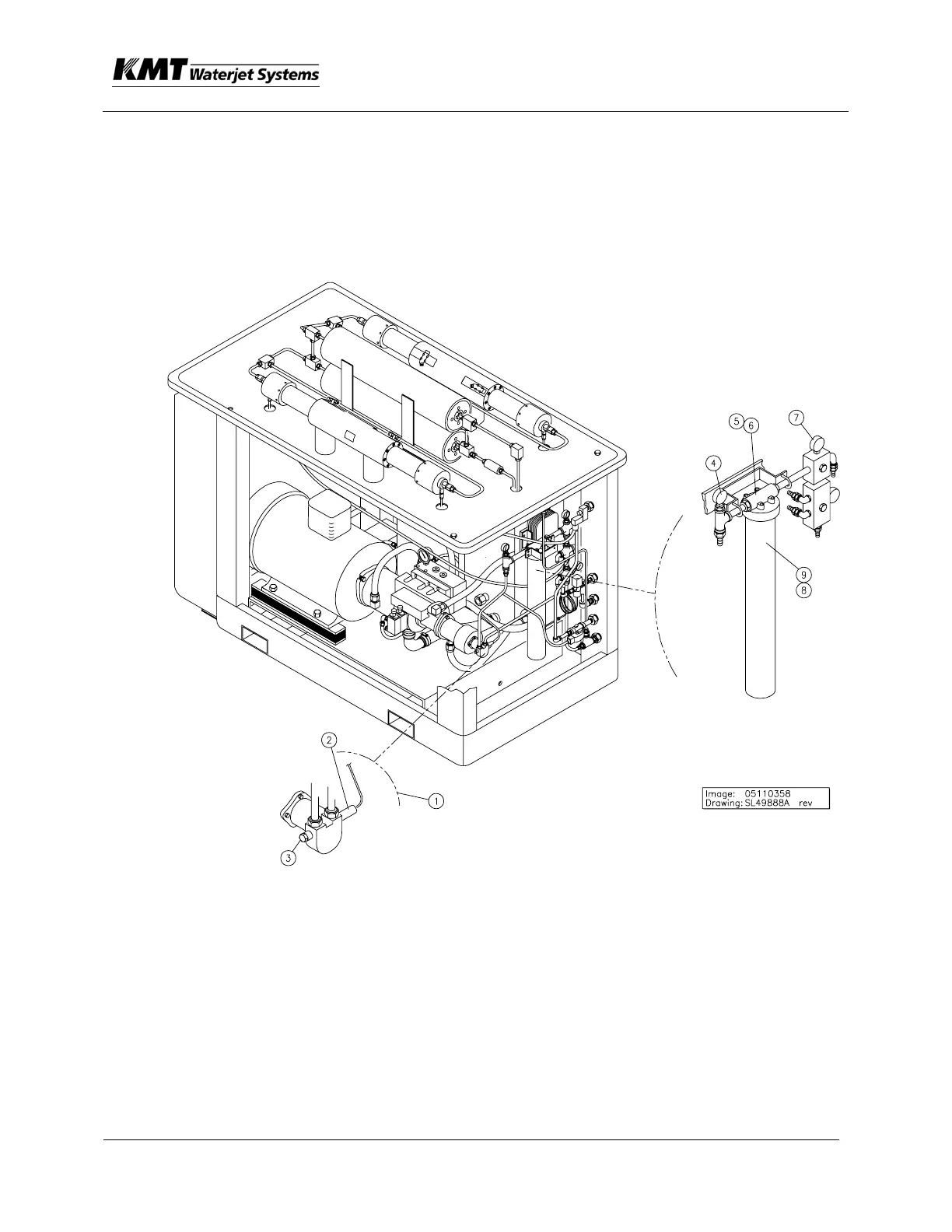

Item Description
(1) Boost Pump (2) Temperature Sensor (3) Pressure Control Valve
(4) Pressure Gage (5) Bleed Valve (6) Filter Head
(7) Pressure Gage (8) Filter Housing (9) Filter Element
