SECTION 7
HIGH PRESSURE WATER
Jan 2001
Page 7-23
05114624

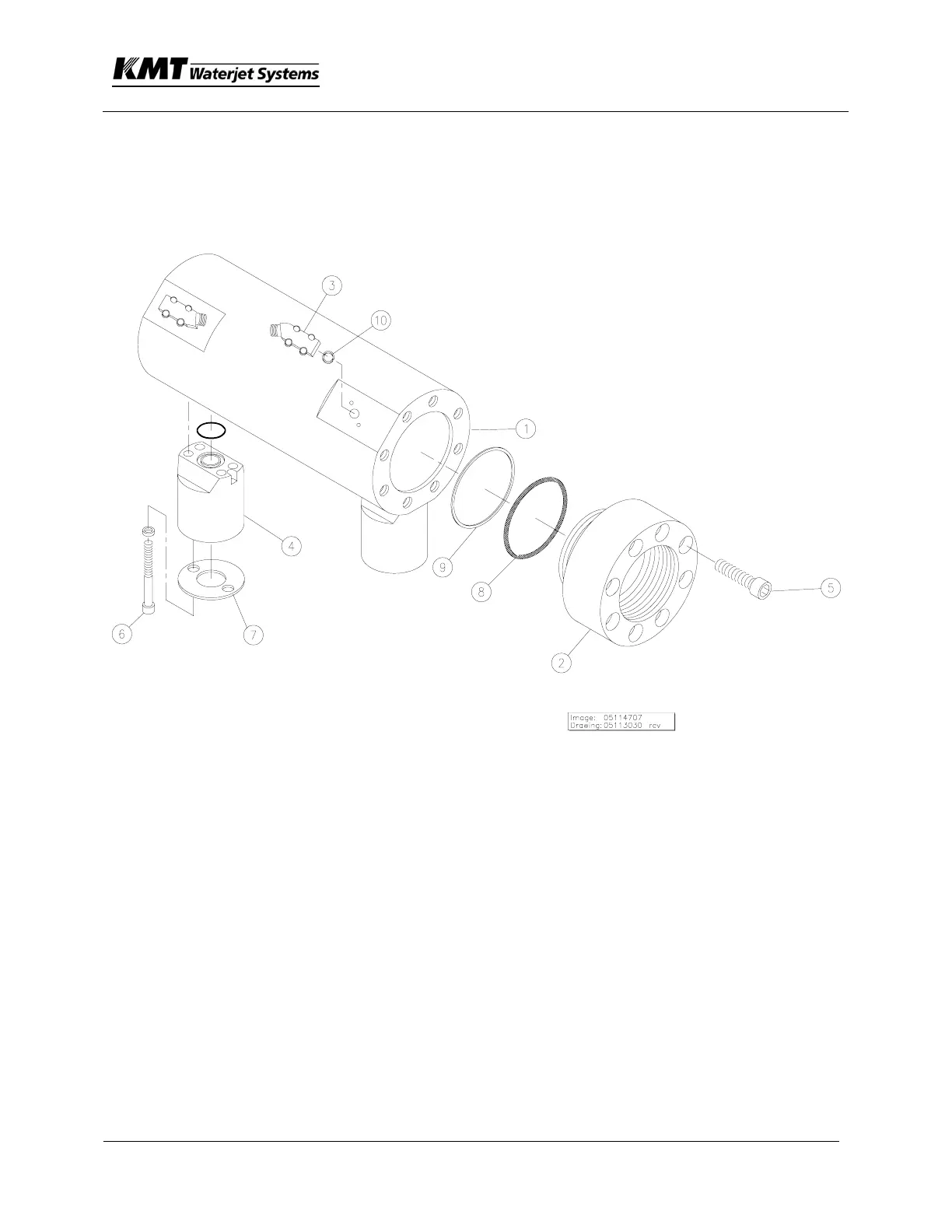

7.3.8 Hydraulic Cylinder
The inside diameter surface of the hydraulic cylinder should be inspected for
wear grooves and surface finish whenever the hydraulic cylinder heads are
removed. Excessive grooving on this bore is indicative of piston seal wear.
Item Description
(1) Hydraulic Cylinder (2) Cylinder Head (3) Proximity Switch
(4) Mount Stem (5) Socket Head Cap Screw (6) Socket Head Cap Screw
(7) Gasket (8) Back-up Ring (9) O-ring
(10) Spacer
