User manual - DATA RECORDER and cooperating software
”disabled”
- data from the selected measurement channel will not be recorded,
”current v.”
- current values (corresponding to the results of current measurements)
will be recorded for the selected measurement channel,
”average v.”
- averaged values will be recorded for the selected measurement channel
(see section
MEASUREMENT MODE
, point
6.1.3
).
If the
“Input type”
in the
“Inputs settings”
menu shall be set as
“disabled”
for a
given channel, then this channel will not be available on the list of recording
channels in the
“Logging setup”
menu.

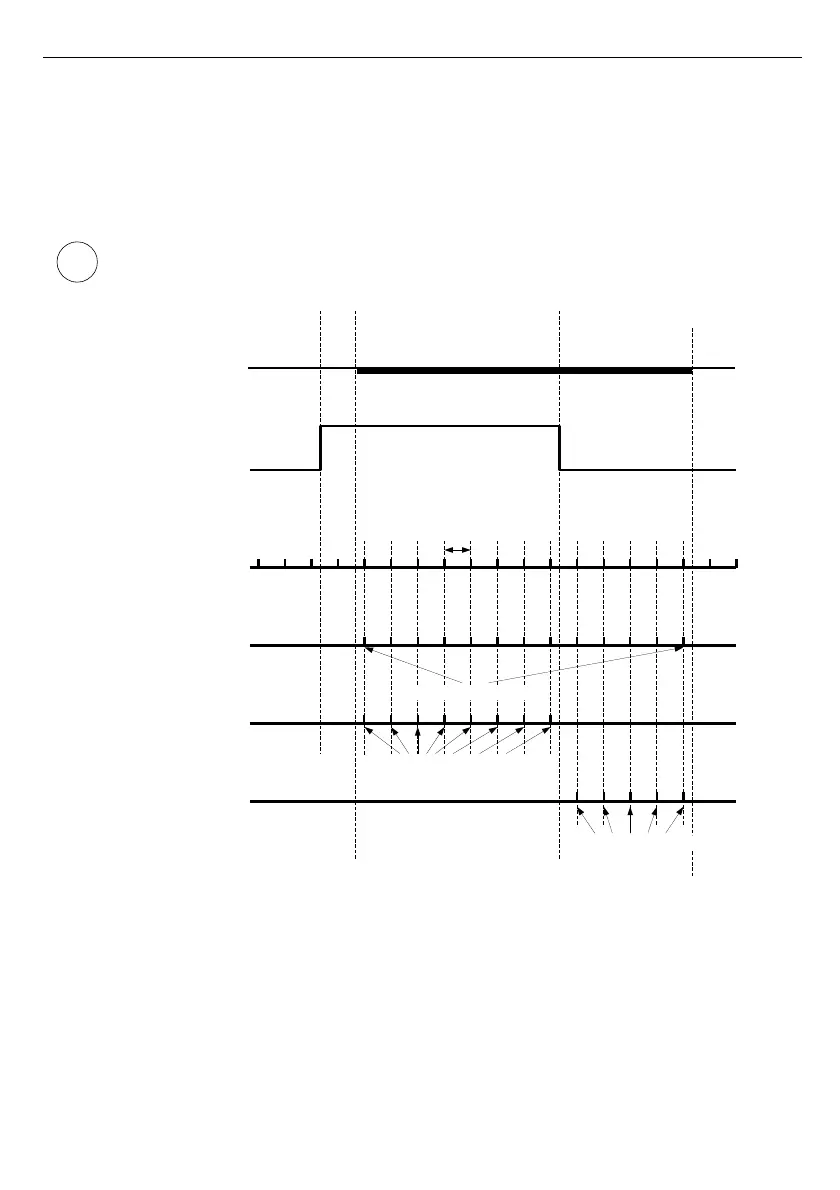

Fig. 7.18.
Recording points depending on “Triggering” parameter value.
5
2
i
„disabled“
„disabled“
„current v.“ or „average v.“
low (0V)
high (24V)
low (0V)
”Rec.period”
parameter
registered measurements
registered measurements
registered measurements
. . .
”Channel 1”...”Channel 8”
parameters settings
Didital input state
All possible points of data
registration synchronized to
internal clock
Points of data registration
for option
”Triggering”=”Always”
Points of data registration
for option
”Triggering”=”hi level”
Points of data registration
for option
”Triggering”=”lo level”
