User manual - DATA RECORDER and cooperating software

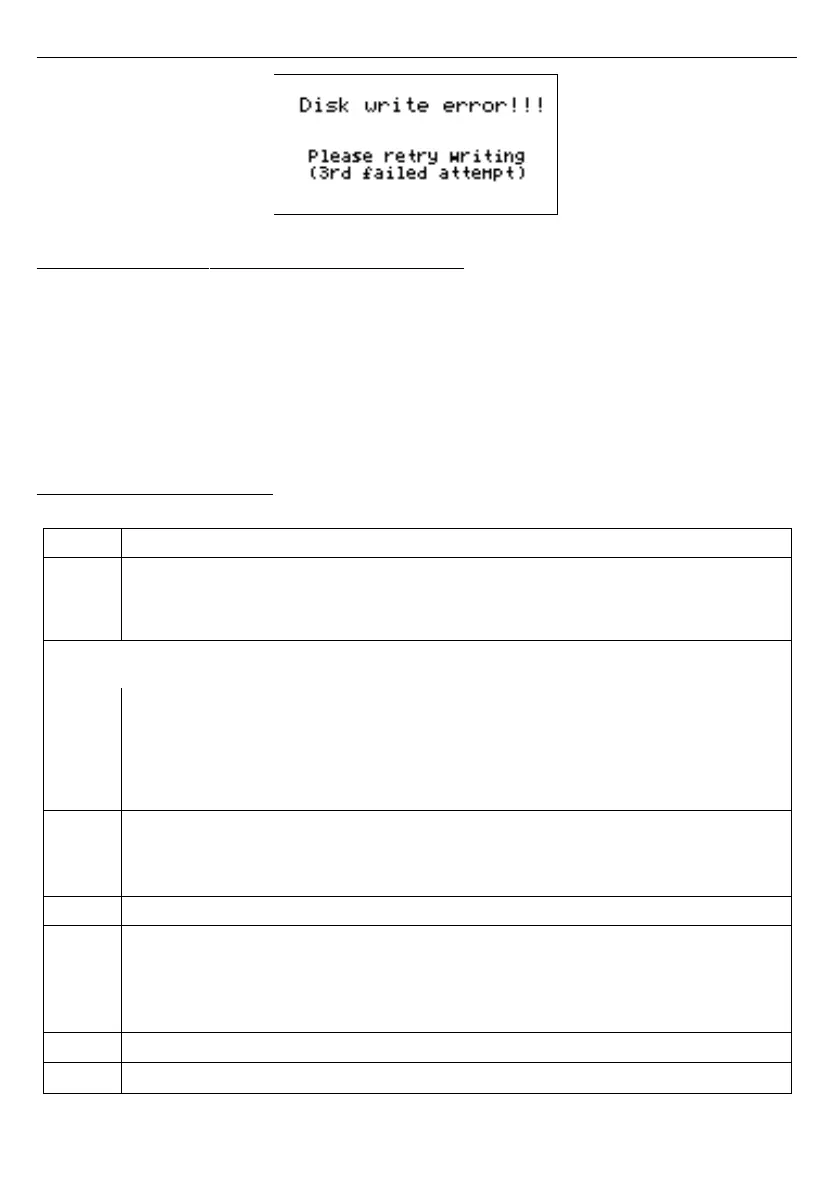

9. THE MODBUS PRO TOCOL HANDLING
Transmission parameters: 1 start bit, 8 data bits, 1 stop bit, no parity control
Baud rate: selectable from: 1200 to 115200 bits/second
Transmission protocol: MODBUS RTU compatible
The device parameters and measurement result are available via RS-485 interface, as
HOLDING-type registers of Modbus RTU protocol. The registers (or groups of the registers)
can be read by 03h function, and wrote by 06h (single registers) or 10h (group of the registers)
accordingly to Modbus RTU specification.
9.1. LIST OF REGISTERS
Register Write Range Register description
01h
1
No see descr.
Measurement result for channel 1 (not considering the decimal point)
Current and voltage inputs version range: -9999÷9999
TC/RTD inputs version range: -1000 ÷ 6000 (for °C)
-1480 ÷ 11120 (for °F)
Register from 02h
1
to 08h
1
Measurement result for channel 2..8, registry description like for
channel 1 (see registers 01h).
09h No 0÷0FFFFh
Information about exceeding the allowable measurement range on the
given measurement channel in binary form:
HGFEDCBAhgfedcba
.
Higher(2
nd
) byte
- exceeding upper limit of measurement range
(
H
- channel no 8,
A
- channel no 1).
Lower(1
st
) byte
- exceeding
upper limit of measurement range (
h
- channel no 8,
a
- channel no 1).
1
- exceeding the range,
0
- measurement result within range
0Bh No 0÷3
Outputs state (binary)
00000000 000000ba
:
a
– output 1
b
– output 2
0
– open;
1
– closed
OCh No -40 ÷ 100 Outer temperature measurement result (in °C)
11h Yes 0÷1
"
Backlight
" parameter in "
Display options
" menu:
0
- permanent,
1
- temporary
12h Yes 0÷20 LCD backlight brightness
13h Yes 0÷20 LCD contrast
14h Yes 0÷3
"
Language
" parameter:
0
- Polish,
1
- English,
2
- French,
3
- Spanish
15h Yes 0÷1
“
Temperature unit
” parameter (TC/RTD version):
0
- C,
1
- F
