2 — USING THE 3401T
pg. 7
Return to TOC Curtis Model 3401T – August 2022
If this screen is visible, take the following steps:
1. Use the F1–F5 buttons to enter the ve-digit password, which consists of the numbers 1–5.
Pressing an F1–F5 button enters the number that follows the letter “F”: for example, the
button enters 2.

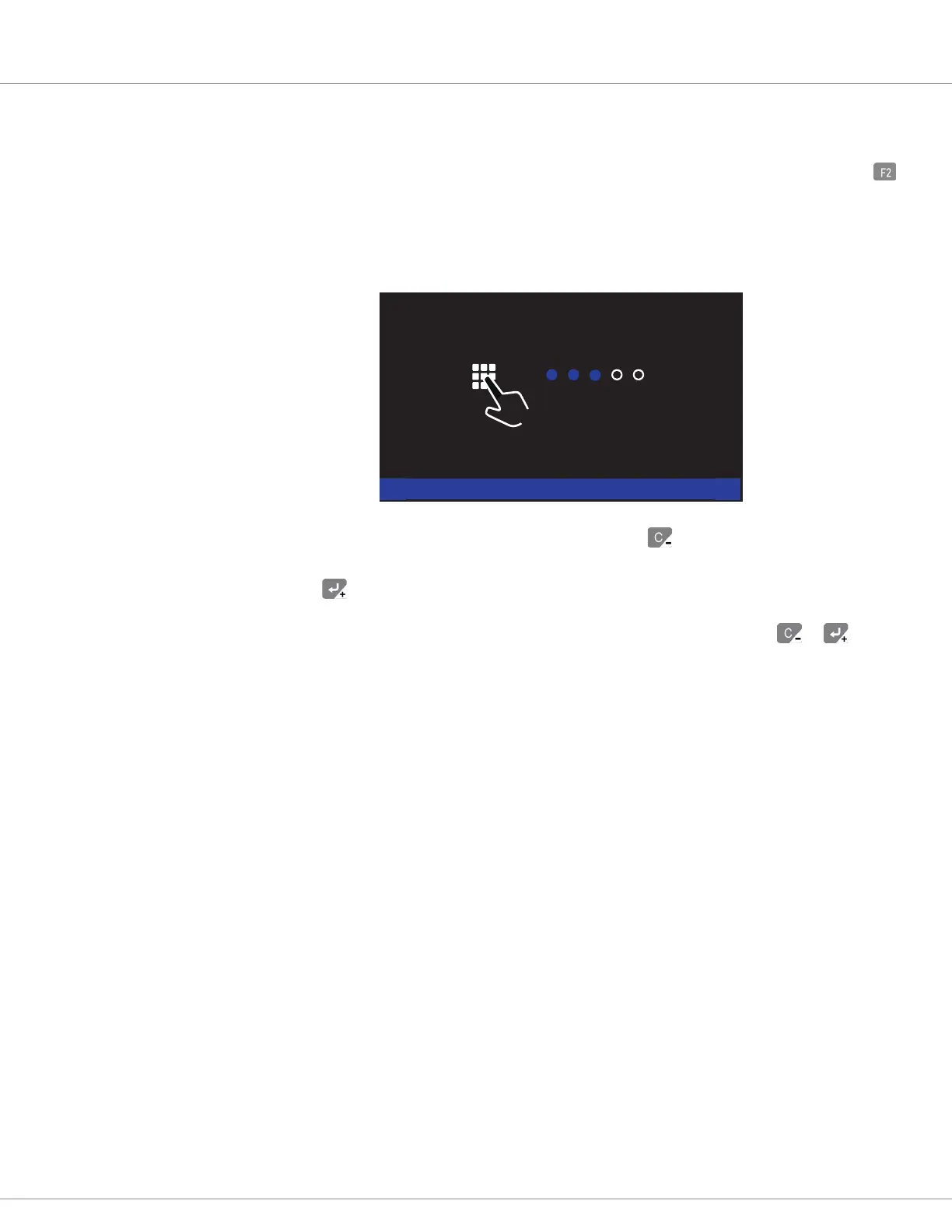

To indicate how many characters have been entered, the corresponding circle in the middle of
the screen turns blue when a button is pushed. In the following example, three numbers have
been entered:
1
2 3 4 5
Tip: To clear the most recently entered number, press the button; the corresponding circle
turns white.
2. Press the button to submit the password. If the password is correct, the home screen
is displayed.
If the password screen indicates that the wrong password was entered, press the or button
to clear the password, then repeat this procedure.
Note: e default power-on password is 12345. Curtis recommends that you change the default
password. e password is specied with the PIN Code parameter.

Kohler CURTIS 3401T Specifications

Power

nominal voltage	12–96 VDC
minimum voltage	8 VDC
maximum voltage	120 VDC
keyswitch on current	33–207mA
keyswitch off current	25–112mA
LCD heater on current	566–801mA

Operating Environment

operating temperature with LCD heater	–40°C to +70°C
operating temperature without LCD heater	–20°C to +70°C
storage temperature	–40°C to +85°C

Weight and Dimensions

dimensions	160 x 102 x 49.7 mm
