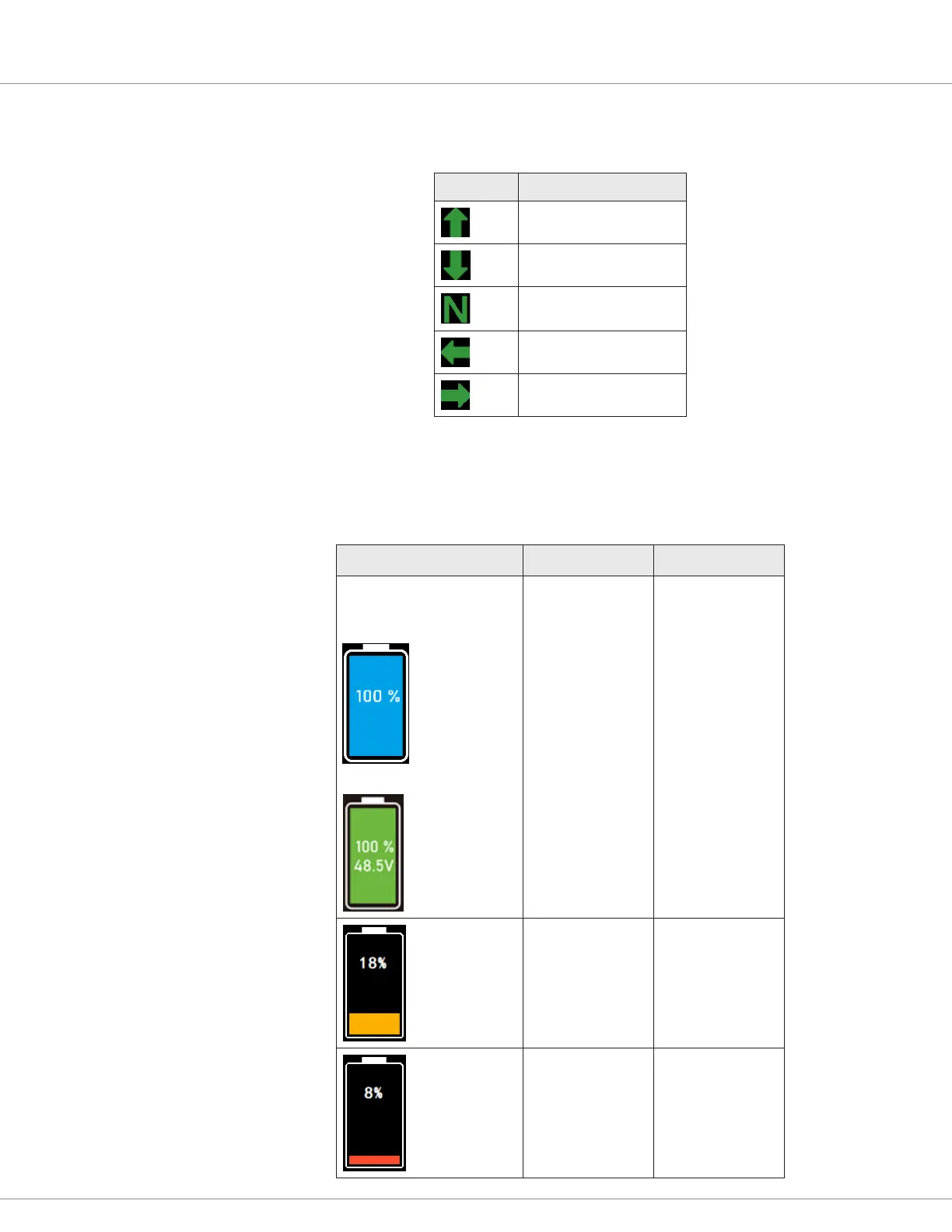

Direction Icons
e following icons indicate the vehicle’s direction:
Icon Description
Forward
Backward
Neutral
Left turn
Right turn
BDI
e BDI area uses the following gauges to indicate the battery’s state of charge. e battery voltage
also may be displayed, as shown in the example below for lead-acid batteries. e gauge colors
depend upon the BDI percentage:
Icon BDI Status BDI Percentage
The color depends upon the
battery type:
Lithium:
Lead acid:
Okay 20–100%
Warning 10–19%
Low 0–9%

Kohler CURTIS 3401T Specifications

Power

nominal voltage	12–96 VDC
minimum voltage	8 VDC
maximum voltage	120 VDC
keyswitch on current	33–207mA
keyswitch off current	25–112mA
LCD heater on current	566–801mA

Operating Environment

operating temperature with LCD heater	–40°C to +70°C
operating temperature without LCD heater	–20°C to +70°C
storage temperature	–40°C to +85°C

Weight and Dimensions

dimensions	160 x 102 x 49.7 mm
