Kohler CURTIS 3401T User Manual

2 — USING THE 3401T
pg. 15
Return to TOC Curtis Model 3401T – August 2022
PRESET USER INTERFACES — 3401T MODEL
The 3401T model provides applications with preset user interfaces for the following types
of vehicles:
• Counterbalanced forklis
• Reach trucks and order pickers
Figure 2-1 and Figure 2-2 show the home screens of both user interfaces. e home screens consist
of the areas indicated with callouts, which are described in Table 2-3.

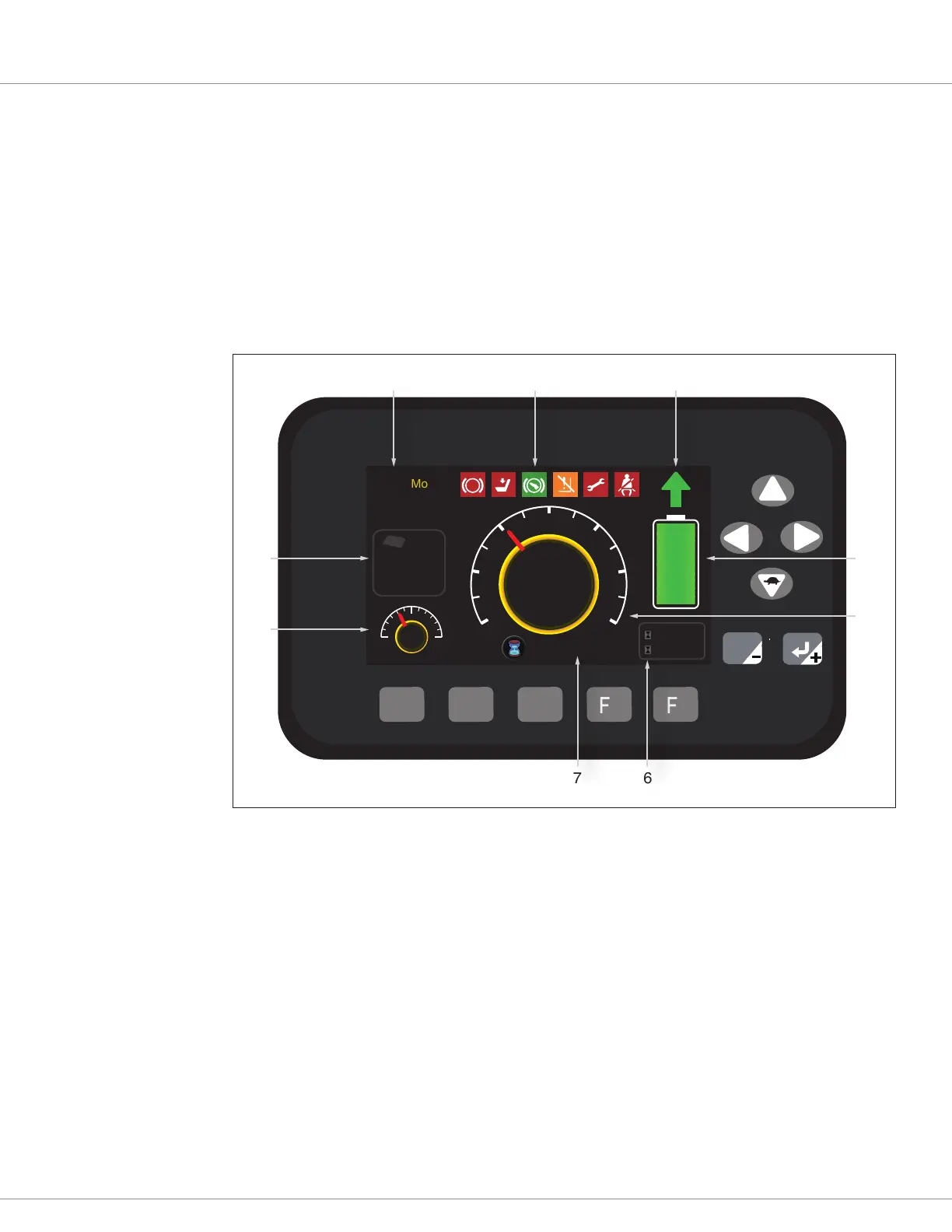

FIgure 2-1
Counterbalanced Forklis Application
F1 F2 F3 F4 F5
H
S
E
C
+
-
S
TRA: OK
HYD: OK
5
0
10
25
30
20
15
100 %
P
00098.6H
10.2
km/h
00122.8 T
00186.9
P
Mode
29
2 3
4
5
9
8
7 6
1

Kohler CURTIS 3401T Specifications

Power

nominal voltage	12–96 VDC
minimum voltage	8 VDC
maximum voltage	120 VDC
keyswitch on current	33–207mA
keyswitch off current	25–112mA
LCD heater on current	566–801mA

Operating Environment

operating temperature with LCD heater	–40°C to +70°C
operating temperature without LCD heater	–20°C to +70°C
storage temperature	–40°C to +85°C

Weight and Dimensions

dimensions	160 x 102 x 49.7 mm
