Speed Mode

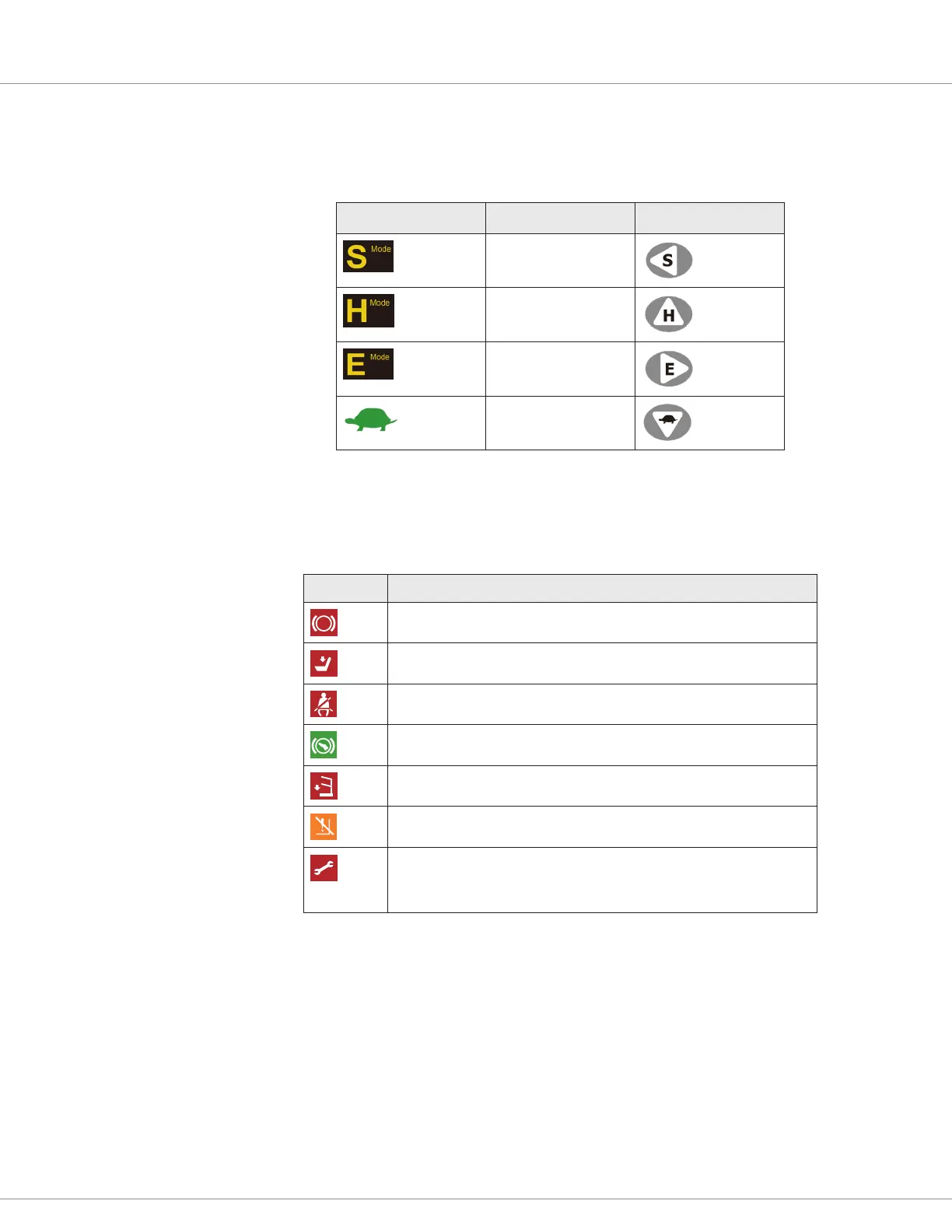

e speed mode area indicates the selected mode. e following table describes the icons that indicate
the active speed mode and the buttons that specify the modes:
Icon Speed Mode Button
Standard
High speed
Economy
Turtle
Signal Icons
e signal icons indicate vehicle actions and states:
Icon Description
P
Parking
Seat
Seat belt
Safety pedal
Guardrail
Lift lockout
Fault active
Note: The fault icon blinks when a fault is detected or when the 3401T
is not receiving fault signals from other devices.

Kohler CURTIS 3401T Specifications

Power

nominal voltage	12–96 VDC
minimum voltage	8 VDC
maximum voltage	120 VDC
keyswitch on current	33–207mA
keyswitch off current	25–112mA
LCD heater on current	566–801mA

Operating Environment

operating temperature with LCD heater	–40°C to +70°C
operating temperature without LCD heater	–20°C to +70°C
storage temperature	–40°C to +85°C

Weight and Dimensions

dimensions	160 x 102 x 49.7 mm
