2 — USING THE 3401T
pg. 19
Return to TOC Curtis Model 3401T – August 2022
e Warning and Low gauges ash when they are active. If the BDI percentage is too low, li lockout
is activated and the icon displays.

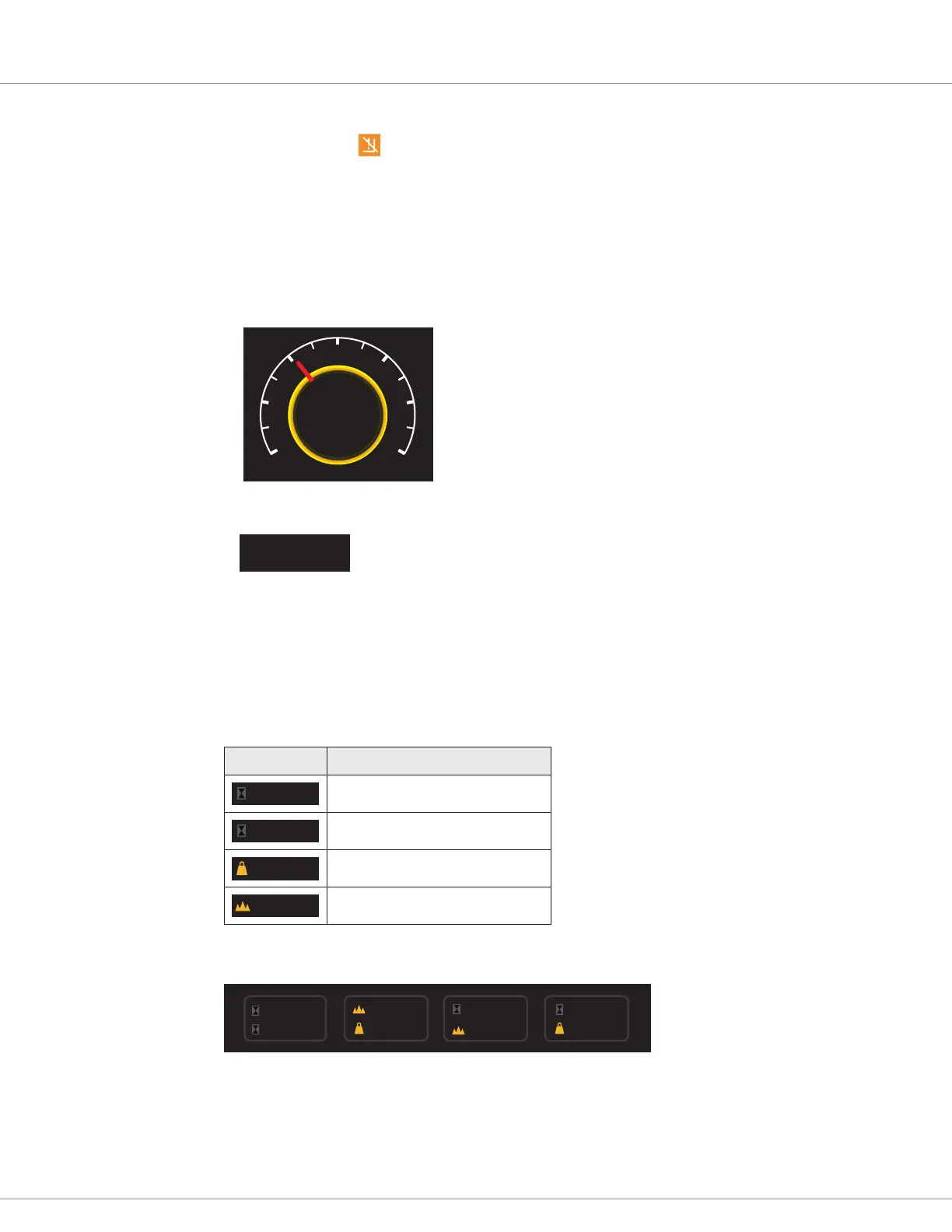

Speedometer
The speedometer displays the speed in km/h or mph, depending upon how the device is
configured. The speedometer on the reach trucks and order pickers screen may also display a
speed limit. The following figures show how the preset user interfaces display the speedometer:
Figure 2-3
Speedometer —
Counterbalanced
Forklis
5
0
10
25
30
20
15
10.2
km/h
Figure 2-4
Speedometer —
Reach Trucks and
Order Pickers
10.2
km/h
(MAX 20.0)
Hour Meters, Cargo Weight and Lift Height
e hour meters, cargo weight and li height area displays up to two of the following items at any
given time:
Icon Hour Meter
00186.9 P
Pump controller hour meter
00122.8 T
Traction controller hour meter
001234
Kg
Cargo weight
010.500
m
Lift height
These indicators may be displayed in any combination, such as the combinations in the
following examples:
00122.8 T
00186.9
P
010.500
m
00122.8 T
010.500
m
001234
Kg
001234
Kg
00122.8 T

Kohler CURTIS 3401T Specifications

Power

nominal voltage	12–96 VDC
minimum voltage	8 VDC
maximum voltage	120 VDC
keyswitch on current	33–207mA
keyswitch off current	25–112mA
LCD heater on current	566–801mA

Operating Environment

operating temperature with LCD heater	–40°C to +70°C
operating temperature without LCD heater	–20°C to +70°C
storage temperature	–40°C to +85°C

Weight and Dimensions

dimensions	160 x 102 x 49.7 mm
