e Curtis Model 3401T is a congurable HMI that displays vehicle information such as speed,
direction, and state-of-charge. A color 4.3", 480 × 272 pixel TFT LCD allows vehicle operators to
view data in any lighting condition. An LCD heater is optional for operation in cold temperatures.
Vehicle operators use buttons to work with the user interface. e buttons make the 3401T ideal for
gloved operators and for applications that require precise tactile feedback.
e 3401T’s congurability allows various screen elements to be displayed. ese elements include
gauges, hour meters, warning icons, speedometers, and so on.
e device provides two preset user interfaces: one for counterbalanced forklis and the other for
reach trucks and order pickers. For applications that require a tailor-made user interface, the 3401T
is customizable by Curtis engineers.
e 3401T provides four inputs that can be used as switch, analog resistive, analog voltage, and
frequency inputs. Another pin can be used as either a switch input or an output driver. e 3401T
also transmits and receives data over the CANbus.

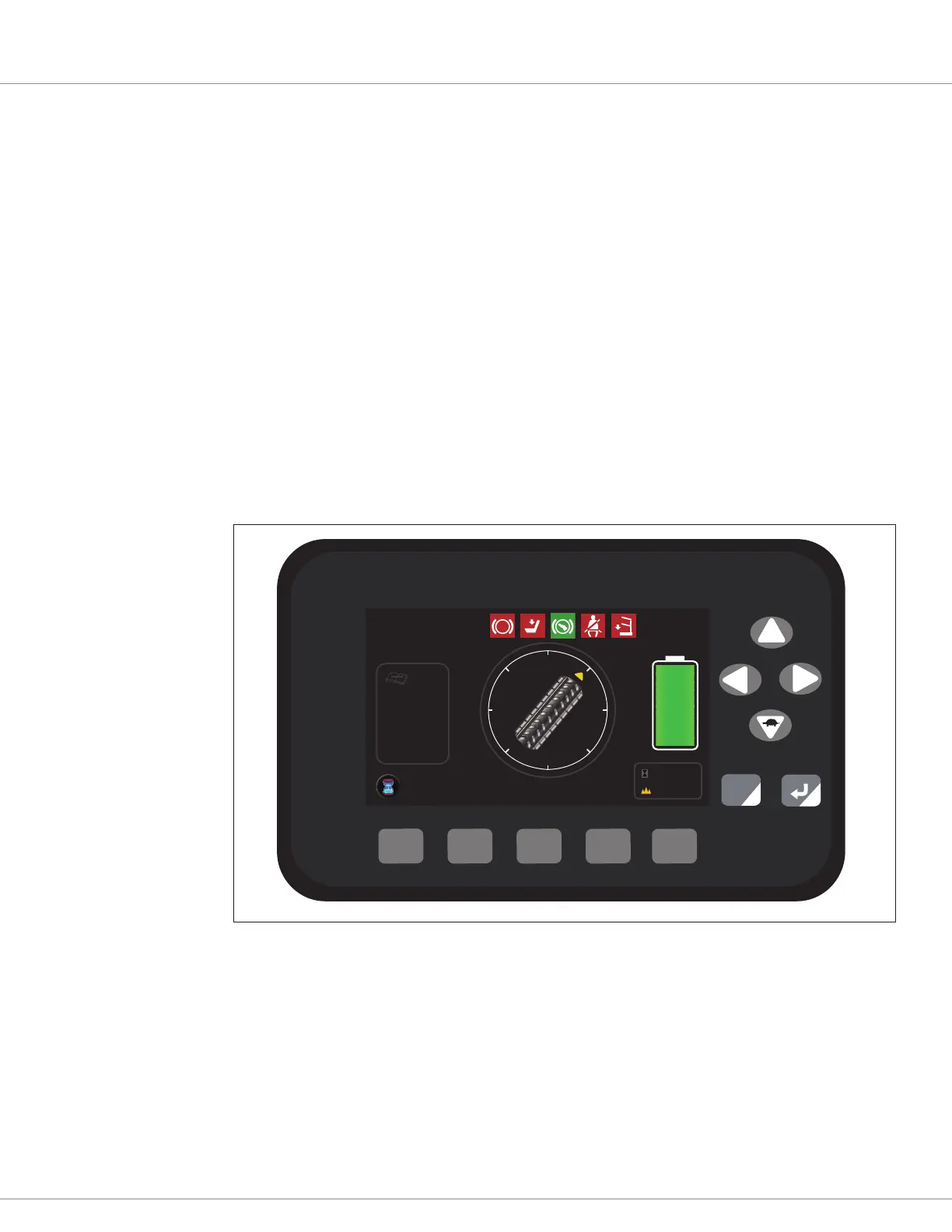

Figure 1-1
Curtis Model
3401T
F1 F2 F3 F4 F5
H
S
E
C
+
-
E
TRA: OK
HYD: OK
STR: OK
BAT: OK
100 %
P
00102.8H
Mode
10.2
km/h
(MAX 20.0)
N
010.500
m
00122.8
T
