Kohler CURTIS 3401T User Manual

2 — USING THE 3401T
Curtis Model 3401T – August 2022 Return to TOC
pg. 6
POWER-ON 3401T PASSWORD OR ECS AUTHORIZATION
e 3401T can be congured so that only authorized users can access the device. ere are two
methods for authorizing access:
• Enter a password on the 3401T keypad.
• Log onto the Curtis Electronic Code Switch (ECS).
Note: e ECS ensures that only authorized users can operate a vehicle. Users log on by entering a
user ID and PIN code or by swiping an RFID tag. For more information on the ECS, see the Input
Devices page on the Curtis Instruments website.
e following topics describe the two methods.
Power-On 3401T Password

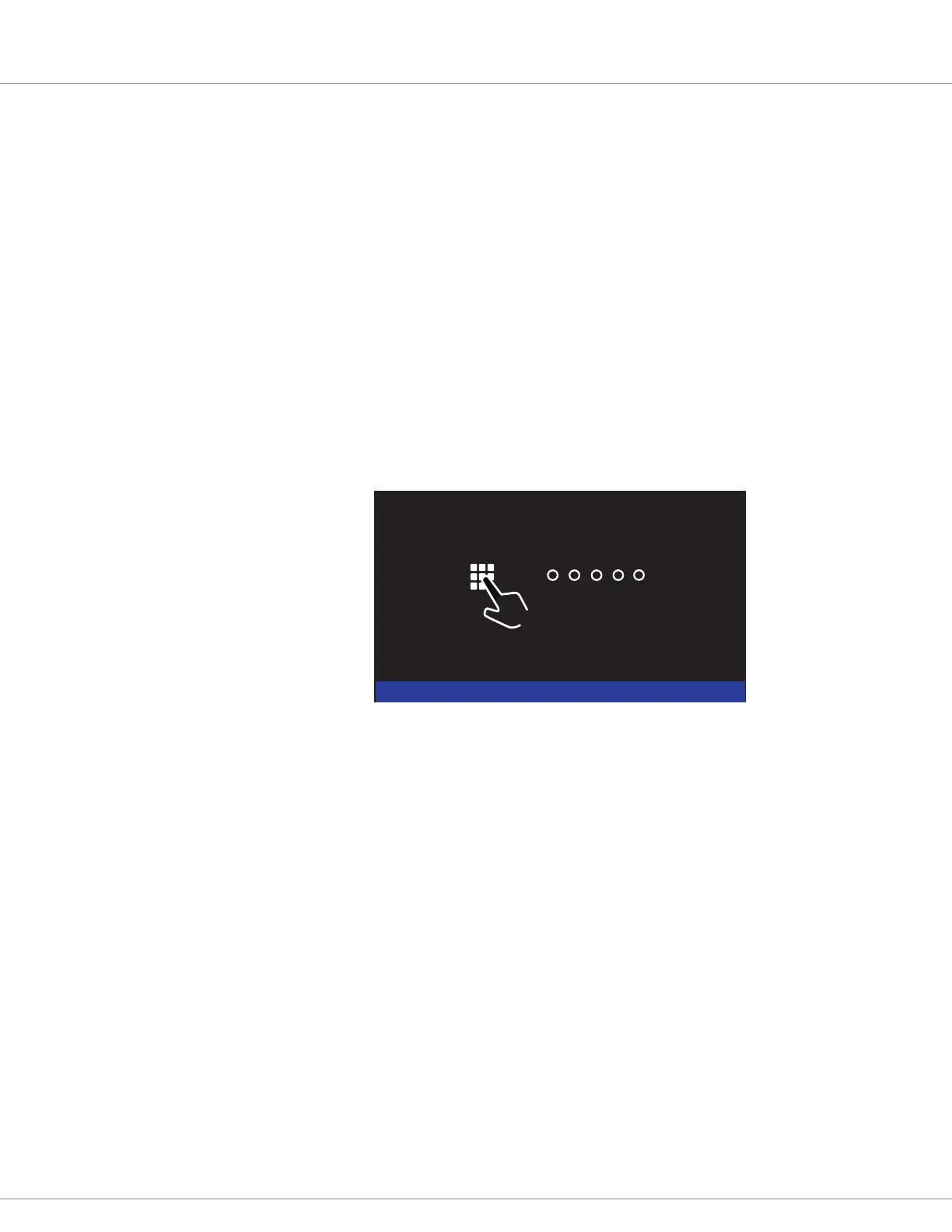

If the 3401T is congured to require a password aer the device is powered on, the following screen
is displayed:
1
2 3 4 5

Kohler CURTIS 3401T Specifications

Power

nominal voltage	12–96 VDC
minimum voltage	8 VDC
maximum voltage	120 VDC
keyswitch on current	33–207mA
keyswitch off current	25–112mA
LCD heater on current	566–801mA

Operating Environment

operating temperature with LCD heater	–40°C to +70°C
operating temperature without LCD heater	–20°C to +70°C
storage temperature	–40°C to +85°C

Weight and Dimensions

dimensions	160 x 102 x 49.7 mm
