Kollmorgen AKM Series - Dimension drawings (Ax flanges)

34 Dimension drawings (Ax flanges)
3D Models are available from www.kollmorgen.com.

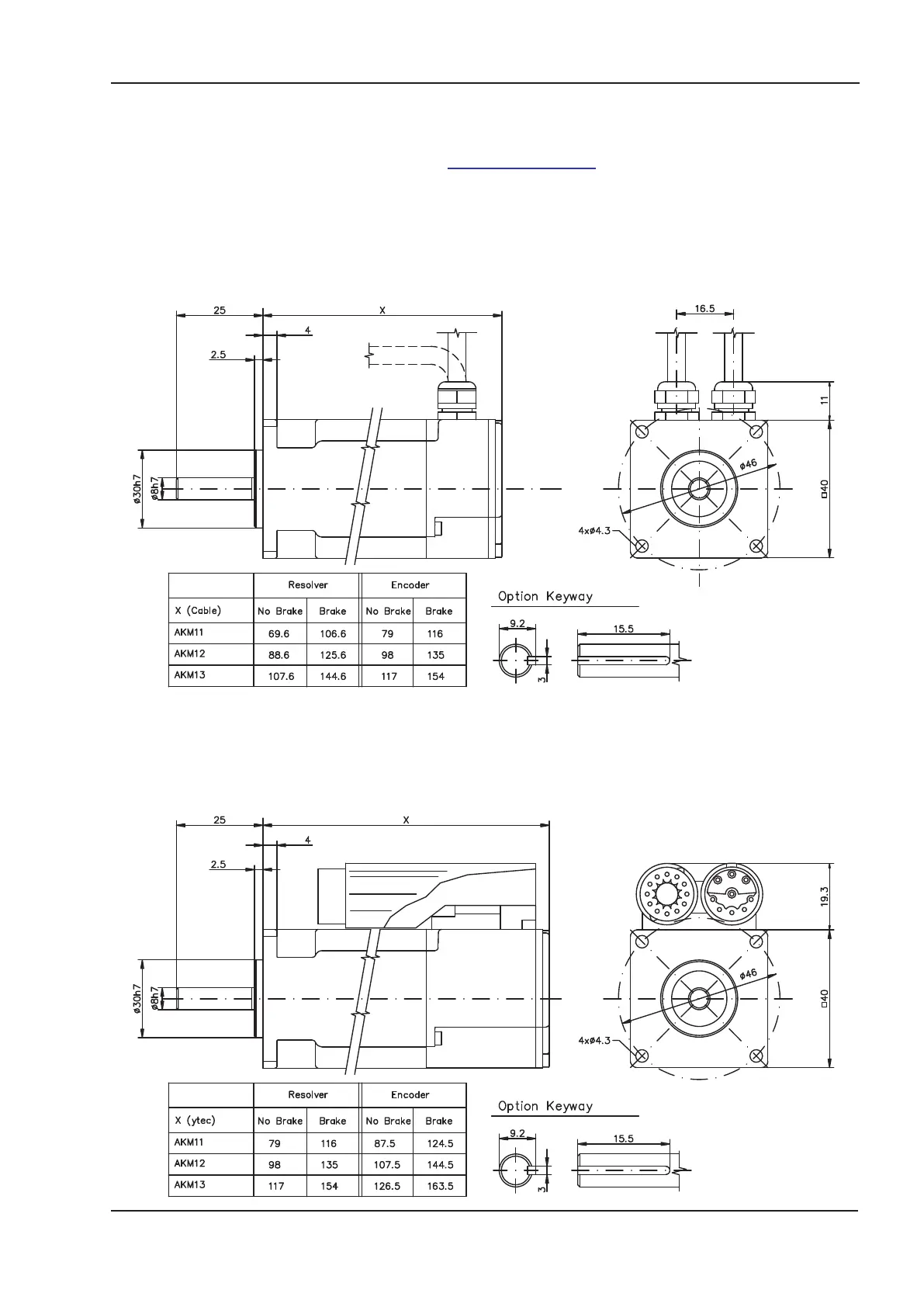

34.1 Dimensions/Radial Forces AKM1
34.1.1 Dimensions with cable connectors
Prinzipdarstellung / drawing in principle /
schema elementare / representación esquemática
34.1.2 Dimensions with mounted Y-TEC connectors
Servomotors AKM General - 117
Kollmorgen 04/2013 Dimension drawings (Ax flanges)
