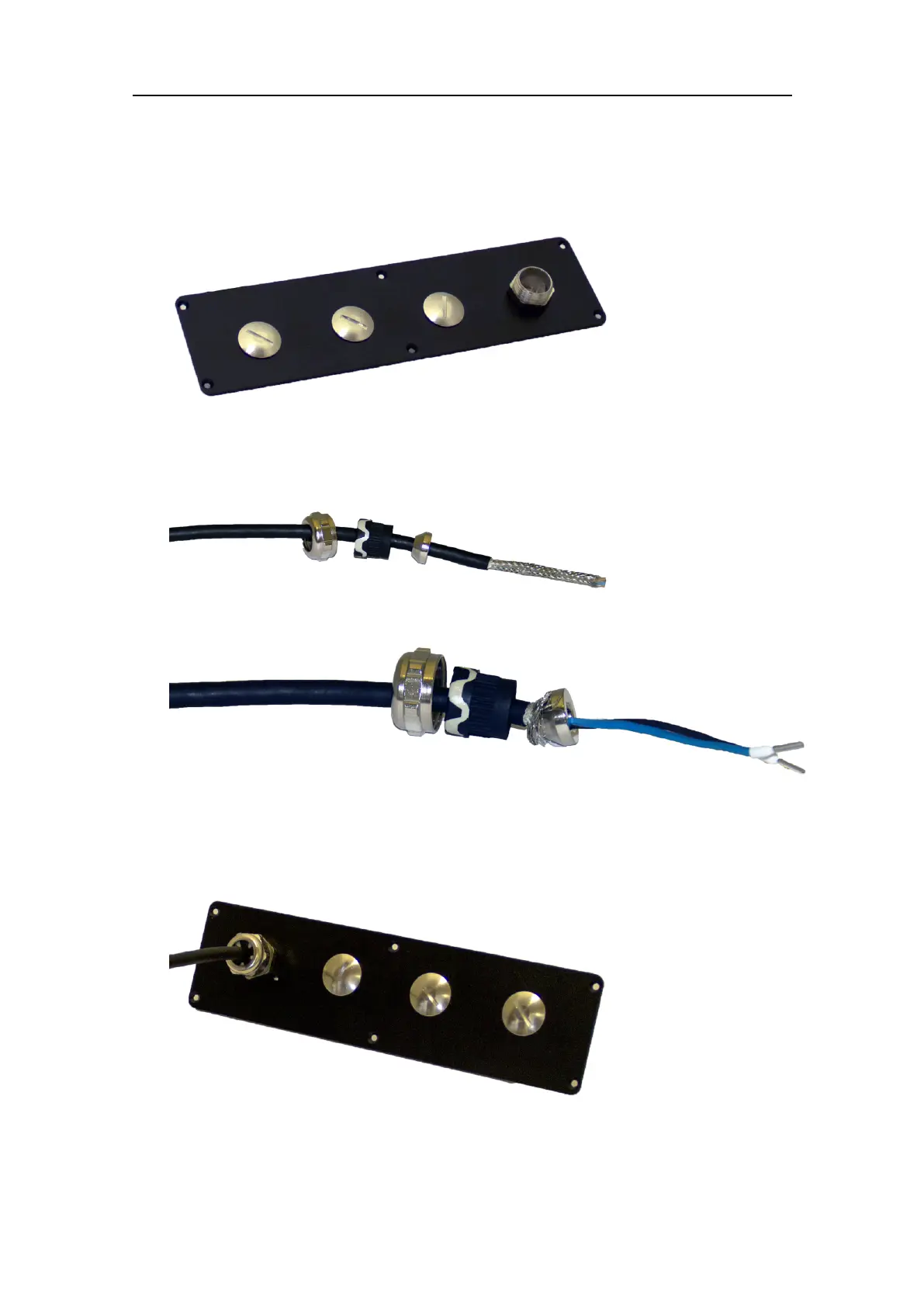

5Makesureyouusethecorrectsizecableglandaccordingtothecablesize.The

cableglandsareincludedinthedelivery.

6Useablindplugtocoverthepointsnotinuse.

7Pullthetransducercablethroughthecableglands.

8Removetheinsulationontheshieldinthetransducercable.

9Cuttheshield,tojustcovertheseal.

10Removetheinsulationonthewiresinthetransducercable.

11Addanendsleevetothewires.

12Fitthecablegland.

EA440Installationmanual
