392616/B
53

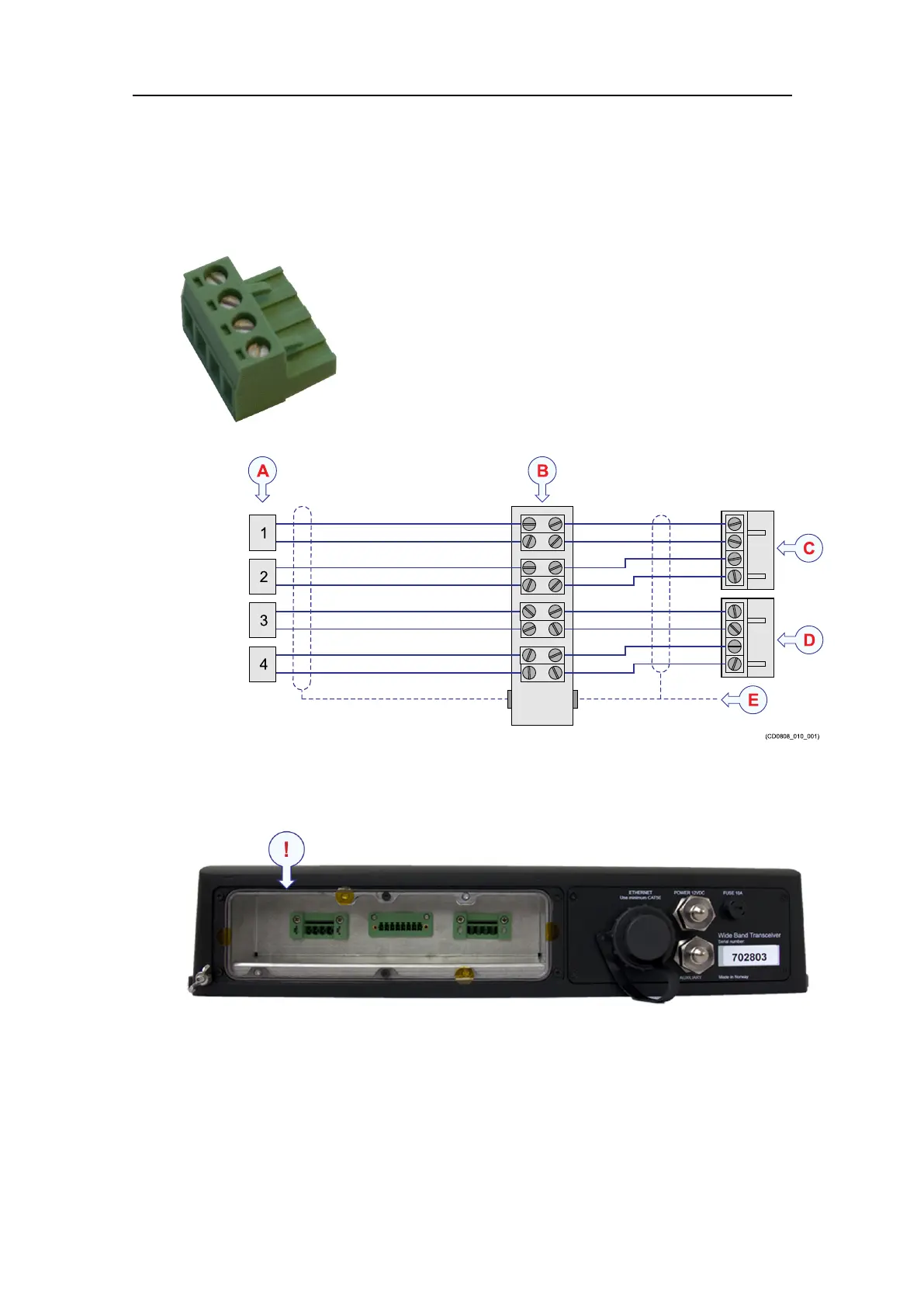

13Connecttheconductorsinthetransducercabletothecorrectpinsintheplugs,
usingthepin-outandtheship’scableplan.Checkthelicenseinformationtosee
whichtransducertoinstallwhere.
14ConnecttheplugstoP1andP2.
15MakesuretheconductivegasketisstillattachedtotheWBT.
Cablelayoutandinterconnections
