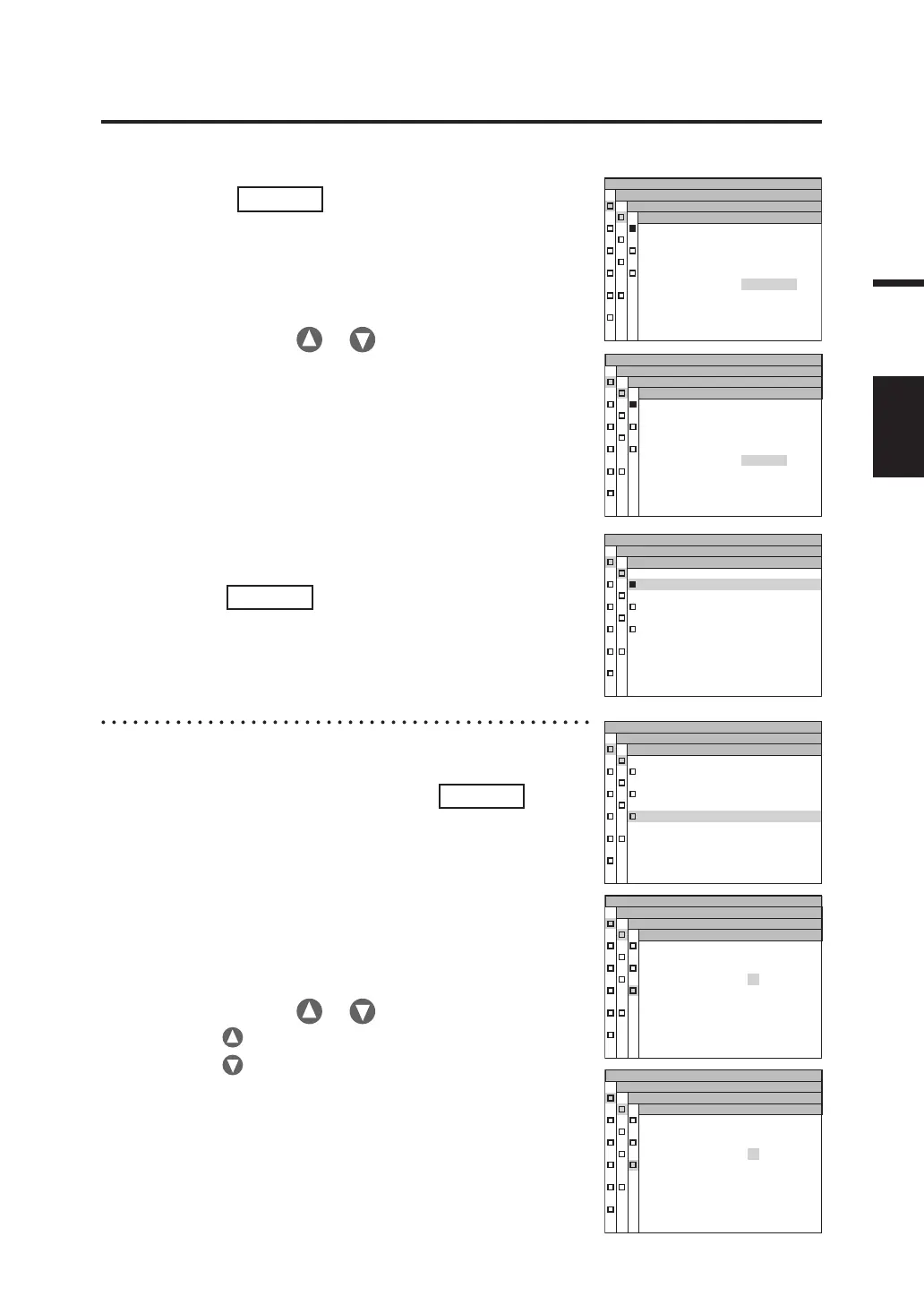

29
Setting
4-b-3. Press
ENTER
key.
The cursor moves to the IN-ND item.
This screen is used to determine whether the ND
filter built into the main unit is used or not.
4-b-4. Press either or key to select [AUTO]
/ [OFF] or [ONE] / [TWO]
*
.
* [TWO] can only be selected with CS-3000HDR.
If the “OVER” error message appears when set
to [OFF], set IN-ND to [ONE] or [TWO].
When measuring objects that have a wide range of luminance under the
adjusted measurement conditions (ex.
γ
measurement), set IN-ND to
[OFF], or to [ONE] or [TWO]. For [OFF] or [ONE]/[TWO], select [OFF]
when the upper limit luminance is up to 100 cd/m
2
, or [ONE] if it is 100
to less than 5,000 cd/m
2
, or [TWO] if it is 5,000 to 100,000 cd/m
2
.
4-b-5. Press
ENTER
key.
When the setting is confirmed, the MENU - MEAS -
SPEED MODE screen appears again on the LCD.
For the MANUAL setting
4-c-1. Select [MANUAL] and press
ENTER
key.
The MENU - MEAS - SPEED MODE - MANUAL
screen appears on the LCD. This screen is used to
input the integration time in the MANUAL mode.
4-c-2. Press either or key to set a value.
Press key for a larger number.
Press
key for a smaller number.
The setting range of integration time
is from 5 to 120,000 ms.
The significant figures for integration time are 6 digits.
However, in the case of CS-2000Plus, the actual
integration time when the integration time is 4 seconds
or more will be an integral multiple of 4 seconds.
MEAS
MULTI-INTEG
INTEG TIME
10s
IN-ND TWO
SPEED MODE
(
2/2
)
MEAS
MULTI-INTEG
INTEG TIME
10s
IN-ND AUTO
SPEED MODE
(
2/2
)
MEAS
MANUAL
INTEG TIME
IN
-
N
D
O
FF
000033.330
m
s
SPEED MODE
(
2/2
)
MEAS
SPEED MODE
(
2/2
)
MULTI-NORMAL
MULTI-FAST
MANUAL
MEAS
SPEED MODE
(
2/2
)
MULTI-NORMAL
MULTI-FAST
MANUAL
MEAS
MANUAL
INTEG TIME
IN
-
N
D
O
FF
000033.333
m
s
SPEED MODE
(
2/2
)
