This ensures even pressure distribution.
Page - 18 -
Fastening device for the sealing jaws:
• A pneumatic cylinder for the in and out movement
• A pressure reducer with a display pressure gauge for the in and out movement. This
Operating instructions and technical description
Seal seam strength tester Labormaster HCT 3000
The lower sealing jaw floats loosely above the load cell, guided by a counteracting spring system.
The adjustment to the upper sealing jaw is carried out automatically using ball centering.
• A drive unit (motor with worm gear) speed-controlled.
Components of the seal seam strength tester
The upper sealing jaw is firmly connected to a precisely guided plunger that can be moved up and down.
The pressure reducer is factory-set to a maximum of 3.5 bar and sealed!
Phone +49.7153.9510-0
E-Mail: sales@kopp-online.de
Inh. Ludwig P. Goals
D-73262 Reichenbach/Fils
Packaging systems
Ulmer Straße 51 – 53
Willi Kopp e. K
http://www.kopp-online.de
Fax +49.7153.9510-100

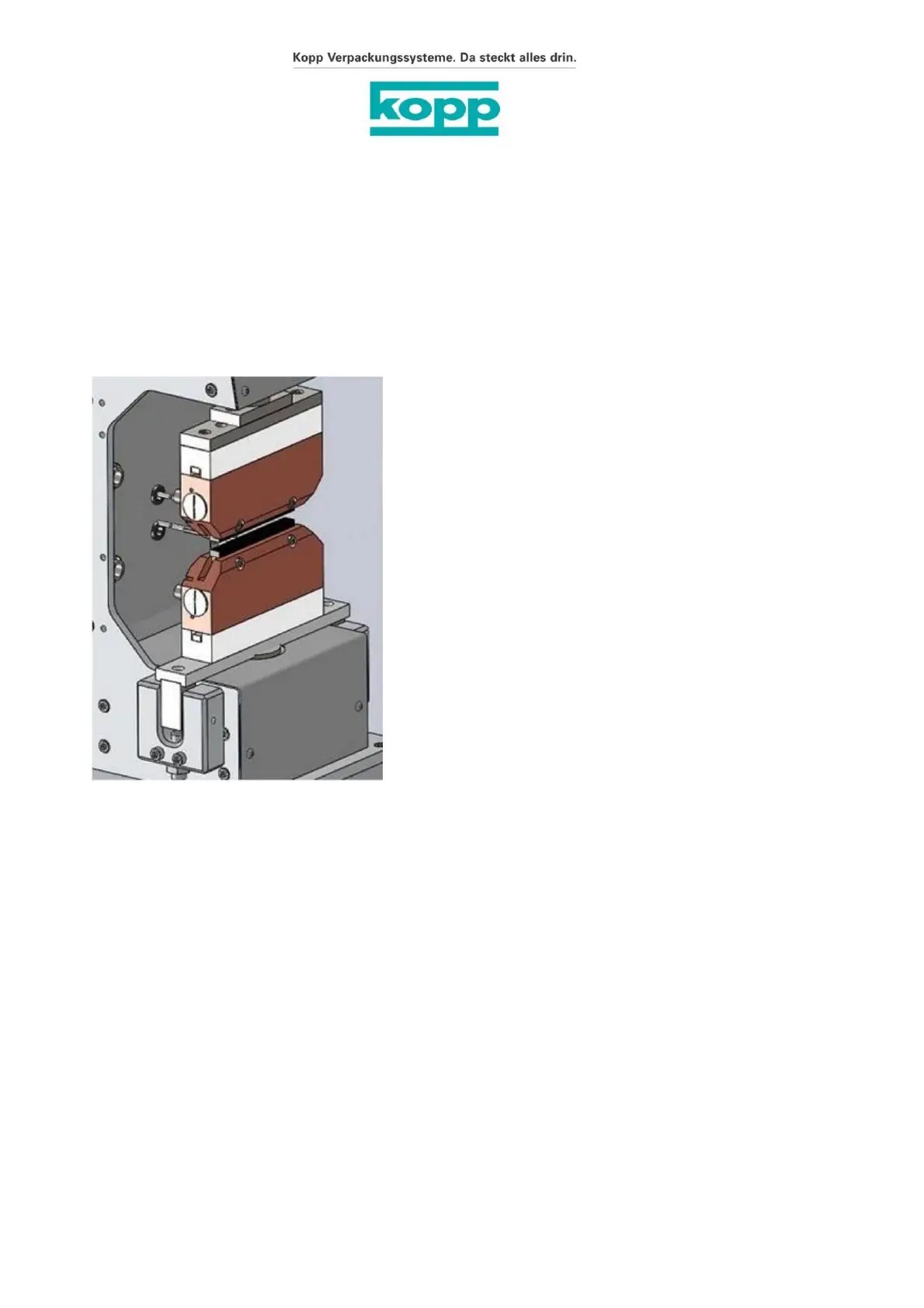

Figure 2 / Sealing jaws
Subject to errors and technical changes!
Labormaster Version 2.6.3 SW 2.2 from 03/2016 Page 18 of 82, March 1, 2016
