Device and system description

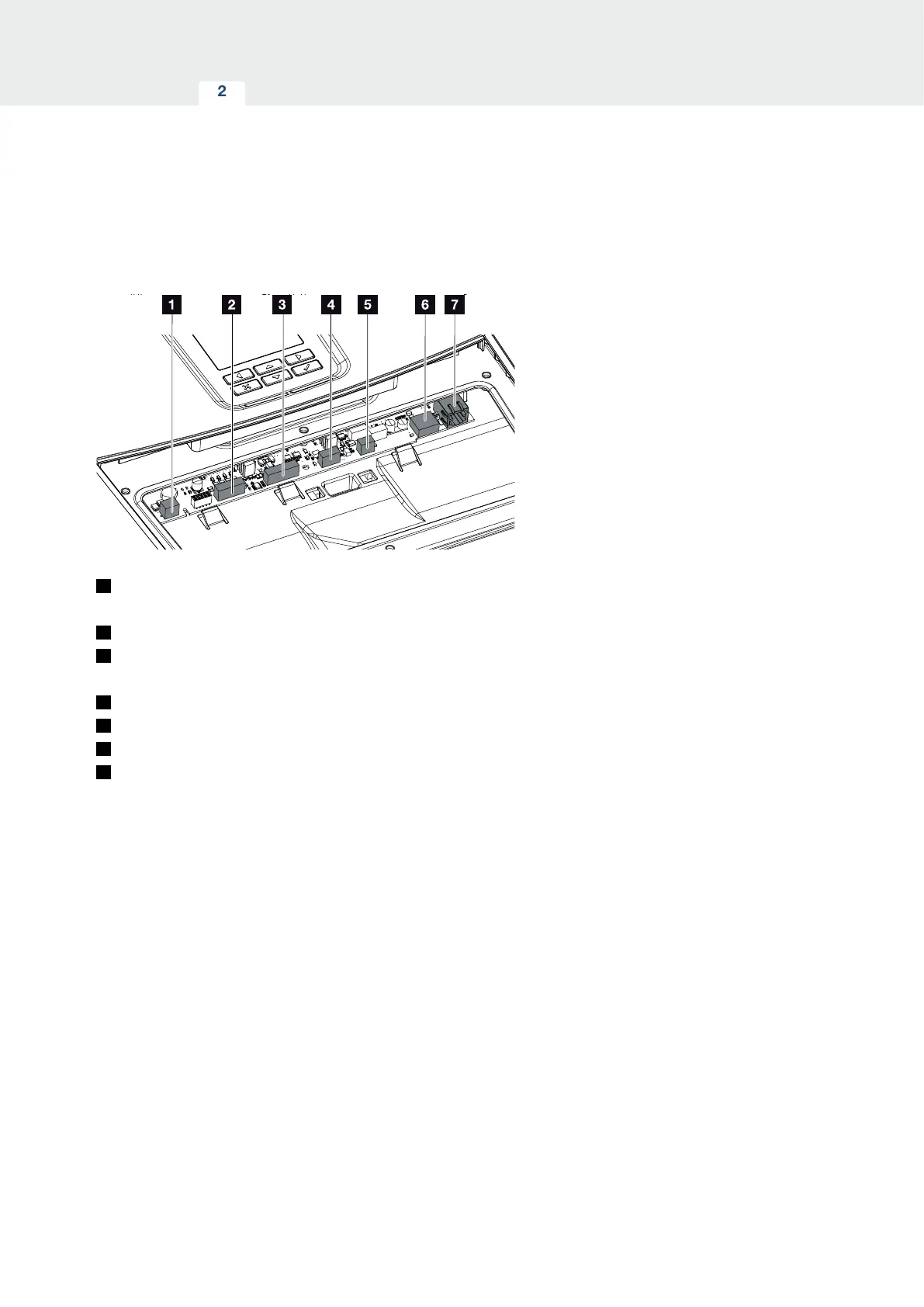

Smart Communication Board (SCB)
Inverter (interior view)
1
Terminal for self-consumption control (connection of
consumers via external load relay)
2
Terminal for digital interface for ripple control receiver
3
Terminal for battery communication via RS485 or
CAN
4
Not used
5
Terminal for energy meter ( Modbus RTU)
6
USB 2.0 port
7
Ethernet connection (RJ45) LAN
The Smart Communication Board (SCB) is the inverter’s
communication hub. All the connections for communi-
cating with other components can be found on the SCB.
