Installation
Connecting mains cable
1. De-energise the home network.
2. Secure home fuses against reactivation.
3. Move DC switch on inverter to “O” position.
Fig. 11
4. Remove screws on bottom cover and take o
cover.

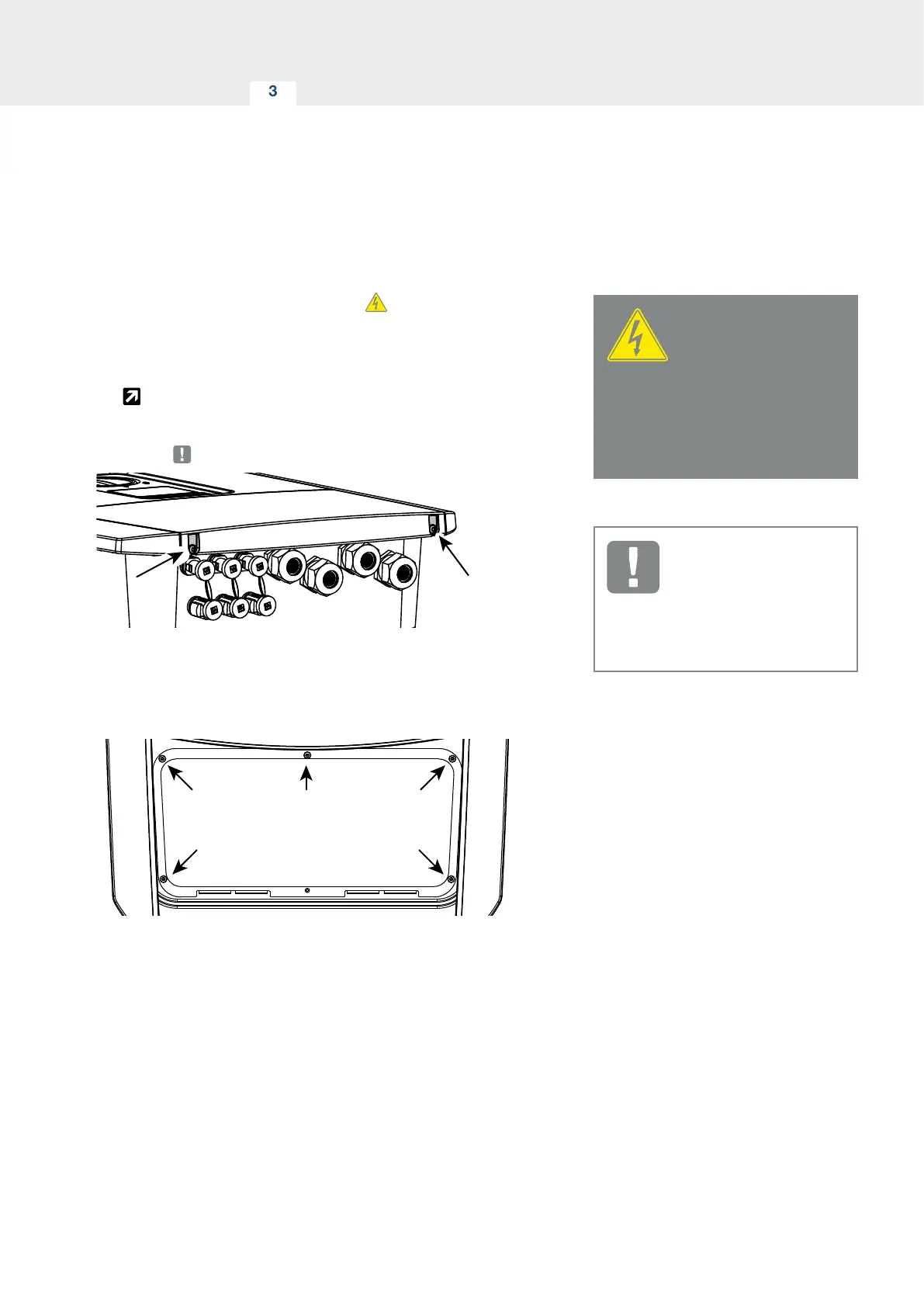

Fig. 20: Taking o cover
5. Remove screws of terminal compartment and take
o cover.
Fig. 21: Taking o terminal compartment cover
DANGER
RISK OF DEATH DUE TO ELECTRI-
CAL SHOCK AND DISCHARGE!
De-energise all devices and secure
them against being switched on
again.
IMPORTANT
INFORMATION
Whenever working inside the in-
verter, only ever use insulated tools
to prevent short-circuits.
