Kramer MV-6 User Manual

6
MV-6 - Overview

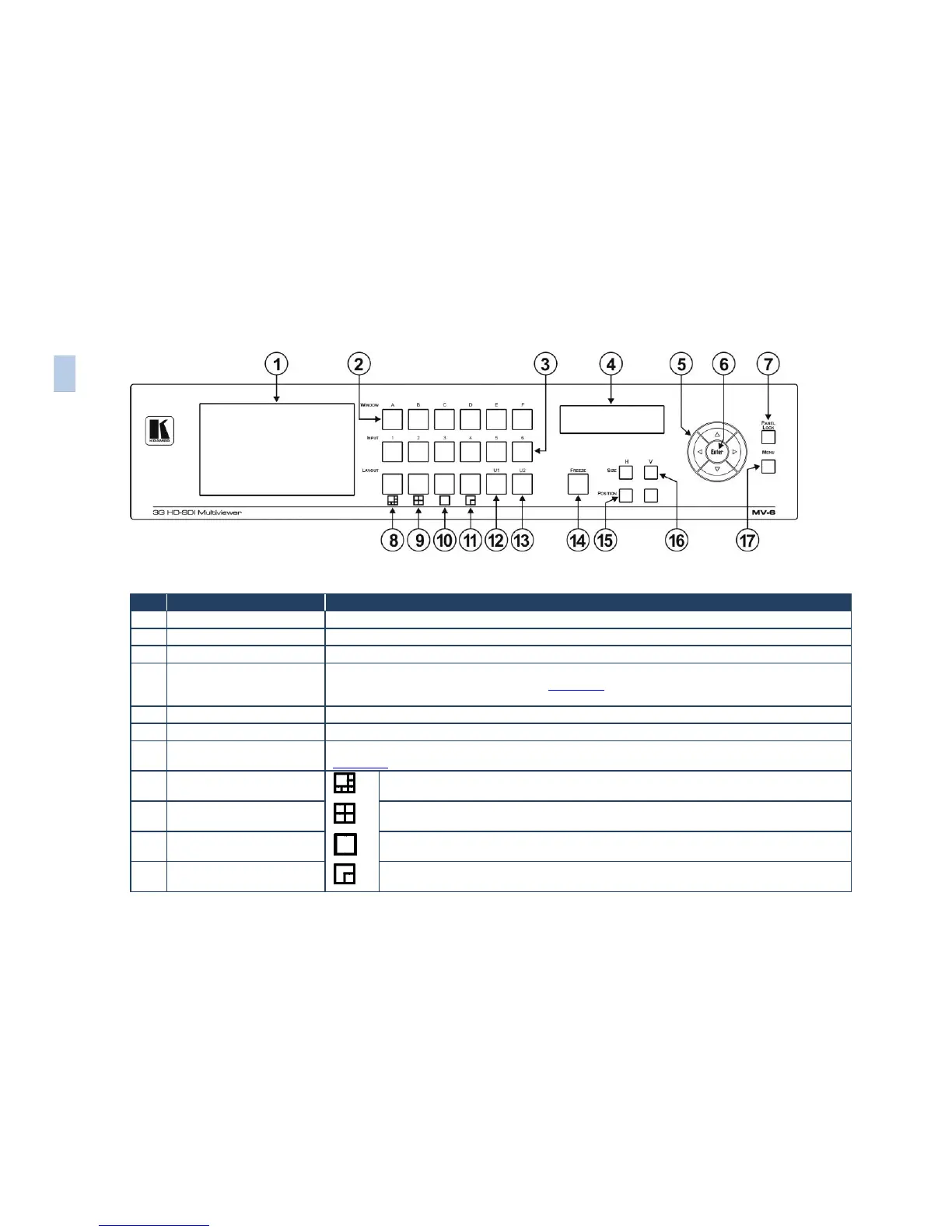

Figure 1: MV-6 3G HD-SDI Multiviewer Front Panel
#
Feature
Function
1
LCD Video Preview Screen
LCD screen to display the output signal
2
WINDOW Buttons (A to F)
Press to select one of the windows
3
INPUT Buttons (1 to 6)
Press to select the active input following selection of an active window (using the WINDOW buttons)
4
LCD Menu 2 Line x 16
Character Window/Input or
Menu Display
During normal operation the Window/Input list is displayed. During menu operations, the
Menu/parameter/values are displayed (see Section 6.9)
5
Menu Navigation Buttons
Press the up (▲), down (▼), left (◄) and right (►) buttons to navigate the menu, parameters or values
6
ENTER Button
Press to enter the menu or accept the parameter/value
7
PANEL LOCK Button
Press and hold to lock the front panel buttons. Press and hold again to unlock the buttons (see
Section 6.7)
8
Screen Layout Button
(6 windows)
Press to display and output all six inputs as per the pattern
9
Screen Layout Button
(4 windows)
Press to display and output four selected inputs in a quad pattern
10
Screen Layout Button
(full screen)
Press to display and output one selected input as a full screen
11
Screen Layout Button
(2 windows)
Press to display and output two selected inputs as per the pattern
6
MV-6 – Overview
