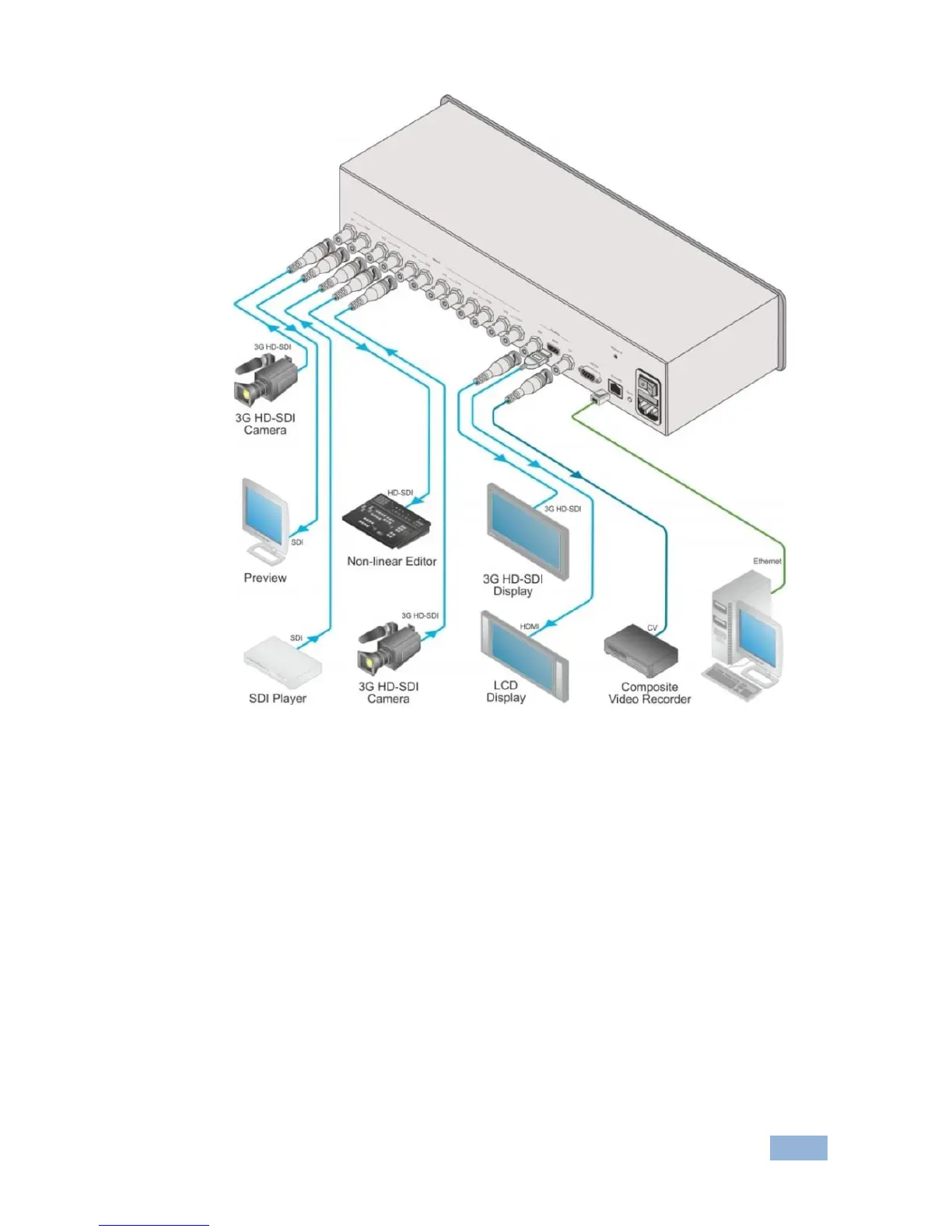

Figure 3: Connecting the MV-6 3G HD-SDI Multiviewer
5.1 Connecting to the RS-232 Port
You can connect to the MV-6 via an RS-232 connection using, for example, a
PC. Note that a null-modem adapter/connection is not required.
To connect to the MV-6 via RS-232:
Connect the RS-232 9-pin D-sub rear panel port on the MV-6 via a 9-wire
straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 need to
be connected) to the RS-232 9-pin D-sub port on your PC
