Kramer MV-6 User Manual

8
MV-6 - Overview

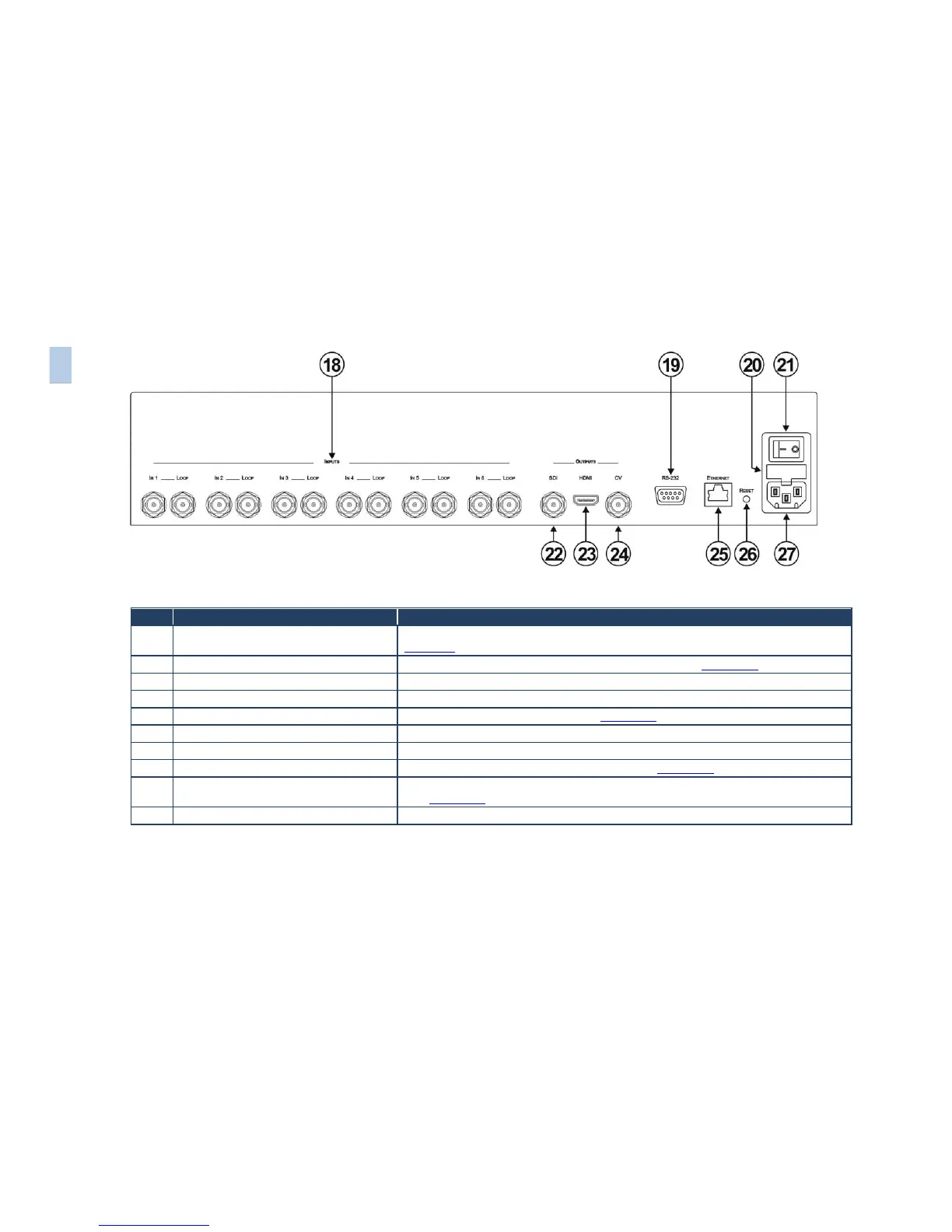

Figure 2: MV-6 3G HD-SDI Multiviewer Rear Panel
#
Feature
Function
18
INPUTS (1 to 6) and Associated BNC
LOOP Outputs (1 to 6)
Connect Inputs to video sources and Loop outputs to loop video acceptors (see
Section 5)
19
RS-232 9-pin D-sub (F) Connector
Connect to the serial port on a PC or remote controller (see Section 5.1)
20
Mains Power Fuse
Fuse for protecting the device
21
Mains Power Switch
Switch for turning the device on or off
22
OUTPUTS SDI BNC Connector
Connect to an SDI video acceptor (see Section 6.9)
23
OUTPUTS HDMI Connector
Connect to an HDMI video acceptor
24
OUTPUTS CV BNC Connector
Connect to a composite video acceptor
25
ETHERNET RJ-45 Connector
Connect to a PC via a LAN for remote control (see Section 5.2)
26
RESET Button
Press and hold while power cycling the device to reset to factory default configuration
(see Section 6.8)
27
Mains Power Connector
Connect to the mains power
8
MV-6 – Overview
