7.3.4 Switch Buttons
The switching configuration can be modified by clicking on the Windows and
Inputs buttons.

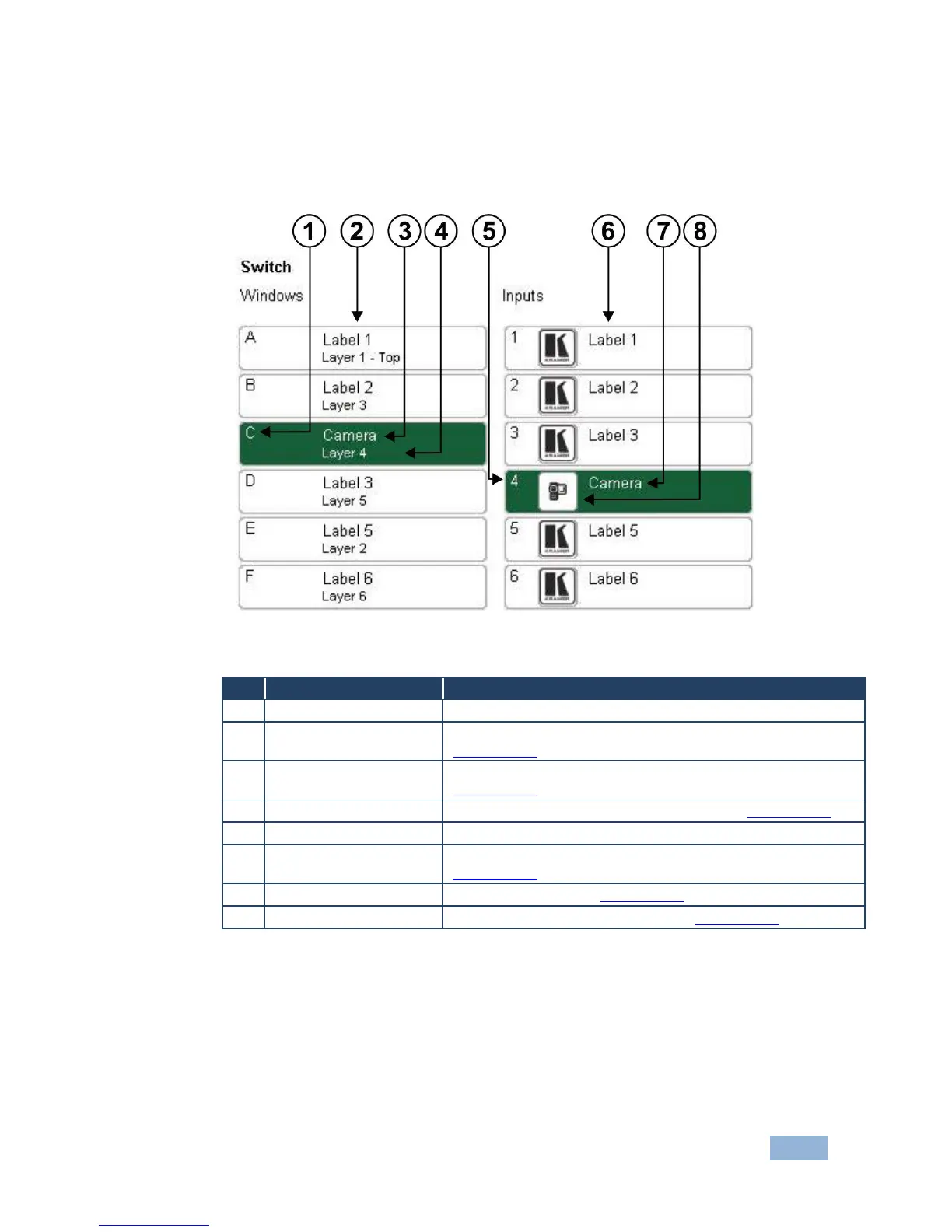

Figure 12: Switch Buttons
#
Description
1
C Window
Window identifier (A to F)
2
Windows Buttons (A to
F)
Press to select a window to assign to an input (see
Section 7.3.8)
3
Camera
The label of the input assigned to this window (see
Section 7.3.8)
4
Layer 4
The layer (Top layer to 6) of this window (see Section 7.3.6)
5
4
Input number (1 to 6)
6
Inputs Buttons (1 to 6)
Press to select an input to assign to a window (see
Section 7.3.8)
7
Camera
Input button label (see Section 7.3.8)
8
Input icon
User assigned icon for this input (see Section 7.3.8)
