7.3.7 Implementing Multiple Actions At Once
To implement multiple actions at once:
1. Press the Take button to put the device in off-line mode.
The button changes to the Update button and the device is in off-line
mode.
2. Perform the required actions, such as, switching and layer order
changes.
3. Press the Update button.
The button changes to the Take button and all changes are implemented.
7.3.8 Switching an Input to a Window
To switch an input to a window:
1. Click on the required window button.
The window is selected and the button changes to a solid color as shown
in Figure 14.

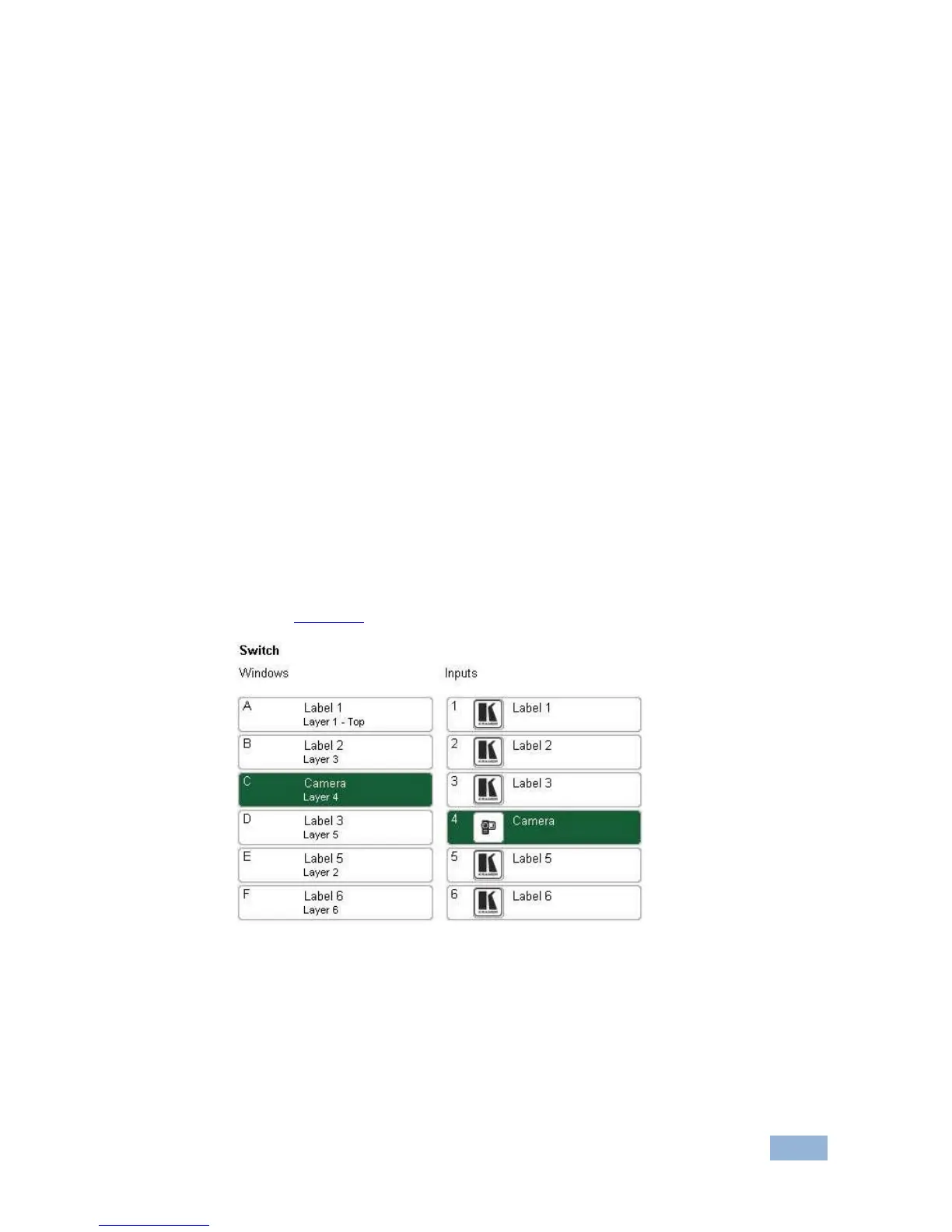

Figure 14: Switching an Input to a Window
2. Click on the required Inputs button.
The input is assigned to the previously selected window and the button
changes to a solid color.
