2.2.2 Clamp-on sensor rail

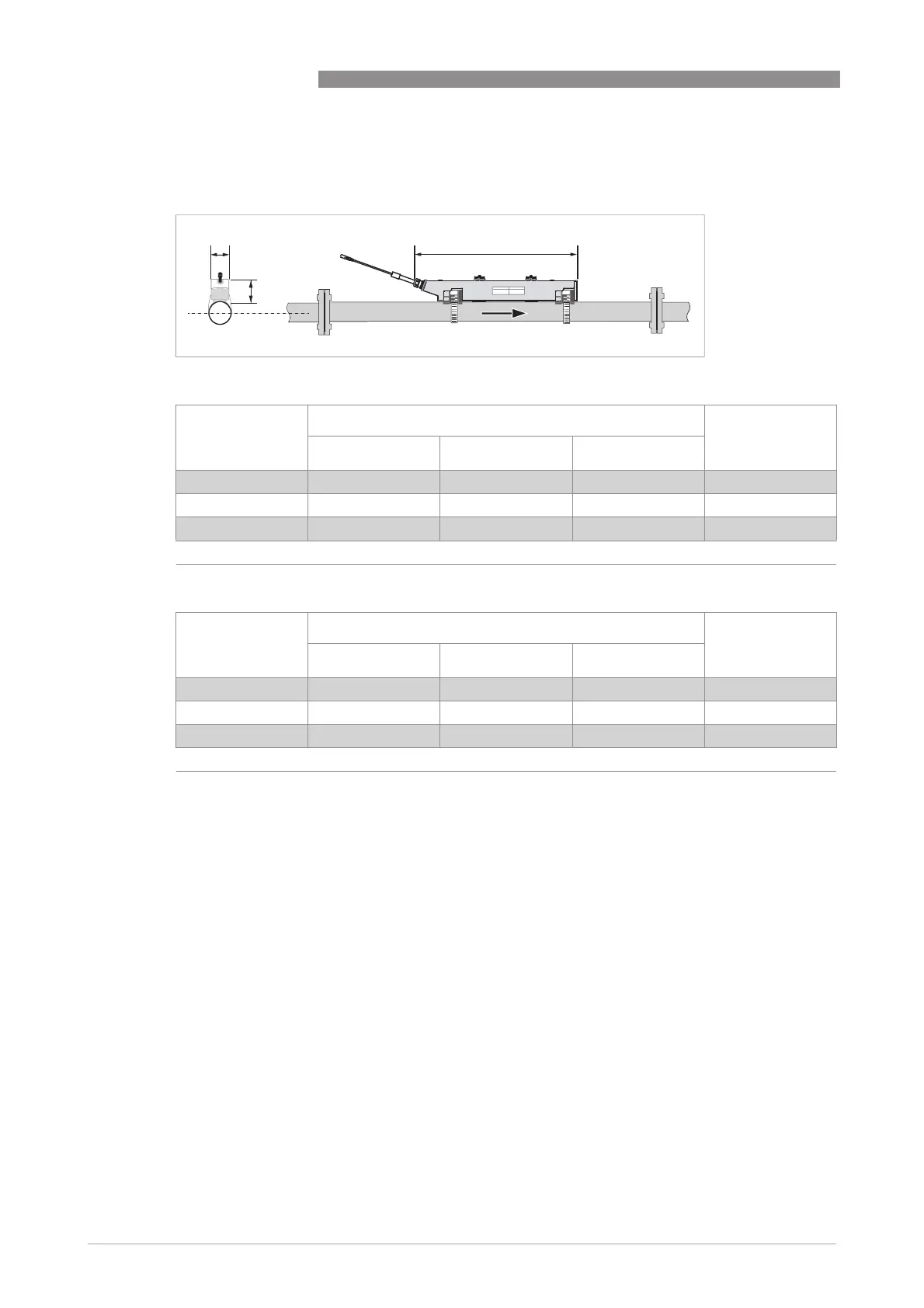

Figure 2-2: Dimensions clamp-on sensor rail(s)
Sensor rail(s) Dimensions [mm] Approx. weight
(without
cable/strip) [kg]
L H W
Small 412 69 50 1.9
Medium 741 69 50 2.6
Large 412 1 69 1 50 1 3.6
Table 2-3: Dimensions and weight clamp-on sensor rail(s) [mm - kg]
1 value for one of the 2 delivered rails
Sensor rail(s) Dimensions [inches] Approx. weight
(without
cable/strip) [lbs]
L H W
Small 16.2 2.7 2.0 4.2
Medium 29.2 2.7 2.0 5.7
Large 16.2 1 2.7 1 2.0 1 7.9
Table 2-4: Dimensions and weight clamp-on sensor rail(s) [inch - lb]
1 value for one of the 2 delivered rails
WL
H
