2.2.3 Mounting plate of field housing
2.2.4 Mounting plate of wall-mounted housing

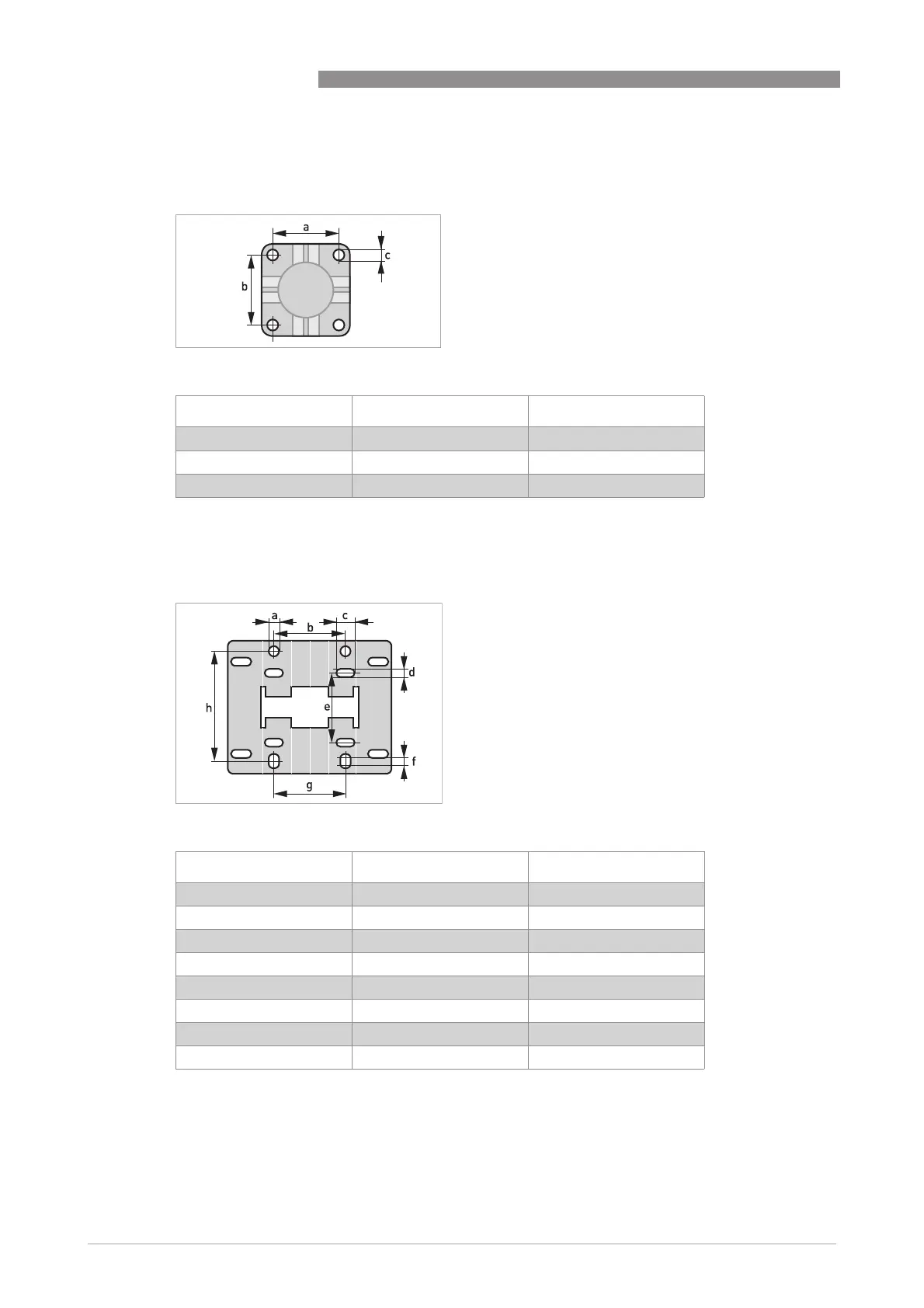

Figure 2-4: Dimensions for mounting plate of field housing
[mm] [inch]
a 72 2.8
b 72 2.8
c Ø9 Ø0.4
Table 2-7: Dimensions in mm and inch
Figure 2-5: Dimensions of mounting plate of wall-mounted housing
[mm] [inch]
a Ø9 Ø0.4
b 64 2.5
c 16 0.6
d 6 0.2
e 63 2.5
f 13 0.5
g 64 2.5
h 98 3.85
Table 2-8: Dimensions in mm and inch
