3.15 Installation for energy measurement
The combination of the measured flow rate and a temperature difference over a heat/cold
producer/consumer can be used to determine the amount of energy used by that device. The
temperature difference can be measured with temperature transmitters, connected to the
signal converter. In this case, the temperature difference is determined by measuring the
temperature before and after the heat/cold producer/consumer.

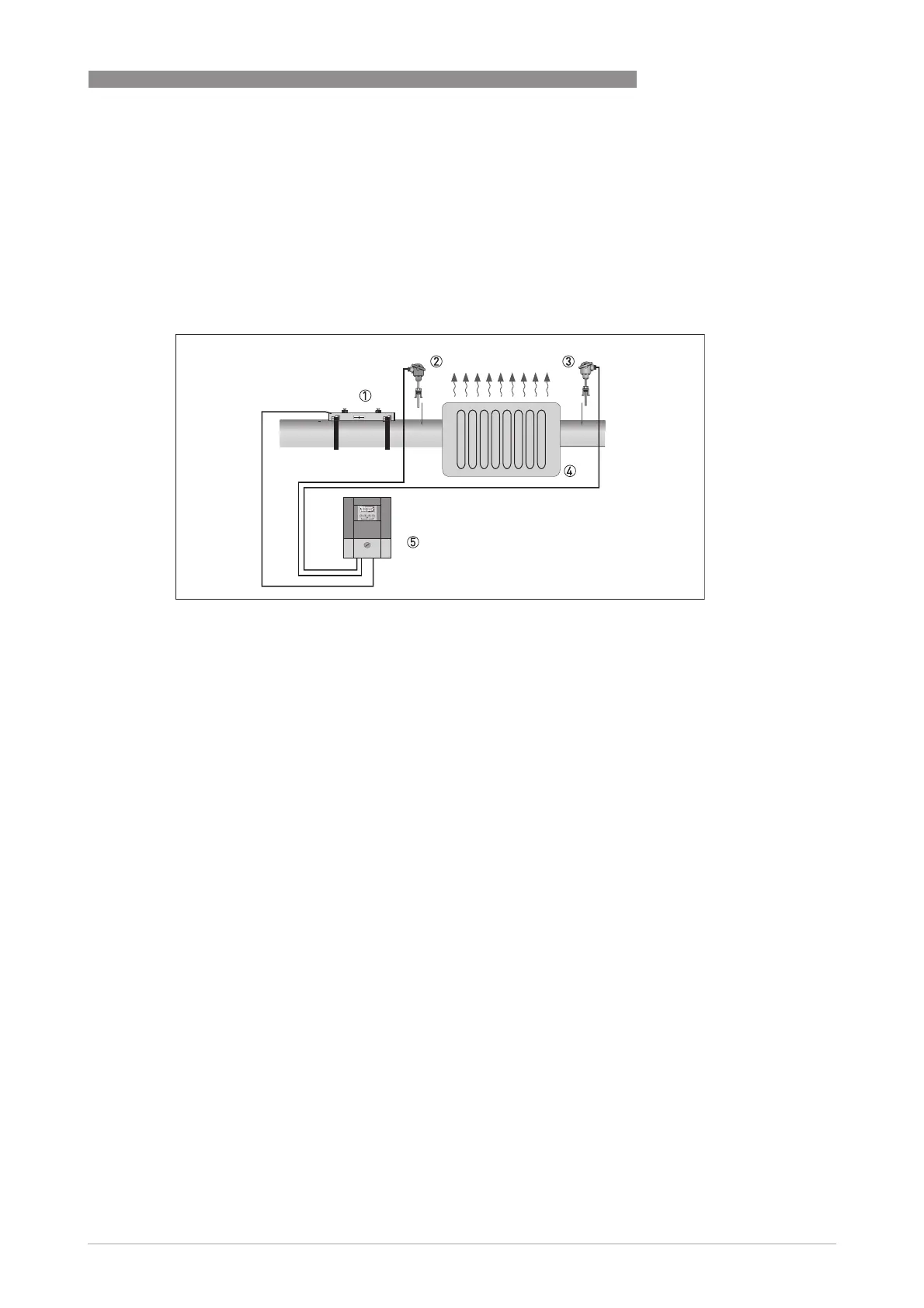

Figure 3-12: Energy measurement of heat/cold producer/consumer
1 Installed small, medium or large sensor rail(s)
2 PT 100 temperature sensor with 4-20 mA transmitter, upstream of the heat/cold producer/consumer
3 PT 100 temperature sensor with 4-20 mA transmitter, downstream of the heat/cold producer/consumer
4 Observed heating or cooling object
5 UFC 300 signal converter
Please find more detailed information in the OPTISONIC 6300 manual.
