INSTALLATION 3
31
OPTISONIC 6300
www.krohne.com09/2020 - 4006413102 - TD OPTISONIC 6300 V2 R02 en
3.5 Installation conditions
3.5.1 Inlet, outlet and recommended mounting area
To perform an accurate flow measurement install the sensor rail(s) more then 10 DN of any
possible downstream flow disturbance (e.g. elbow, valve, header, pump). Please follow the
installation recommendations in the next installation position examples.
Note: especially for XT (eXtended Temperature) versions:

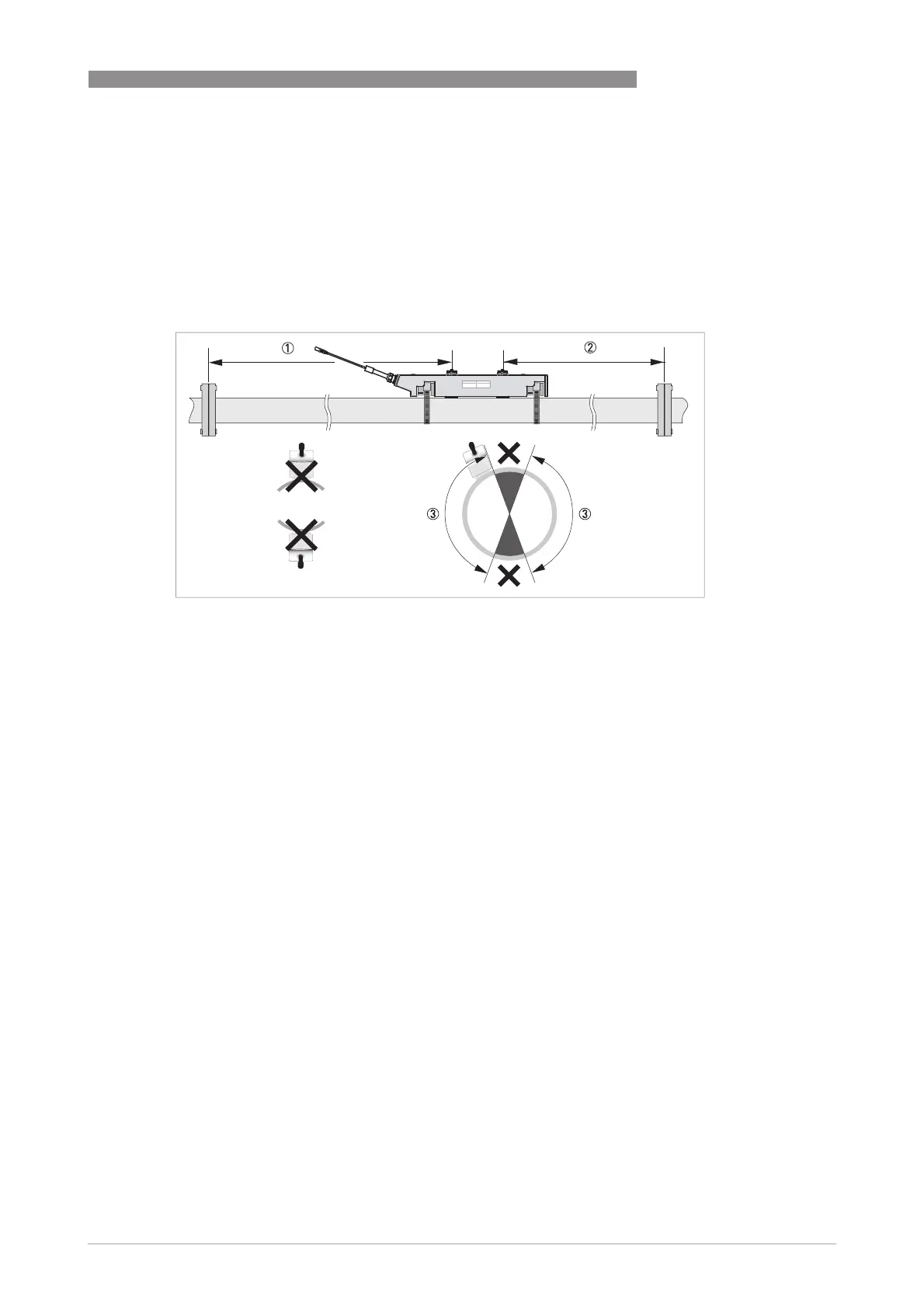

Figure 3-1: Inlet, outlet and recommended mounting area
1 t 10 DN
2 t 5 DN
3 OK, 120°
•
The sensor rail(s) must be installed directly on a clean pipe surface (remove any insulation if
necessary).
•
After installation, the sensor can be completely insulated. The signal cable must be protected
correctly and kept away from the hot pipe surface.
•
Always use the correct Personal Protective Equipment (heat-protection, gloves).
