3.9 T-section
3.10 Open feed or discharge
Install the flowmeter on a lowered section of the pipeline to ensure a full pipe condition through
the meter.
3.11 Position of pump

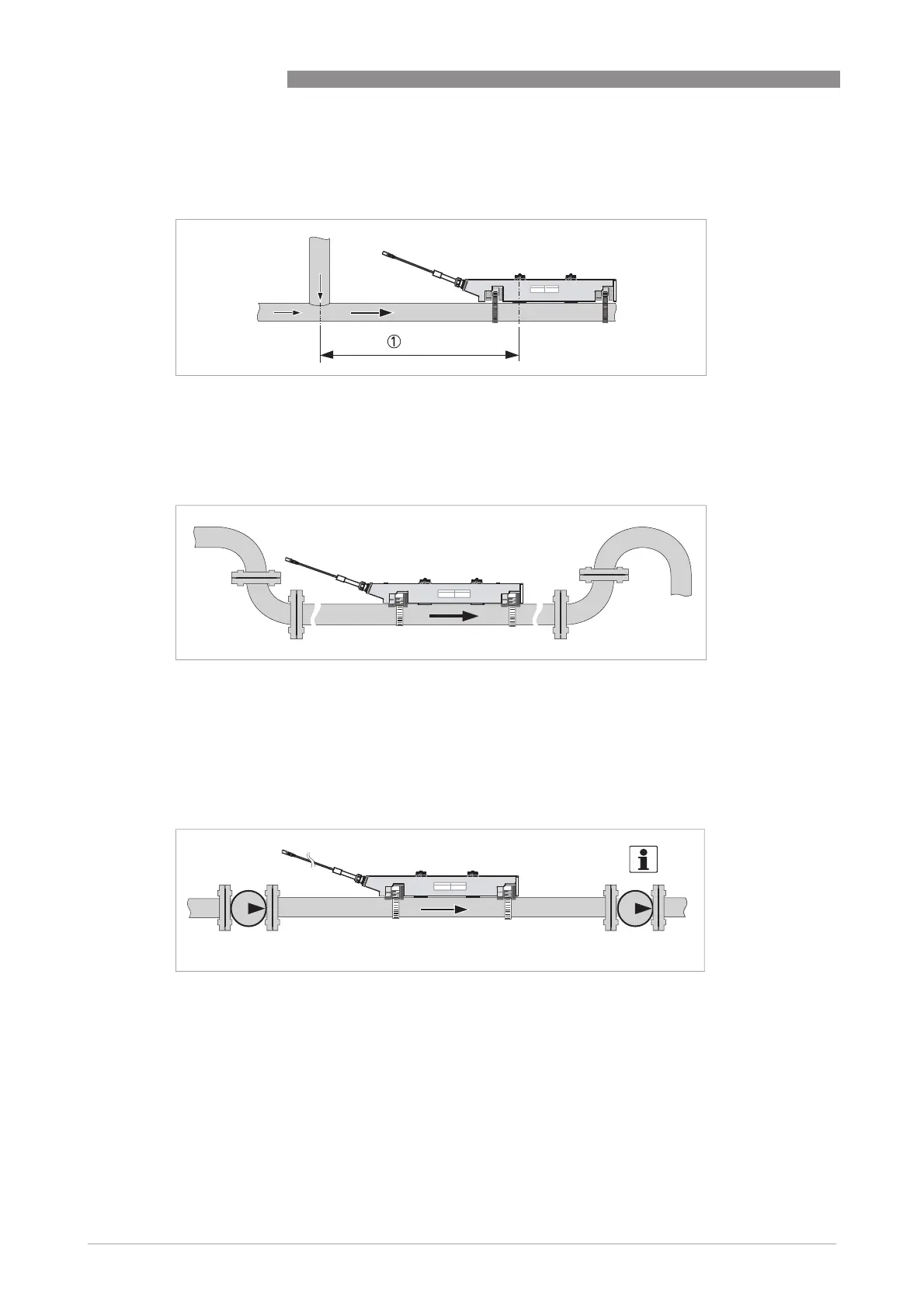

Figure 3-6: Distance behind a T-section
1 t 20 DN
Figure 3-7: Open feed or discharge
Figure 3-8: Position of pump
NOTE!
Recommended position to install a flowmeter is downstream a pump (on a position where the
flow disturbances of the pump are resolved)
A clamp-on flowmeter can be installed in the suction line of a pump if there is no cavitation in the
pipeline system.
