4.4.1 Signal converter power supply connections
Field version

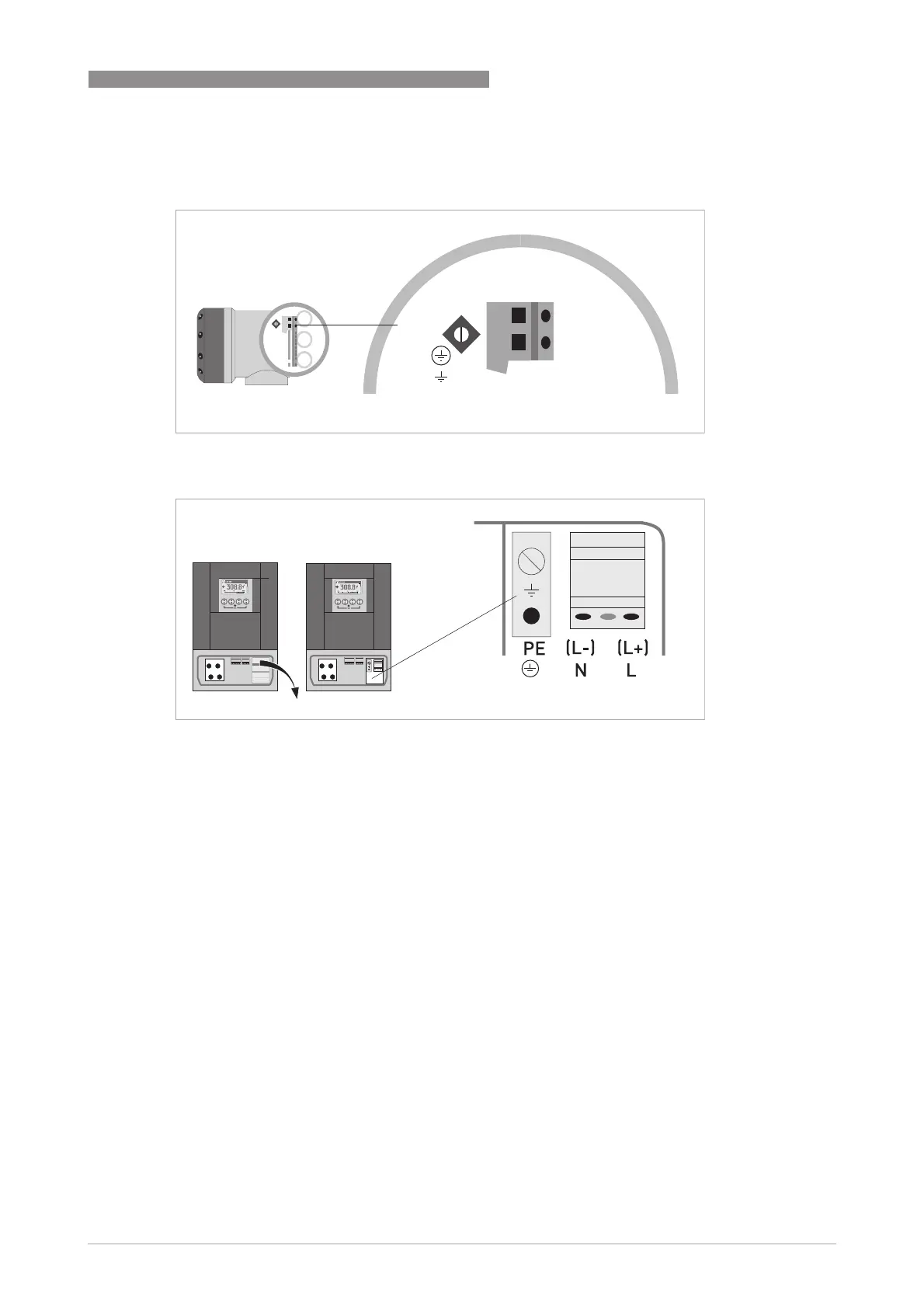

Figure 4-5: Signal converter field version, power supply connections
Wall version
Figure 4-6: Signal converter wall version, power supply
PE (L+) / L
(L-) / N
