3 INSTALLATION
38
OPTISONIC 6300
www.krohne.com 09/2020 - 4006413102 - TD OPTISONIC 6300 V2 R02 en
3.16 Installation of the converter
3.16.1 Pipe mounting
1 Fix the signal converter to the pipe.
2 Fasten the signal converter using standard U-bolts and washers.
3 Tighten the nuts.
Assembly materials and tools are not part of the delivery. Use the assembly materials and tools
in compliance with the applicable occupational health and safety directives.
Always use the supplied original signal cable in its ordered length. The cable lengths and cable
extension (splitter) boxes are availble to install the converter at a maximum cable distance of 30
meters of the sensor rails.

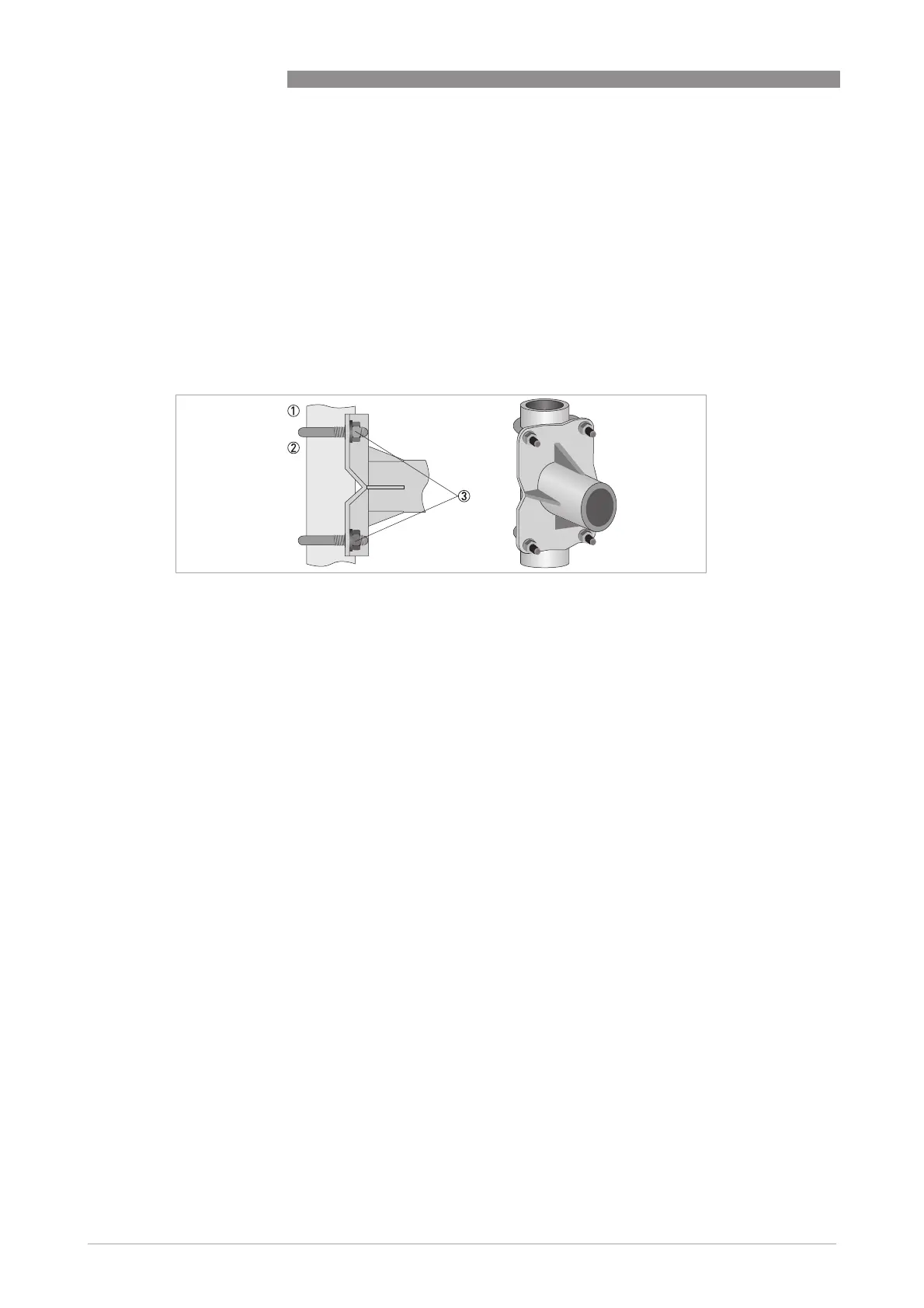

Figure 3-13: Pipe mounting of the field housing
