ELECTRICAL CONNECTIONS 4
49
OPTISONIC 6300
www.krohne.com09/2020 - 4006413102 - TD OPTISONIC 6300 V2 R02 en
4.4.3 Example of connecting the cable extension (splitter) box
The signal cable for the small and medium rails can be extended by using the cable (splitter) box
with a single signal cable extension. The version for the large sensors in dual-path configuration
has two signal cables from the up and down rail which are combined to a two-wire signal cable
since the ultrasonic flow converter has two signal cable entries.

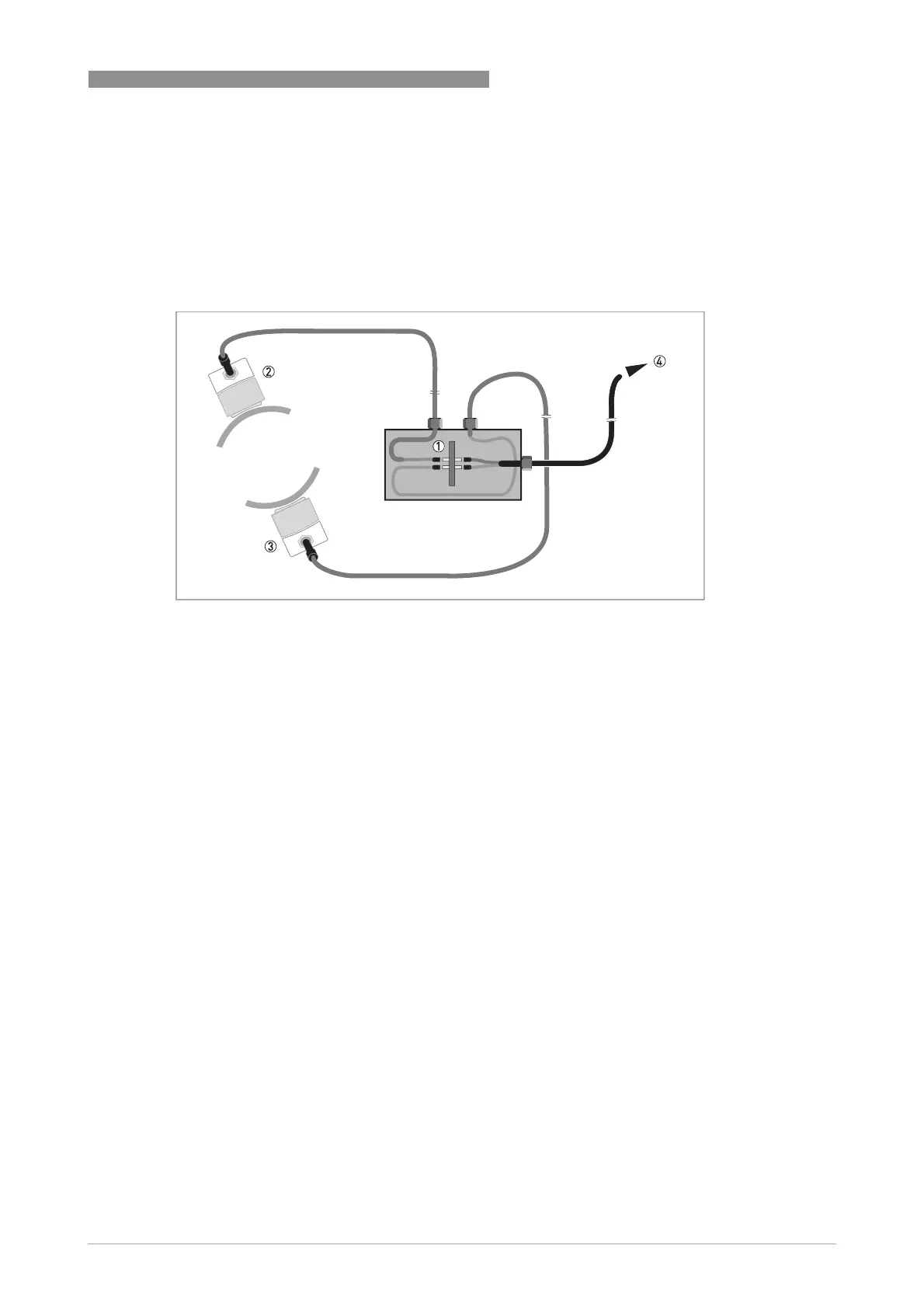

Figure 4-12: Example of large sensor rail connections with cable (splitter) box
1 Cable (spitter) box connections
2 Installed UP rail
3 Installed DOWN rail
4 Extension cable to UFC 300 signal converter
