ELECTRICAL CONNECTIONS 4
43
OPTISONIC 6300
www.krohne.com09/2020 - 4006413102 - TD OPTISONIC 6300 V2 R02 en
4.3 Electrical connections signal converter
The connection of the flow sensor(s) to the signal converter depends on the version of the signal
converter ordered.
Field version

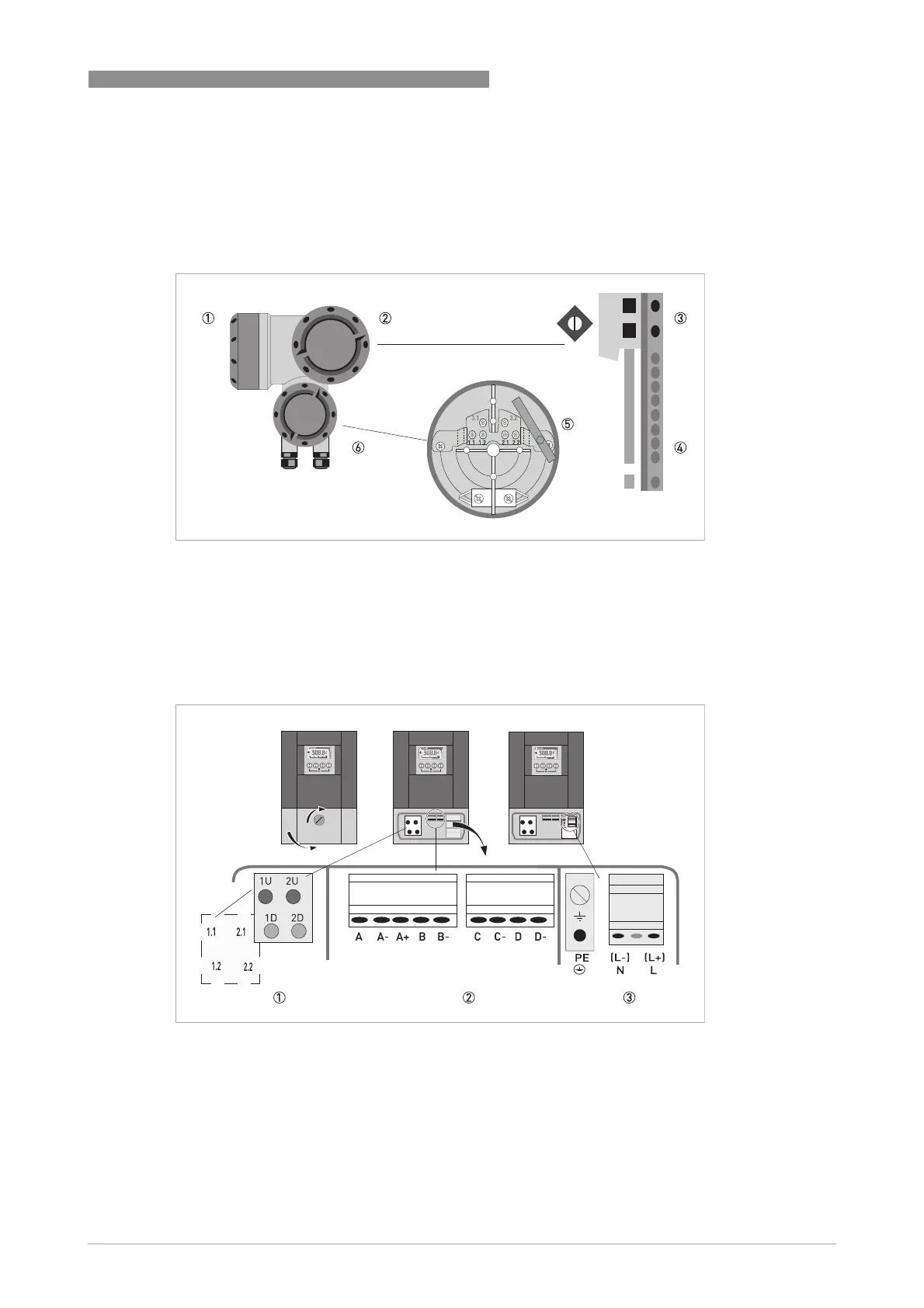

Figure 4-2: Construction of field version
1 Cover, electronics compartment
2 Cover, terminal compartment for power supply and inputs/outputs
3 Connectors for power
4 Connectors for inputs/outputs
5 Connectors for sensor cable
6 Cover, sensor terminal compartment
Wall version
Figure 4-3: Construction of wall version
1 Signal cable for sensors
2 Communication I/O
3 Power supply: 24 VAC/DC or 100...230 VAC
This is a Class A product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
