3.8 Bends

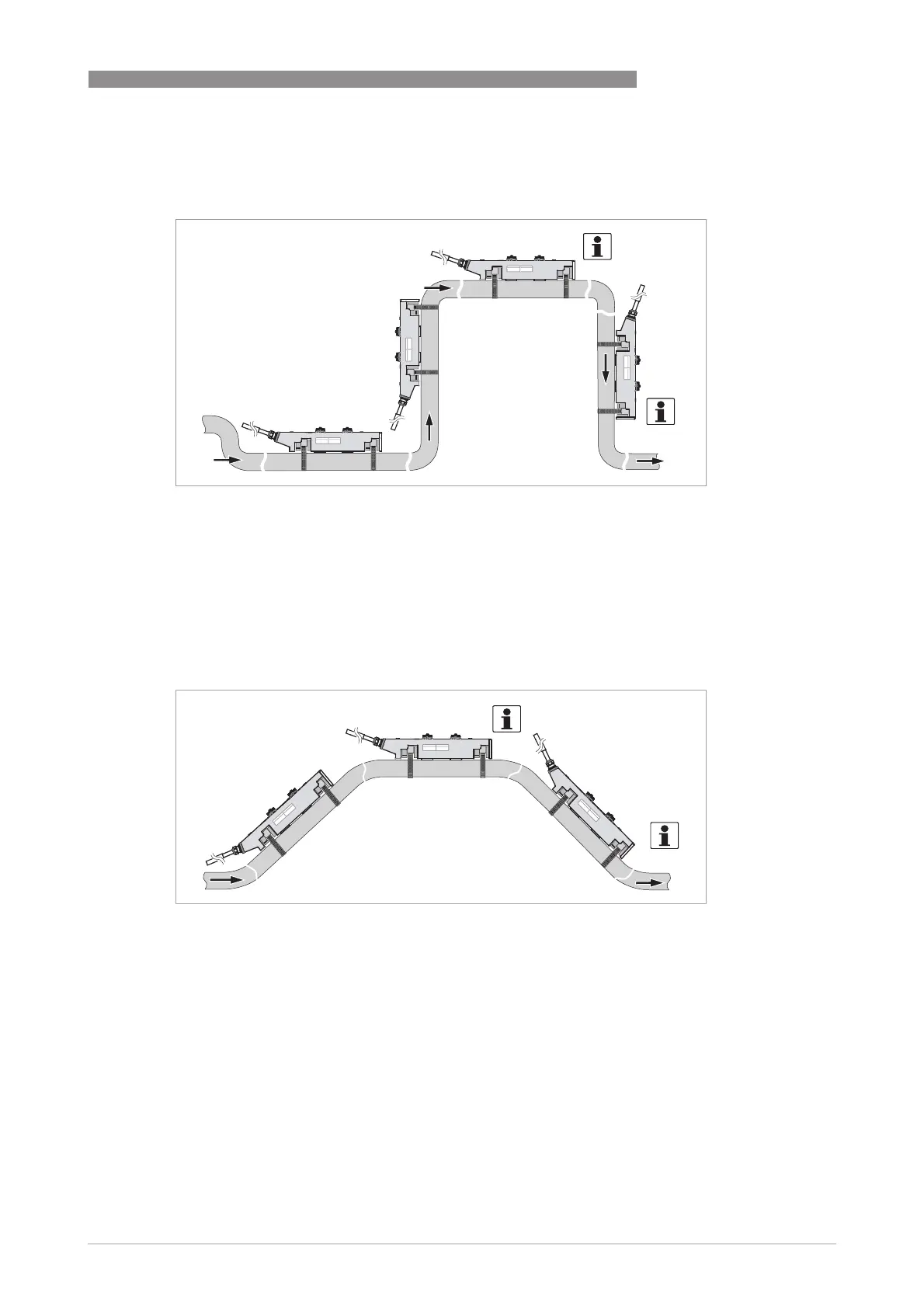

Figure 3-4: Installation in bending pipes (90°)
NOTE!
Recommended installation positions are at a lowered or ascending section of the pipeline
installation. Installation at the highest point will enlarge the risk of flowmeter malfunction,
because of air/gas bubbles.
Vertical installation in combination with an open surcharge has to be avoided.
Vertical installation with a controlled back-pressure is possible.
Figure 3-5: Installation in bending pipes (45°)
NOTE!
Vertical installation on a descending slope in the pipeline is only recommended when the back-
pressure is controlled.
