4 ELECTRICAL CONNECTIONS
48
OPTISONIC 6300
www.krohne.com 09/2020 - 4006413102 - TD OPTISONIC 6300 V2 R02 en
Corresponding cable connections
Construction of console (W-version)

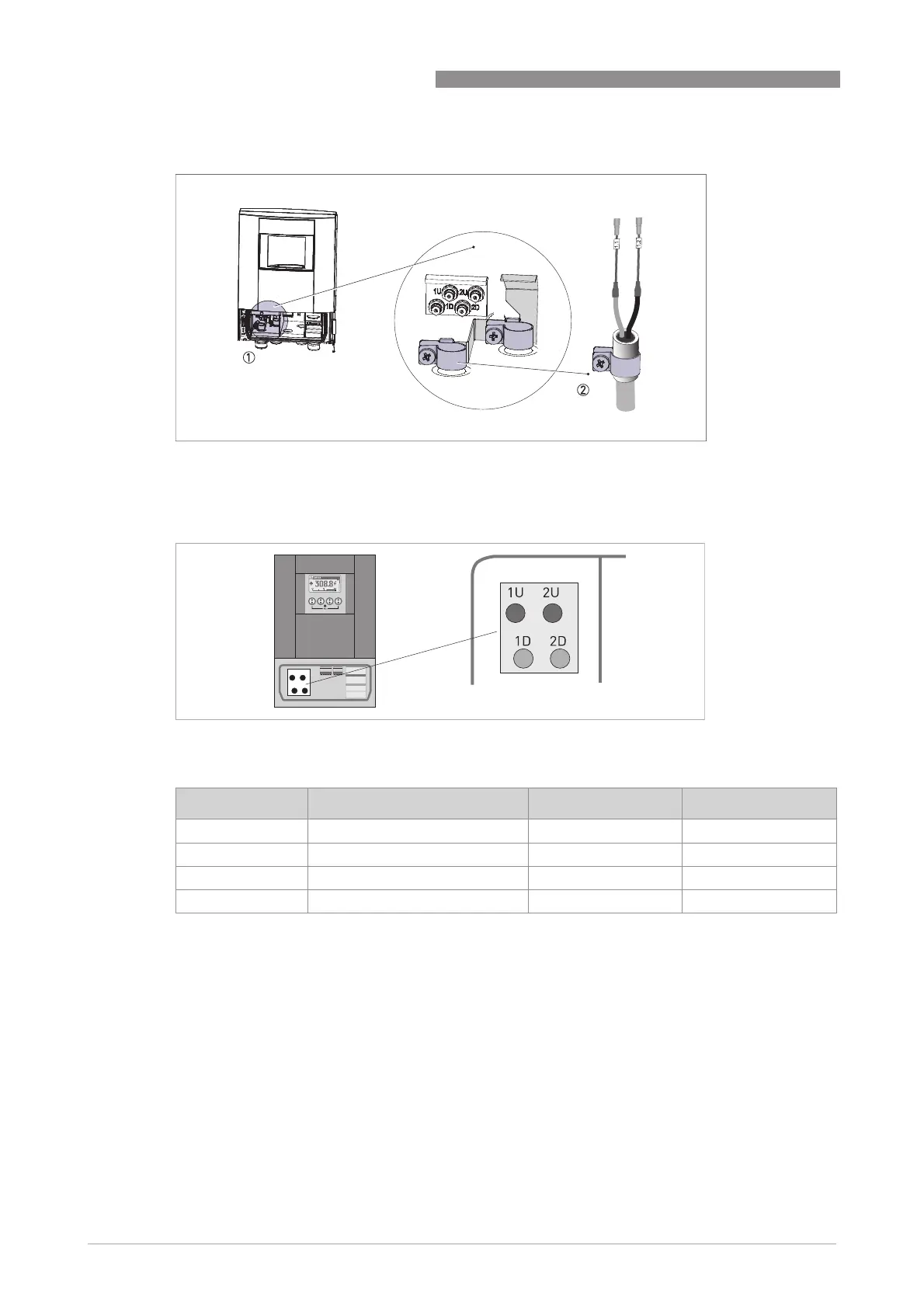

Figure 4-10: Inserting cable and secure with clamp on shielding bush
1 Connection compartiment sensor cable(s)
2 Grounding clamp with metal shielding bush of sensor cable
Wall version
Figure 4-11: Connect signal cable
Configuration Transducer
U1 U or 1.1 / Blue 1 path / 1 pipe Upstream
U2 U or 1.2 / Blue 2 path / 2 pipes Upstream
D1 D or 2.1 / Green 1 path / 1 pipe Downstream
D2 D or 2.2 / Green 2 path / 2 pipes Downstream
