Corresponding cable connections
Cable insert and usage connector tool

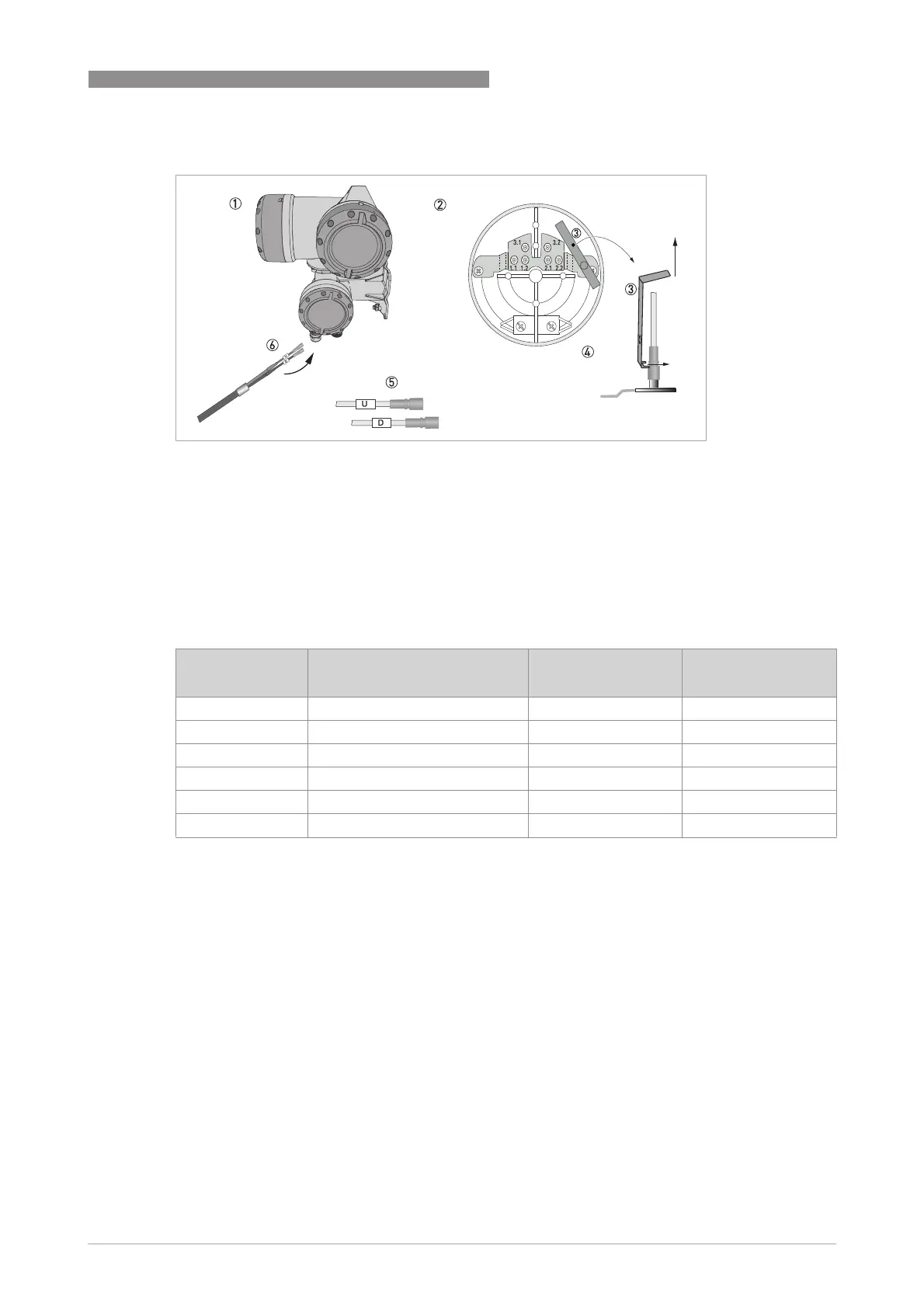

Figure 4-9: Construction of field version
1 Signal converter
2 Open connection terminal
3 Tool for releasing connectors
4 How to use the release tool
5 Marking on the cables
6 Insert cable(s) into connection terminal
Connections
converter
Marking / color cable Configuration Transducer
1.1 U or 1.1 / Blue 1 path / 1 pipe Upstream
1.2 D or 1.2 / Green 1 path / 1 pipe Downstream
2.1 U or 2.1 / Blue 2 path / 2 pipes Upstream
2.2 D or 2.2 / Green 2 path / 2 pipes Downstream
3.1 not connected - -
3.2 not connected - -
