8.6 Adjusting the hydraulic system

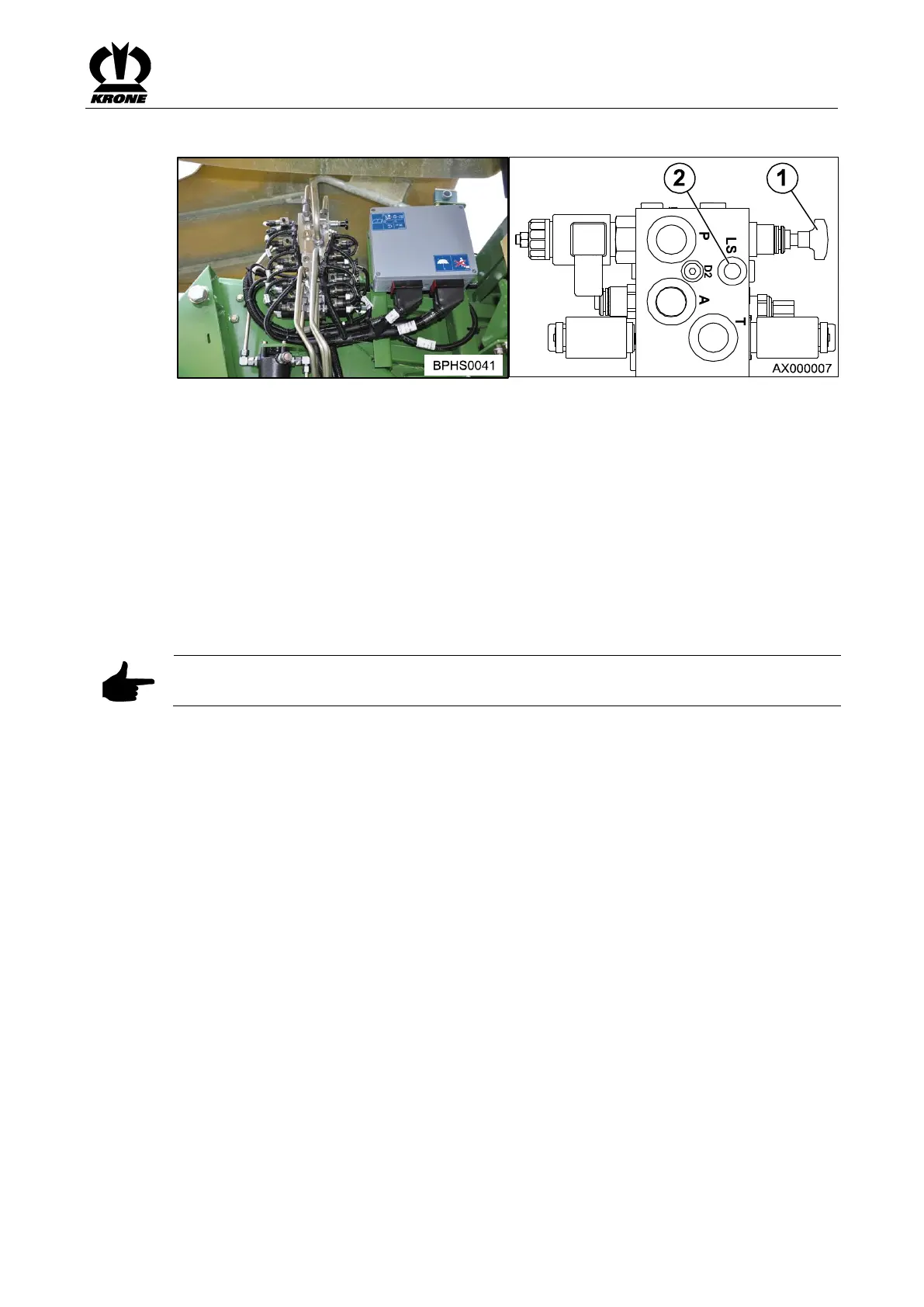

Pos: 97.38 /BA/ Wartung/Load- Sensing/Großp ackenpresse/Bil d Load-Sensi ng Anschluss HS Baureihe @ 64\mod_13002 78753983_78. docx @ 58278 9 @ @ 1
Fig.
Pos: 97.39 /BA/Ma schinenbeschr eibung/BiG PAc k/Handlungsa nweisung: H ydrauliksysteme Tra ktor-Masc hine drucklos / M aschine stillse tzen und sichern @ 274\ mod_1404364138 167_78.docx @ 2 065053 @ @ 1
• Switch the control units on the tractor to float position.
• Depressurise the hydraulic system on the tractor and the machine.
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 97.40 /Übersc hriften/Überschrif ten 3/A-E/ B/Betrieb der M aschine ohne LS (Load-Se nsing-Anschluss) @ 91\mod_ 1326699351886_7 8.docx @ 780 162 @ 3 @ 1
8.6.1 Operating the Machine without LS (Load-Sensing Connection)
Pos: 97.41 /BA/ Wartung/Load- Sensing/Systems chraube (1) g anz herausdre hen @ 63\mod _1299739012 796_78.doc x @ 575371 @ @ 1
Unscrew the system screw (1) as far as it will go for:
• Tractor with an open (constant-current) hydraulic system (for additional information, please
refer to the tractor manufacturer's operating instructions)
• Tractors with LS pump and non-activated load-sensing system
Pos: 97.42 /BA/ Wartung/Load- Sensing/Hinw eis Einstellung ist vom Werk aus g egeben @ 63\ mod_129973 8968068_78.doc x @ 575344 @ @ 1
Note
This adjustment is set when the unit leaves the factory.
Pos: 97.43 /Übersc hriften/Überschrif ten 3/A-E/ B/Betrieb der M aschine über L S (Load-Sensing- Anschluss) @ 91\mod_132 6699464848_ 78.docx @ 780 190 @ 3 @ 1
8.6.2 Operating the Machine via LS (Load-Sensing Connection)
Pos: 97.44 /BA/ Wartung/Load- Sensing/Systems chraube (1) g anz hereindre hen @ 63\mo d_129973892398 1_78.docx @ 5 75317 @ @ 1
Screw the system screw (1) as far as it will go for:
• Tractors with closed (constant pressure or load sensing) Hydraulic system (For more
information, please refer to the tractor manufacturer's operating instructions)
• Tractors with LS pump and message line that is connected
